Backyard Creations FC-30-MN - Page 8

SKU 272-0095/FC-30-MN
08
© 2018 Jack-Post Corporation 09/18

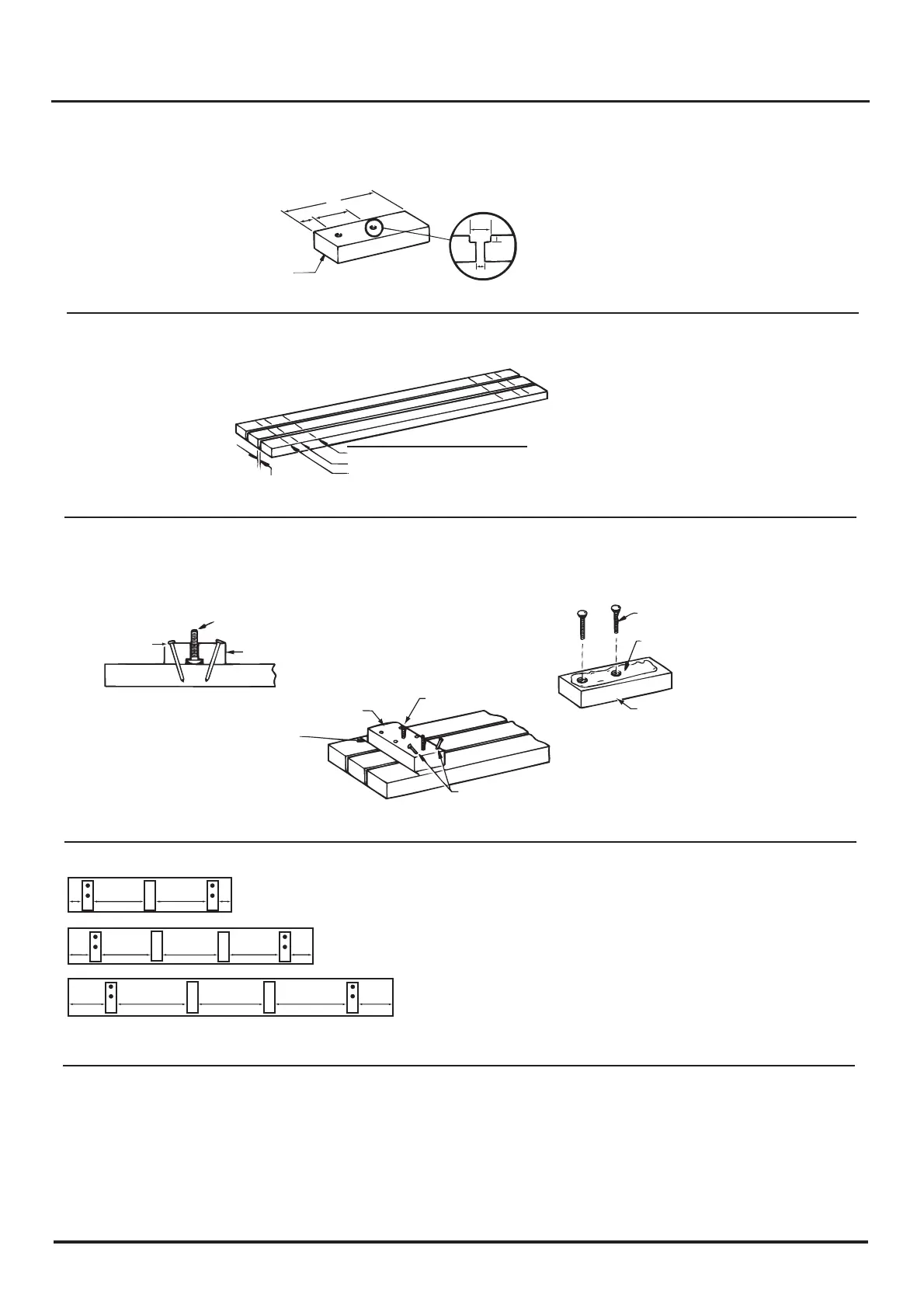

SEAT
STEP 1 Select four 10" x 2" x 4" cleats. Locate and drill two 1/4" diameter holes in each cleat, as shown.
Counterbore each of the holes with a 5/8" bit to a depth of approximately 1/8". This will allow clearance for the carriage bolts in STEP 4.
1
1
/2"
5
/8"
1
/8"
1
/4"
4"
10"
WHEN INSTALLING
ASSEMBLED SEAT
THIS EDGE OF CLEAT
FACES TABLE TOP
STEP 2 Layout the three seat boards when using 2" x 4"’s (or) two boards when using 2" x 6"’s), best side down on a atsurface,
maintaining a 1/4" spacing between boards. Measure and mark the following distance from both ends as follows:
8' SEAT – 10" FROM END
6' SEAT – 6" FROM END
4' SEAT – 4" FROM END
DRAW ONE LINE
AT BOTH ENDS OF TABLE
MAINTAIN 1/4" SPACE
BETWEEN ALL BOARDS
STEP 3 Insert two 3-1/4" carriage bolts into counterbored holes in cleat.
STEP 4 Nail cleat to seat boards, “trapping” head of carriage bolt between cleat and seat boards,
as shown. Be certain to coat mating surface with glue.
WOODEN CLEAT
SEAT
NAIL
3-1/4" CARRIAGE BOLT
GLUE
3-1/4" CARRIAGE BOLT
WOODEN CLEAT
3-1/4" CARRIAGE BOLT
POSITION EDGE OF CLEAT ON MARKED LINE
NAILS
WOODEN CLEAT
MARKED LINE
STEP 5 Repeat STEPS 2 - 4 at other end of seat boards.
4" 14
3
/4" 14
3
/4" 4"
6" 15" 16" 15" 6"
10" 21" 20" 21" 10"
FOR 8' TABLE
FOR 6' TABLE
FOR 4' TABLE
STEP 6 Locate the remaining cleats as shown below.
STEP 7 Repeat STEPS 1 - 6 for second bench.
