Parts Identification

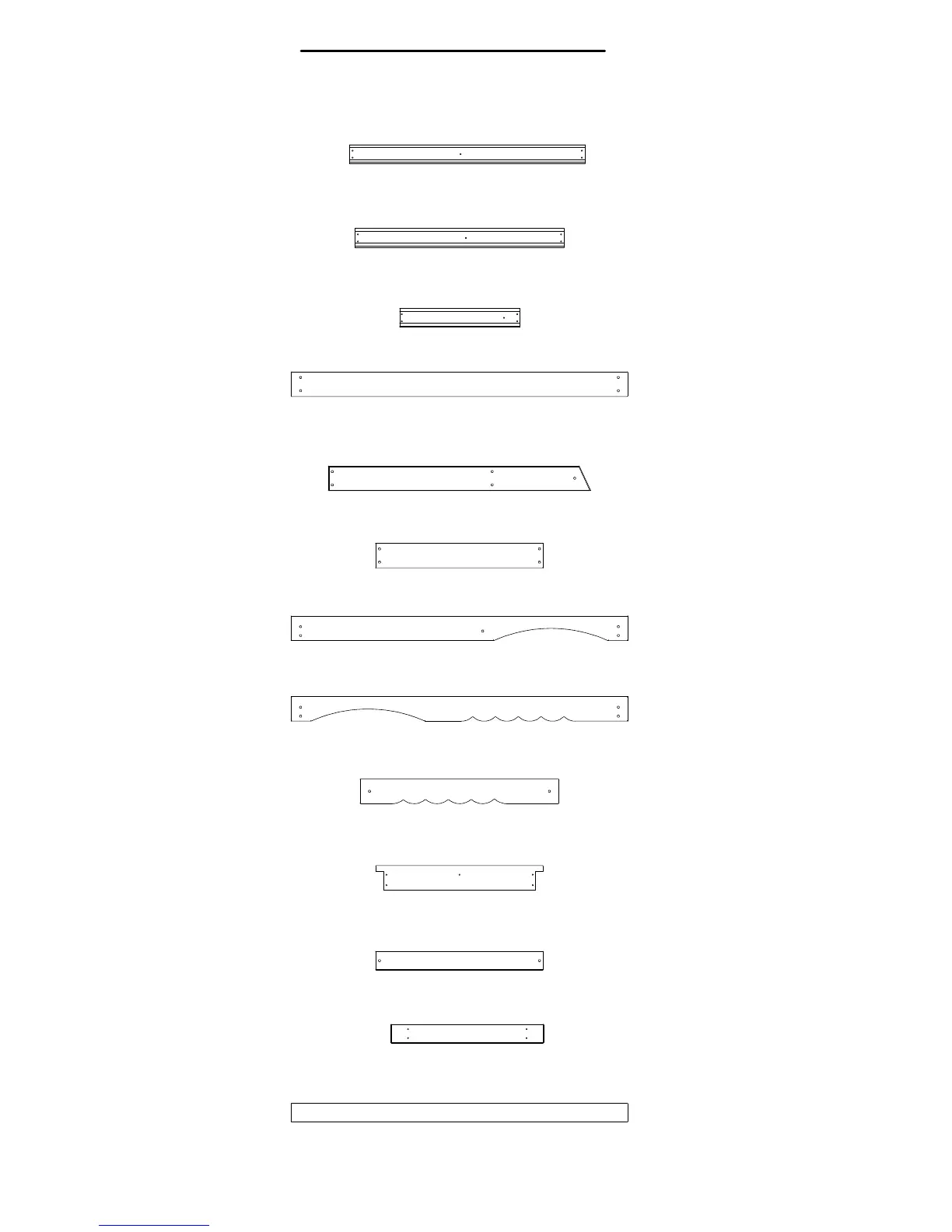

Wood Components
(NOT TO SCALE)
L3 - GROUND BOARD - W101602
5/8"x4 3/8"x46 7/8" (16x112x1191)
(1)
L5 - GROUND BOARD - W100686
5/8"x4 3/8"x30" (16x112x762)
(1)
L6 - ARCHED RAIL - W100694
5/8"x4 3/8"x60 1/8" (16x112x1528)
(1)
L7 - ARCHED SCULPTURED RAIL - W100695
5/8"x4 3/8"x60 1/8" (16x112x1528)
(1)
L8 - SCULPTURED RAIL - W101240
5/8"x4 3/8"x35 1/2" (16x112x902)
(1)
L9 - END FLOOR BOARD - W102863
5/8"x4 3/8"x29 7/8" (16x112x760)
(2)
M3 - TARP SUPPORT - W100692
5/8"x3 3/8"x60 1/8" (16x86x1528)
(2)
M1 - PICKET RAIL - W103760
5/8"x3 3/8"x30" (16x86x762)
(1)
K9-5 - WALL BOARD - W101259
3/8"x3 3/8"x21 3/8" (11x86x544)
(6)
L2 - GROUND BOARD - W100684
5/8"x4 3/8"x60 1/8" (16x112x1528)
(2)
K9-3 - WALL BOARD - W101257
3/8"x3 3/8"x42" (11x86x1068)
(2)
K9-4 - WALL BOARD - W101239
3/8"x3 3/8"x37 3/8" (11x86x950)
(2)
M2 - BENCH SEAT - W104044
5/8"x3 3/8"x27 3/8" (16x86x694)
(2)
