Backyard Discovery 55006 - Page 9

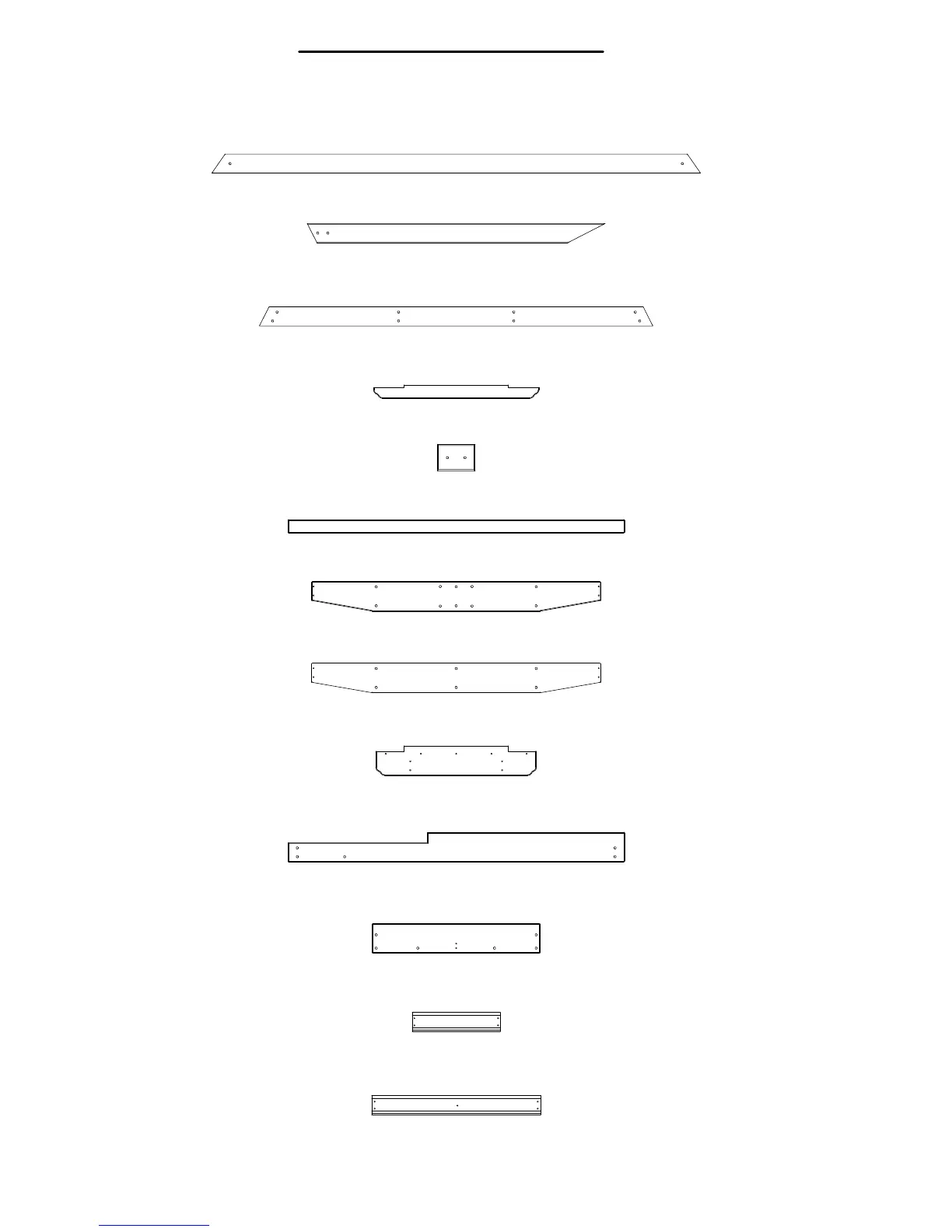

Parts Identification
Wood Components
(NOT TO SCALE)
J1 - WINDOW LEDGE - W100709
1"x2 3/8"x29 1/2" (24x60x750)
(1)
J2 - END FLOOR CLEAT - W100710
1"x2 3/8"x3 3/8" (24x60x86)
(4)
J3 - FLOOR JOIST - W100984
1"x2 3/8"x60 1/8" (24x60x1528)
(1)
K3 - SERVING BOARD - W101605
5/8"x5 1/4"x28 3/4" (16x134x729)
(1)
K4 - FLOOR RAIL - W103700
5/8"x5 1/4"x60 1/8" (16x134x1528)
(1)
K5 - FLOOR RAIL - W103768
5/8"x5 1/4"x30" (16x134x762)
(1)
K1 - ROOF SWING BEAM SUPPORT - W100682
5/8"x5 1/4"x51 5/8" (16x134x1310)
(1)
K2 - ROOF SUPPORT - W100683
5/8"x5 1/4"x51 5/8" (16x134x1310)
(1)
K9-2 - WALL BOARD - W100712
3/8"x3 3/8"x30 1/4" (11x86x768)
(4)
K9-1 - WALL BOARD - W100713
3/8"x3 3/8"x15 3/4" (11x86x400)
(6)
H82 - MONKEY BAR GROUND BOARD - W100994
1"x3 3/8"x70 3/8" (24x86x1786)
(1)
H80 - GROUND BOARD - W100990
1"x3 3/8"x87 3/8" (24x86x2218)
(1)
H81 - MONKEY BAR BRACE - W100993
1"x3 3/8"x53 1/4" (24x86x1352)
(2)
