K4 - FLOOR RAIL - W103700
5/8"x5 1/4"x60 1/8" (16x134x1528)
(1)
BOLT WH
5/16x2
(8)
WASHER
LOCK EXT
8x19
(8)
T-NUT 5/16 (8)

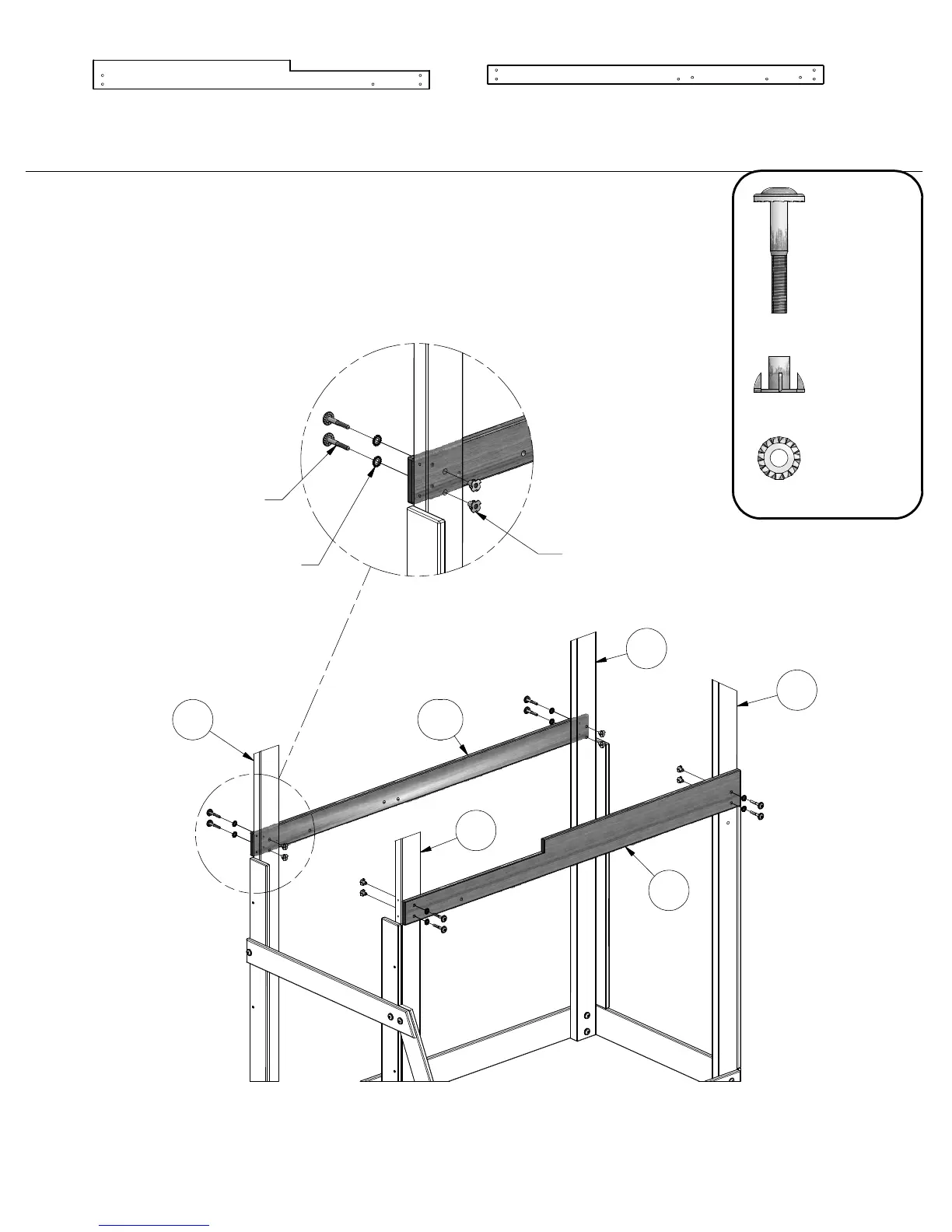

STEP 5
ATTACH M13 BOARD TO THE E1 BOARD AND THE E2 BOARD USING HARDWARE
SHOWN THROUGH PRE DRILLED HOLES. NOTE THE ORIENTATION OF HOLES THAT
WILL BE USED LATER IN THE M13 BOARD.
ATTACH K4 BOARD TO E3 BOARD AND E2 BOARD USING HARDWARE AS SHOWN
THROUGH PRE DRILLED HOLES.
BOLT WH 5/16x2
(8 PLCS)
WASHER LOCK EXT 8x19
(8 PLCS)
T-NUT 5/16
(8 PLCS)
M13
E1
E3
K4
E2
E2
M13 - FLOOR RAIL - W103774
5/8"x3 3/8"x60 1/8" (16x86x1528)
(1)
