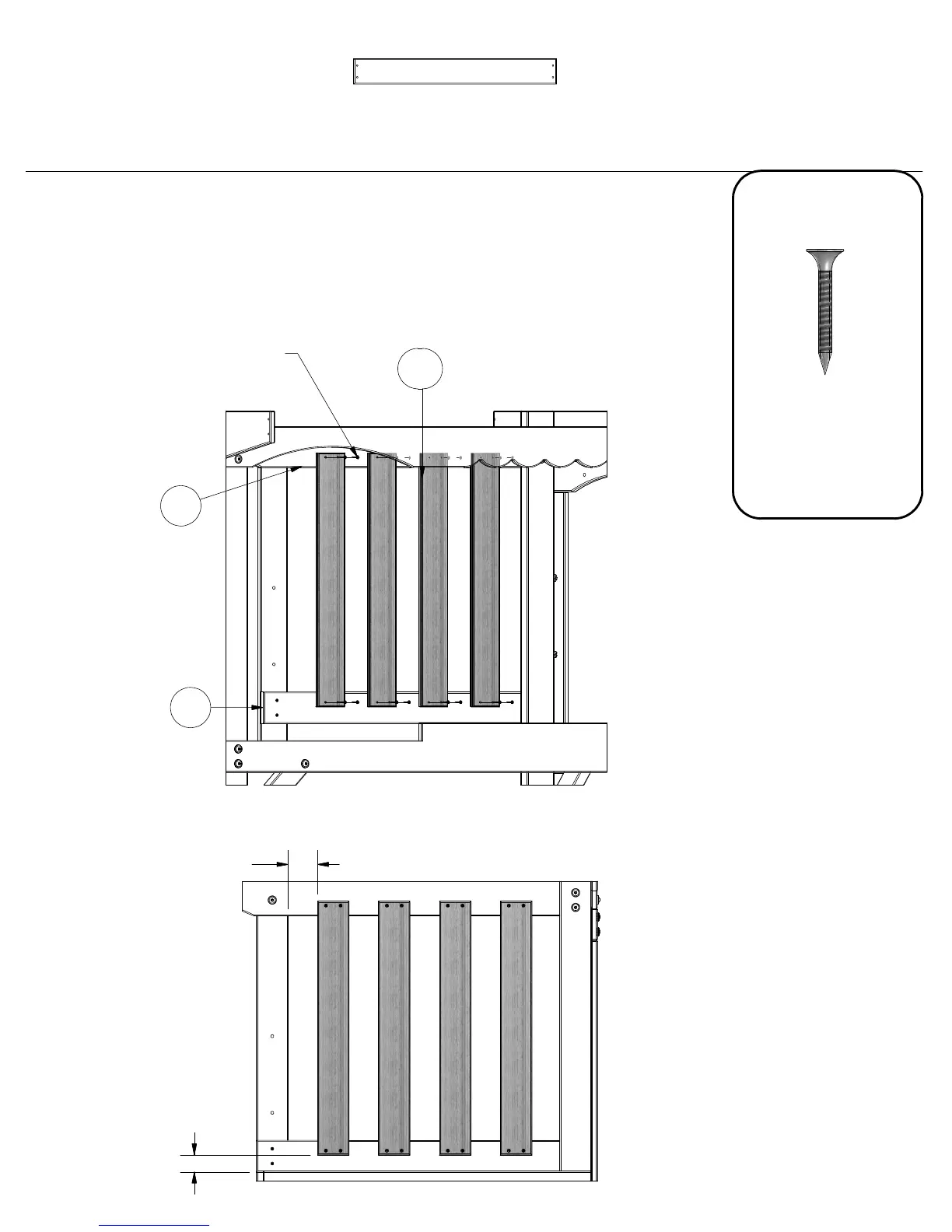

STEP 16
ATTACH M17 PICKETS TO L6 AND M8 BOARDS USING SPACING AND HARDWARE
AS SHOWN THROUGH PRE DRILLED HOLES.
M17 - PICKET - W100705
5/8"x3 3/8"x27 1/8" (16x86x690)
(4)
SCREW PFH
8x1 1/8
(16)
L6
M17
M8
3 1/8"
(5 SPCS)
1 13/16"
SCREW PFH 8x1 1/8
(16 PLCS)
