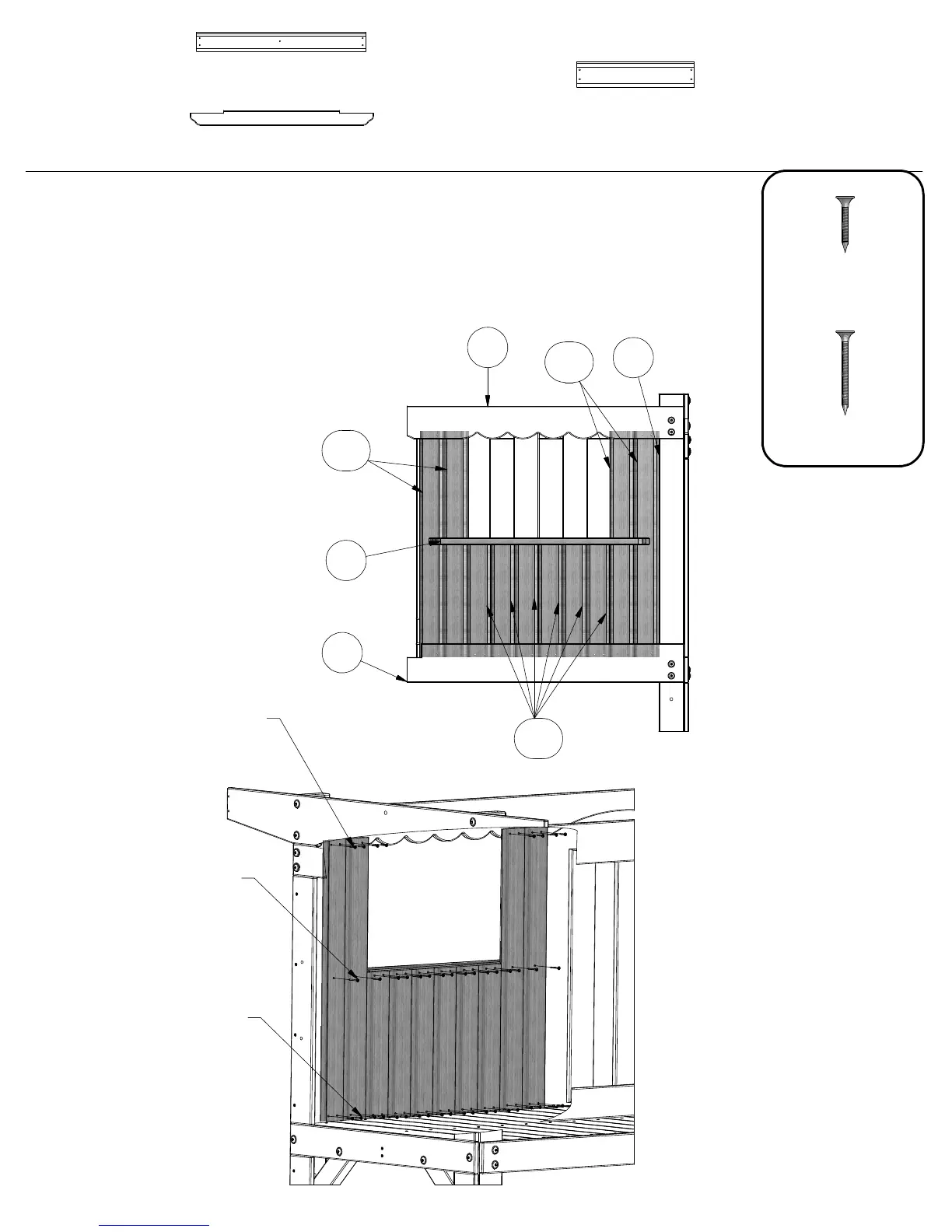

STEP 17
PLACE (2) K9-2 BOARDS ON FLOOR AGAINST L7 AND K4 BOARDS, AND AGAINST E3
BOARD LIP OF K9-2 TOUCHING E3 BOARD AND ATTACH WITH HARDWARE AS SHOWN
THROUGH PRE DRILLED HOLES.
ATTACH K9-1 BOARDS AND (2) K9-2 BOARDS L7 AND K4 BOARD AGAINST PREVIOUSLY
ATTACHED K9-2 BOARDS.
ATTACH J1 SHELF TO TOP OF K9-1
BOARDS AND THROUGH K9-2 BOARDS
THROUGH PRE DRILLED HOLES USING
HARDWARE AS SHOWN.
K9-2
E3
K9-2
J1
K4
K9-1
L7
J1 - WINDOW LEDGE - W100709
1"x2 3/8"x29 1/2" (24x60x750)
(1)
SCREW PFH
8x1
(28)
SCREW PFH
8x1 1/2
(16)
K9-1 - WALL BOARD - W100713
3/8"x3 3/8"x15 3/4" (11x86x400)
(6)
SCREW PFH 8x1
(8 PLCS)
SCREW PFH 8x1 1/2
(16 PLCS)
SCREW PFH 8x1
(20 PLCS)
K9-2 - WALL BOARD - W100712
3/8"x3 3/8"x30 1/4" (11x86x768)
(4)
