Backyard Discovery 55006 - Page 54

EA - HAND GRIP YELLOW PLASTIC - A100043
(4)
BOLT PTH
1/4x1
(6)
SCREW
TAPPING
14x1-1/2
(2)
T-NUT 1/4 (2)
WASHER
LOCK INT
8x15
(8)
WASHER
FLAT 9x18
(8)

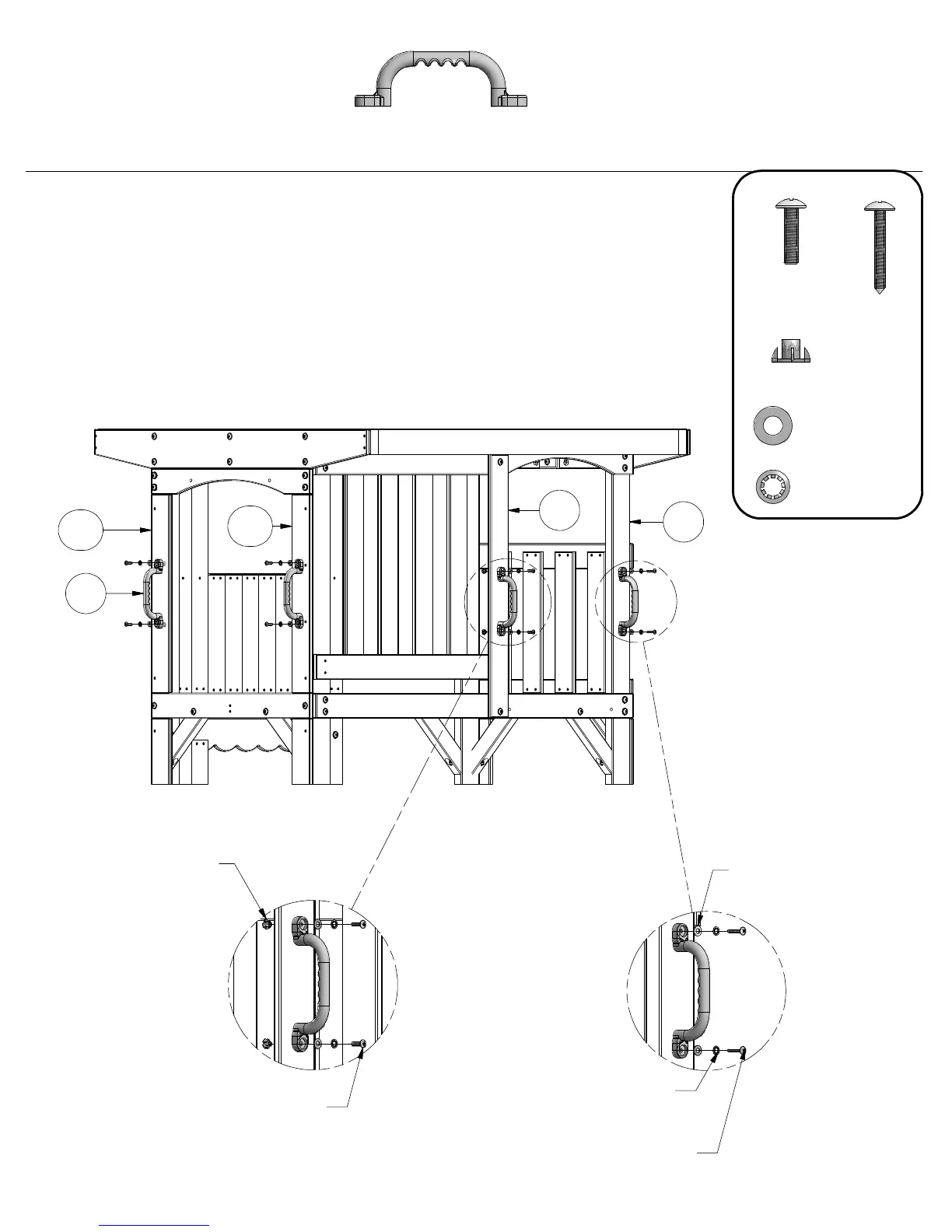

STEP 24
ATTACH EA HANDLE TO E2 BOARD USING HARDWARE AS SHOWN (FIG. 1).
INSERT 1/4" T-NUTS INTO M7 BOARD AND ATTACH EA HANDLE AS SHOWN (FIG. 2).
ATTACH 2 EA HANDLES TO M11 BOARDS USING PREVIOUSLY INSERTED T-NUTS.
EA
M11
M11
M7
E2
FIG. 2
FIG. 1
WASHER FLAT 9x18
(8PLCS)
WASHER LOCK INT 8x15
(8PLCS)
SCREW TAPPING 14x1-1/2
(2PLCS)
BOLT PTH 1/4x1
(6 PLCS)
T-NUT 1/4
(2 PLCS)
