Backyard Discovery Echo Heights - Page 33

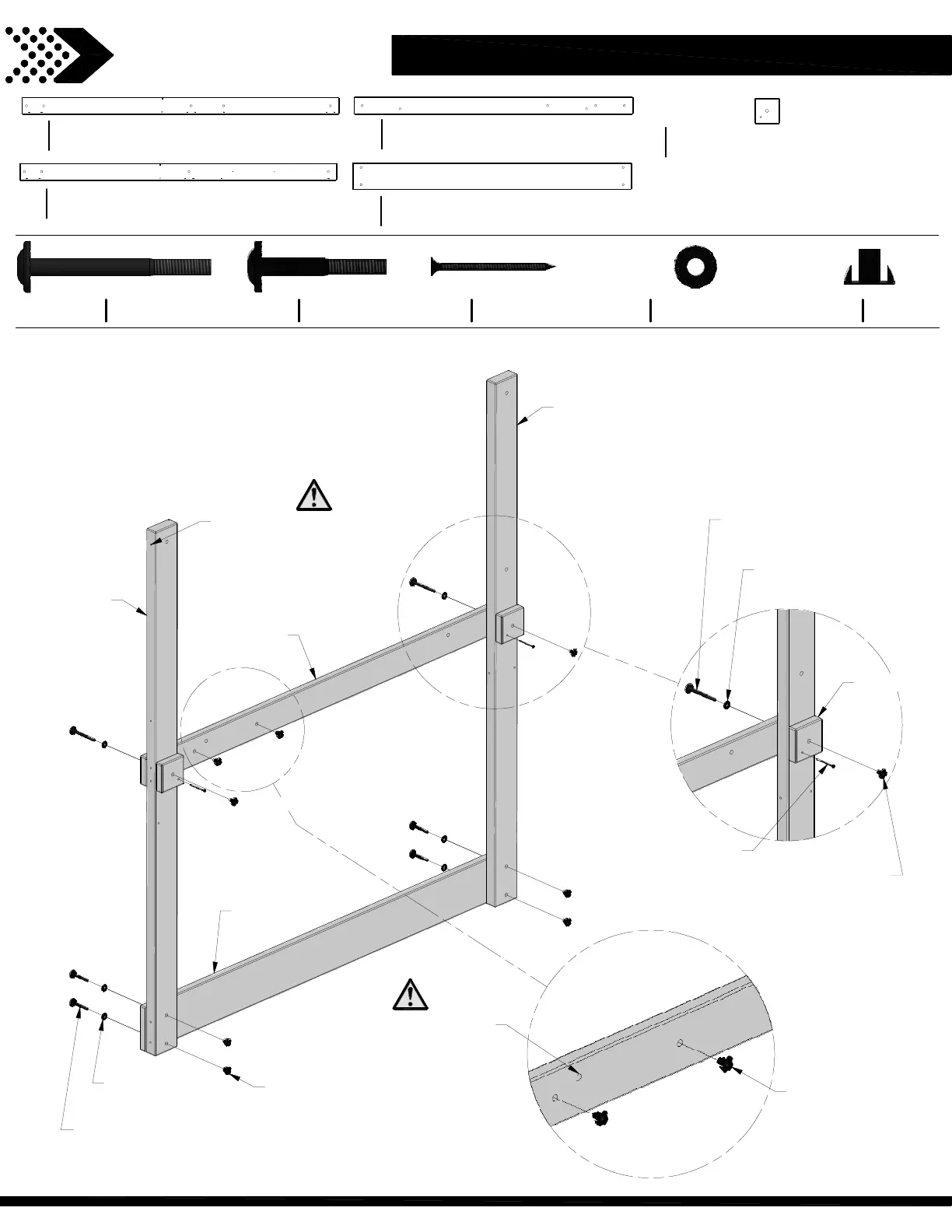

DECK ASSEMBLY
STEP 3
NOTE HOLE LOCATION FOR
PROPER INSTALLATION.
NOTE HOLE LOCATION
IS CLOSER TO THE
TOP EDGE.
484 (x2)
BOLT - 3 1/4"
198 (x2)
WASHER - 8x19
379 (x2)
T-NUT - 5/16"
483 (x2)
SCREW - 8x2 1/4"
379 (x2)
T-NUT - 5/16"
205 (x4)
BOLT - 2 1/4"
198 (x4)
WASHER - 8x19
379 (x4)
T-NUT - 5/16"
E2 (x1)
E3 (x1)
G2 (x1)
J1 (x2)
H4 (x1)
FLOOR RAIL - W4L14891
1"x3 3/8"x54 7/8" (24x86x1394)
H4
(x1)
RIGHT FRONT UPRIGHT - W4L14881
1 3/8"x3 3/8"x62 3/8" (36x86x1584)
E2
(x1)
RIGHT REAR UPRIGHT - W4L14882
1 3/8"x3 3/8"x62 3/8" (36x86x1584)
E3
(x1)
FLOOR SUPPORT BLOCK - W4L14902
1"x3 3/8"x3 3/8" (24x86x86)
J1
(x2)
GROUND BOARD - W4L14885
1"x5 1/4"x54 7/8" (24x134x1394)
G2
(x1)
BOLT WH BLK
5/16x3 1/4
(x2)
H100484
BOLT WH BLK
5/16x2-1/4
(x4)
H100205
SCREW PFH BLK
8x2 1/4
(x2)
H100483
WASHER LOCK EXT BLK
8x19
(x6)
H100198
T-NUT BLK
5/16
(x8)
H100379
33
