Backyard Discovery OAKMONT - Parts Identification; Wood Components

Parts Identification
Wood Components

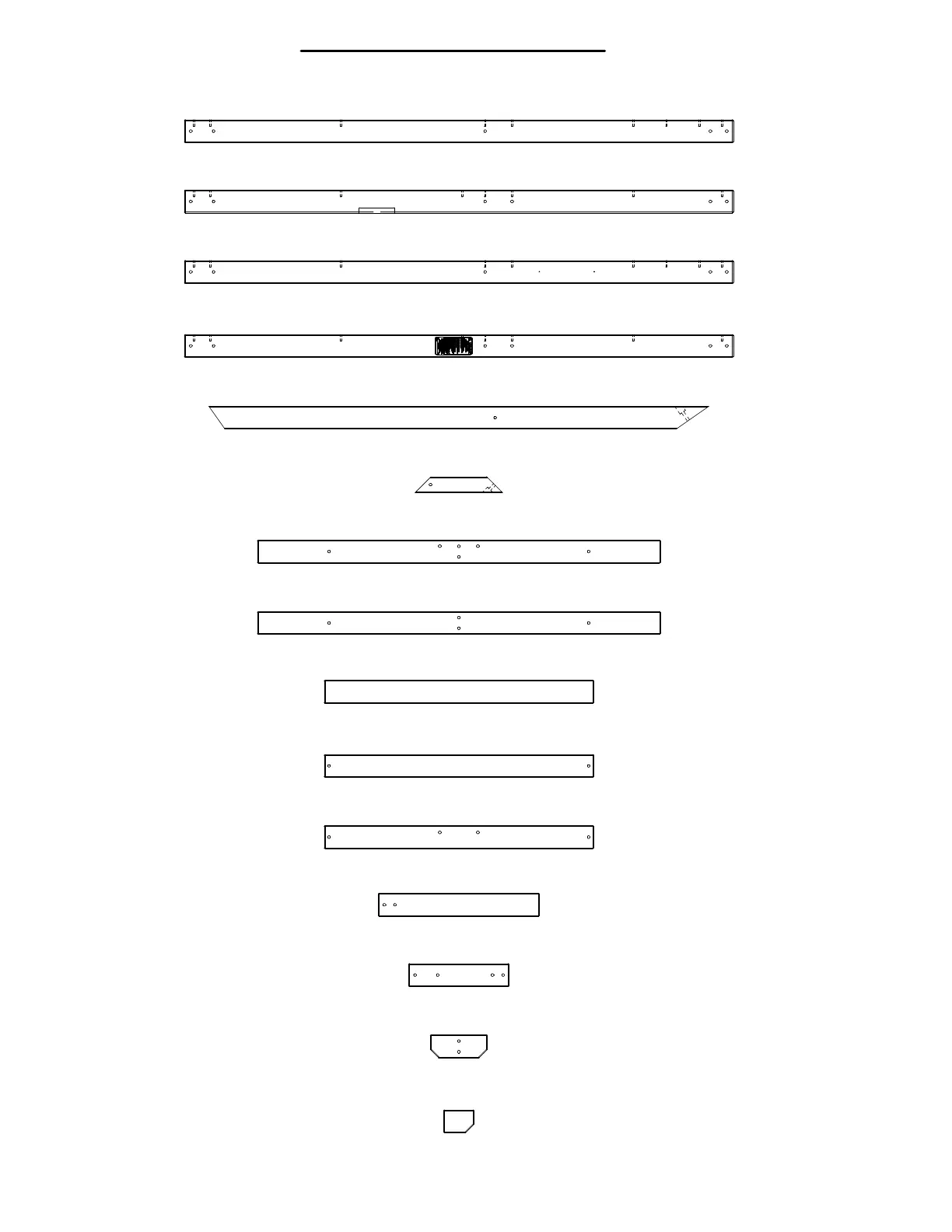

(NOT TO SCALE)
E1 - FRONT LEFT UPRIGHT - W4L04782
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E2 - FRONT RIGHT UPRIGHT - W4L04807
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E3 - BACK LEFT UPRIGHT - W4L04783
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E4 - BACK RIGHT UPRIGHT - W2A01499
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
E77 - ANGLE BRACE - W4L04854
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
F71 - STANDARD ANGLE BRACE - W100689
1 3/8"x2 3/8"x13" (36x60x330)
(3)
H1 - LEFT ROOF RAIL - W4L04806
1"x3 3/8"x60" (24x86x1524)
(1)
H2 - RIGHT ROOF RAIL - W4L04786
1"x3 3/8"x60" (24x86x1524)
(1)
H3 - FLOOR JOIST - W4L04692
1"x3 3/8"x40 1/8" (24x86x1018)
(1)
H4 - FLOOR SUPPORT - W4L04690
1"x3 3/8"x40 1/8" (24x86x1018)
(1)
H5 - SWING BEAM RAIL - W4L04804
1"x3 3/8"x40 1/8" (24x86x1018)
(1)
H6 - ROOF UPRIGHT - W4L04788
1"x3 3/8"x24" (24x86x610)
(1)
H7 - BENCH UPRIGHT - W4L04765
1"x3 3/8"x15" (24x86x380)
(2)
H8 - SEAT SUPPORT - W4L04766
1"x3 3/8"x8 1/2" (24x86x216)
(2)
H9 - SHELF SUPPORT - W4L04764
1"x3 3/8"x4 1/2" (24x86x114)
(2)
