Backyard Discovery OAKMONT - NUT BARREL WH 5;16 X7;8

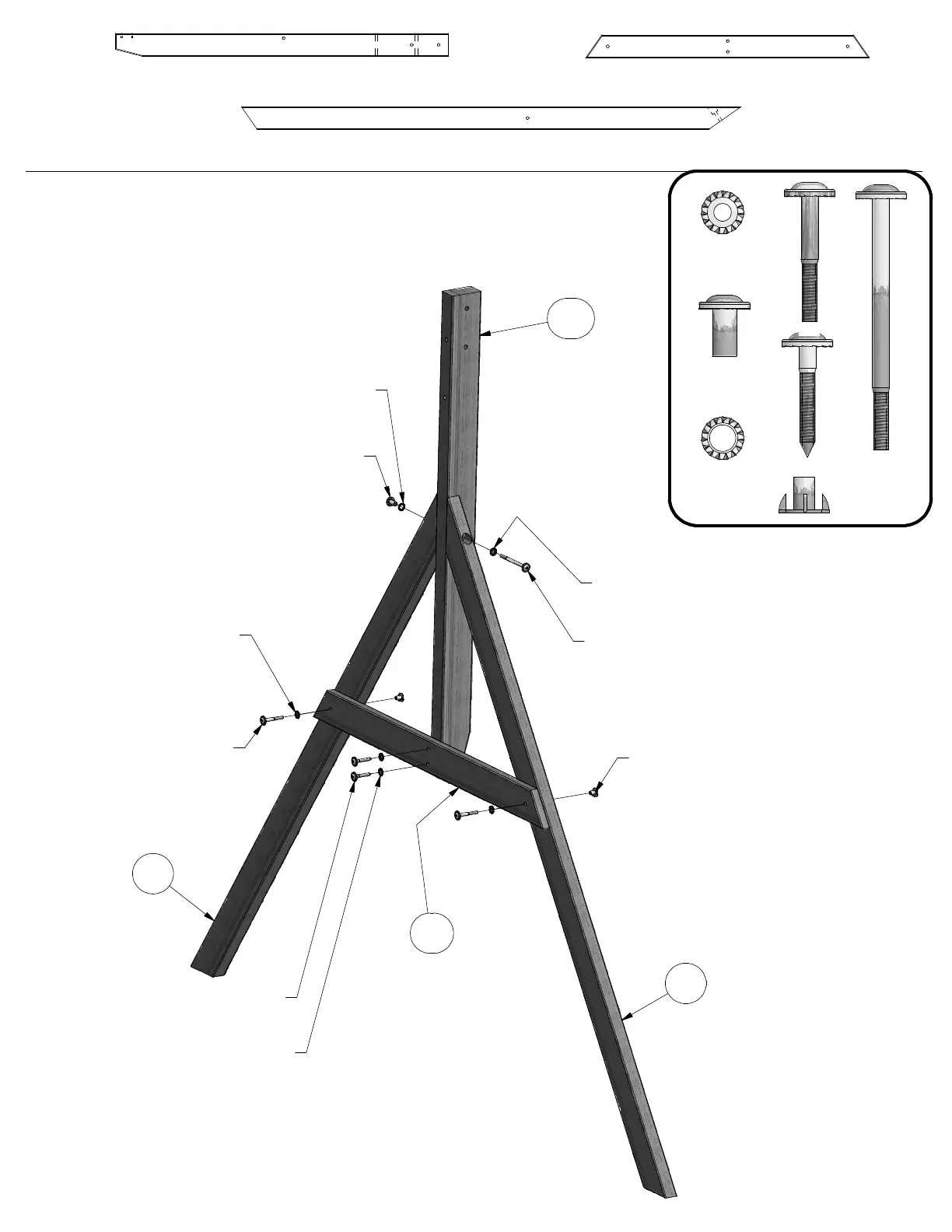

SWING BEAM ASSEMBLY
STEP 2
NUT BARREL WH 5/16x7/8
(1 PLC)
WASHER LOCK EXT 12x19
(1 PLC)
WASHER LOCK EXT 8x19
(1 PLC)
BOLT WH 5/16x4 1/2
(1 PLC)
LAG SCREW WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(2 PLCS)
E77
E77
H79
W71
W71 - SWING BEAM SUPPORT - W4L04856
2"x3 3/8"x49 5/8" (50x86x1260)
(1)
E77 - ANGLE BRACE - W4L04854
1 3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
H79 - END SUPPORT - W4L04855
1"x3 1/2"x42" (24x86x1072)
(1)
WASHER LOCK EXT 8x19
(2 PLCS)
BOLT WH 5/16x2 1/4
(2 PLCS)
T-NUT 5/16
(2 PLCS)
B
O
L
T
W
H
5
/
1
6
x
4
1
/
2
(
1
)
T-NUT 5/16 (2)
L
A
G
S
C
R
E
W
W
H
5
/
1
6
x
2
(
2
)
B
O
L
T
W
H
5
/
1
6
x
2
1
/
4
(
2
)
WASHER
LOCK EXT
8x19
(5)
NUT BARREL
WH 5/16x7/8
(1)
WASHER
LOCK EXT
12x19
(1)
