Backyard Discovery OAKMONT - Page 32

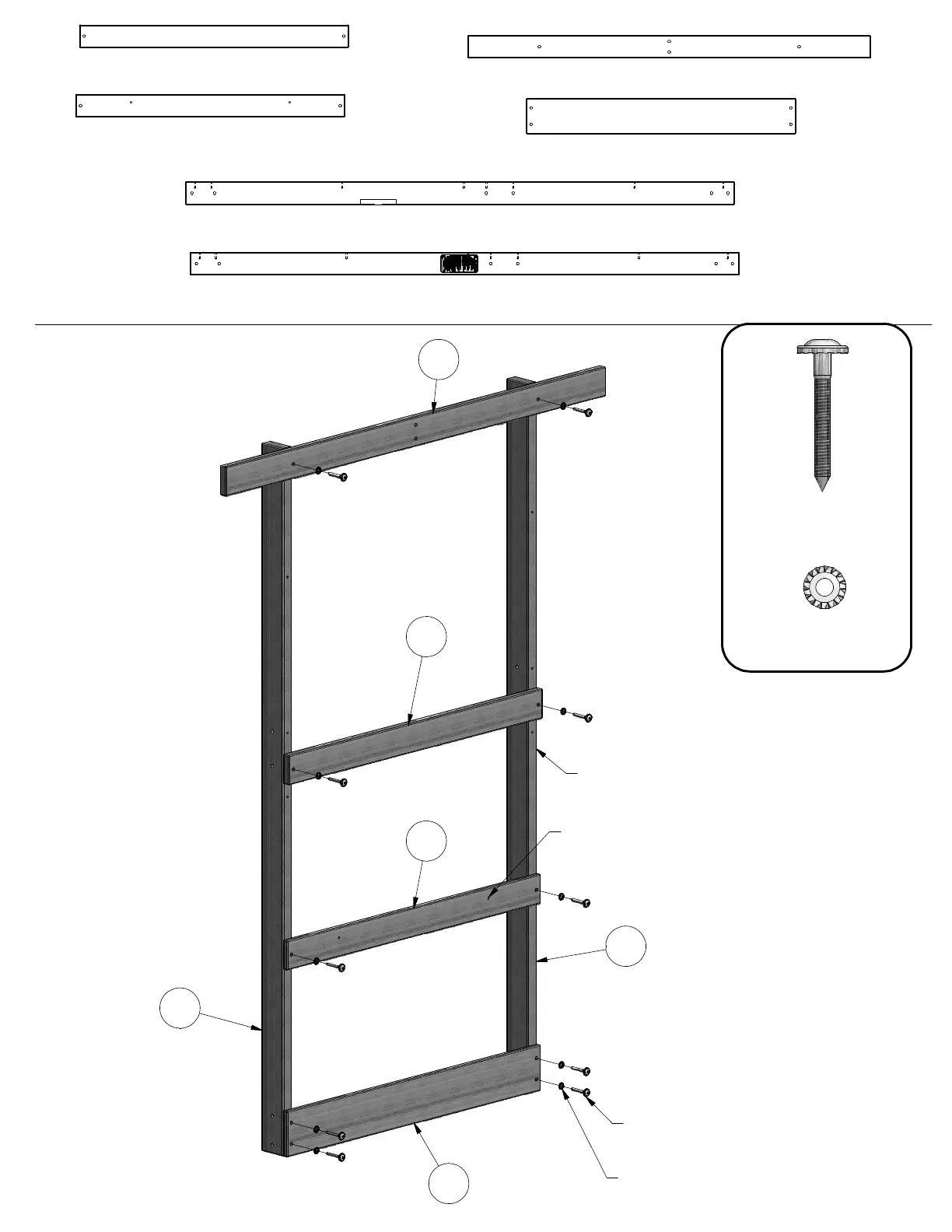

STEP 4
LAG SCREW
WH 5/16x2 1/2
(10)
WASHER
LOCK EXT
8x19
(10)
LAG SCREW WH 5/16x2 1/2
(10 PLCS)
WASHER LOCK EXT 8x19
(10 PLCS)
K4
E4
E2
M4
H4
H2
M4 - SERVING SHELF SUPPORT - W4L04695
5/8"x3 3/8"x40 1/8" (16x86x1018)
(1)
K4 - GROUND BOARD - W4L04689
5/8"x5 1/4"x40 1/8" (16x134x1018)
(1)
E2 - FRONT RIGHT UPRIGHT - W4L04807
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
(1)
H4 - FLOOR SUPPORT - W4L04690
1"x3 3/8"x40 1/8" (24x86x1018)
(1)
H2 - RIGHT ROOF RAIL - W4L04786
1"x3 3/8"x60" (24x86x1524)
(1)
(1)
E4 - BACK RIGHT UPRIGHT - W2A01499
1 3/8"x3 3/8"x81 3/4" (36x86x2076)
WARNING PLATE
ON BACK SIDE
HOLES TOWARD TOP
