Backyard Discovery OAKMONT - Page 60

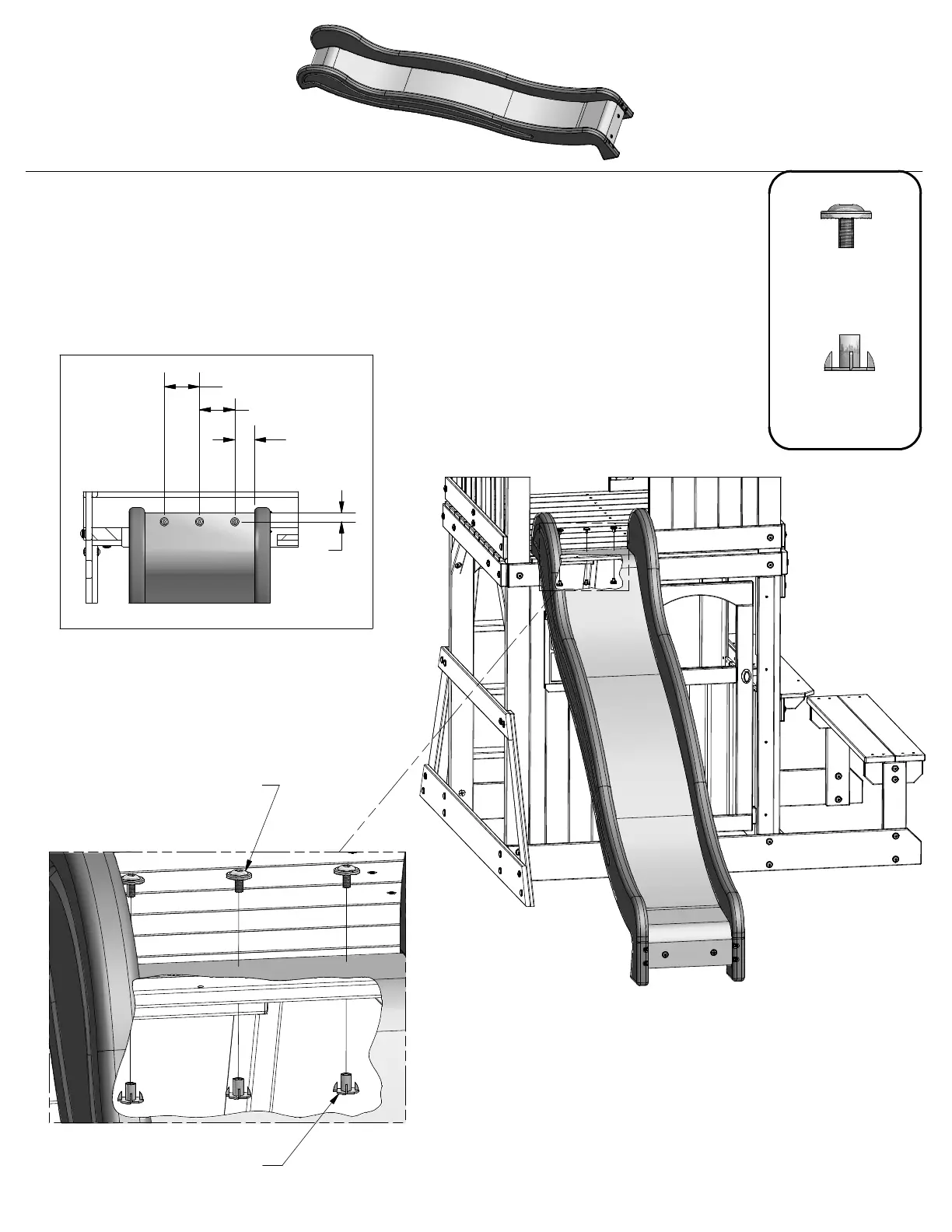

FINAL ASSEMBLY
STEP 3
DRILL (3) 7/16" DIA HOLES THROUGH SLIDE BED AND DECK AT LOCATIONS SHOWN.
BOLT WH 5/16x1/2
(3 PLCS)
T-NUT 5/16
(3 PLCS)
T-NUT 5/16 (3)
BOLT WH
5/16x1/2
(3)
1
2 3/16
3 15/16
3 15/16
SLIDE ASSEMBLY
DRILL PATTERN
