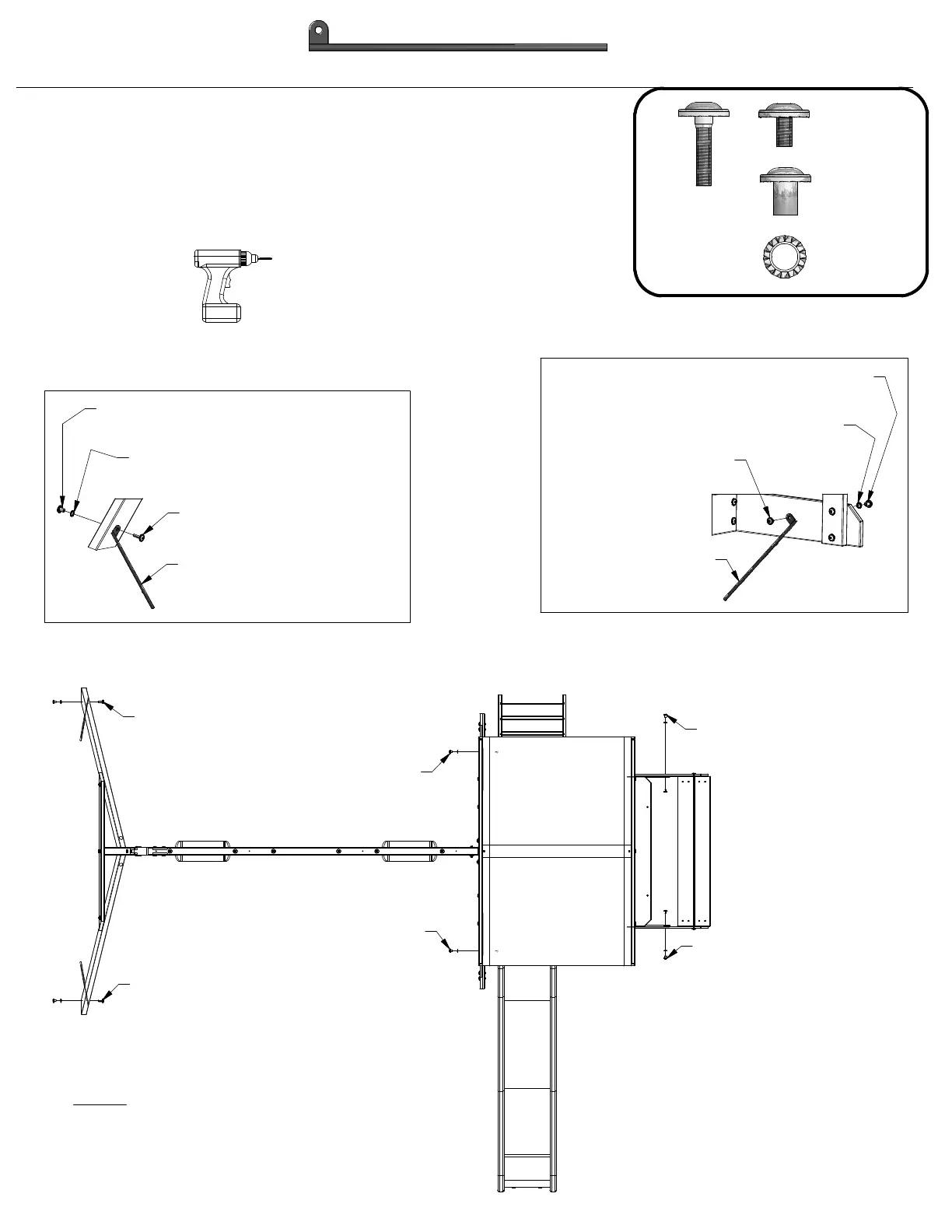

Backyard Discovery OAKMONT - Page 63

STAKE FIG. 1
STAKE FIGURE 2
(4 PLCS)
BOLT WH 5/16x1/2
(4 PLCS)
WASHER LOCK EXT 12x19
(4 PLCS)
NUT BARREL WH 5/16x5/8
(4 PLCS)
GROUND STAKE REBAR
(4 PLCS)
GROUND STAKE REBAR
(2 PLCS)
STAKE FIGURE 1
(2 PLCS)
BOLT WH 5/16x1 1/4
(2 PLCS)
WASHER LOCK EXT 12x19
(2 PLCS)
NUT BARREL WH 5/16x5/8
(2 PLCS)
- GROUND STAKE REBAR - A4M00527
(6)
BOLT WH
5/16x1/2
(4)
WASHER
LOCK EXT
12x19
(6)
BOLT WH
5/16x1 1/4
(2)
NUT BARREL
WH 5/16x5/8
(6)
DRILL 7/16" [10mm] HOLE AT
EACH STAKE LOCATION.
NOTE:
FAILURE TO USE GROUND STAKES CAN
VOID WARRANTY & CAUSE INJURY!
STAKE FIG. 1
STAKE FIG. 2
STAKE FIG. 2
STAKE FIG. 2
STAKE FIG. 2
FINAL STEP
DOUBLE CHECK EVERY BOLT,
SCREW AND NUT FOR TIGHTNESS.
MAKE SURE EVERY BOARD IS
SECURE AND MAKE SURE THE
PLAY SET IS LEVEL.
ENJOY YOUR NEW PLAY SET!
FINAL ASSEMBLY
STEP 6
TAP IN GROUND STAKES AT AN APPROXIMATE 45° ANGLE AT THE
LOCATIONS SHOWN.
