Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) M3 - TARP SUPPORT - W101539
• (1) M4 - FLOOR/TARP SUPPORT - W101541
• (3) K1 - WALL RAIL - W101528
• (1) K2 - ARCHED WALL RAIL - W101531
• (2) M5 - WALL RAIL - W101522
Hardware needed:
• (8) CK - SCREW PFH 8x2 - H100111
• (4) BP - SCREW PFH 8x1-1/2 - H100086
• (20) Z - LAG SCREW WH 5/16x2 - H100027
• (20) AC - WASHER LOCK EXT 8x19 - H100030

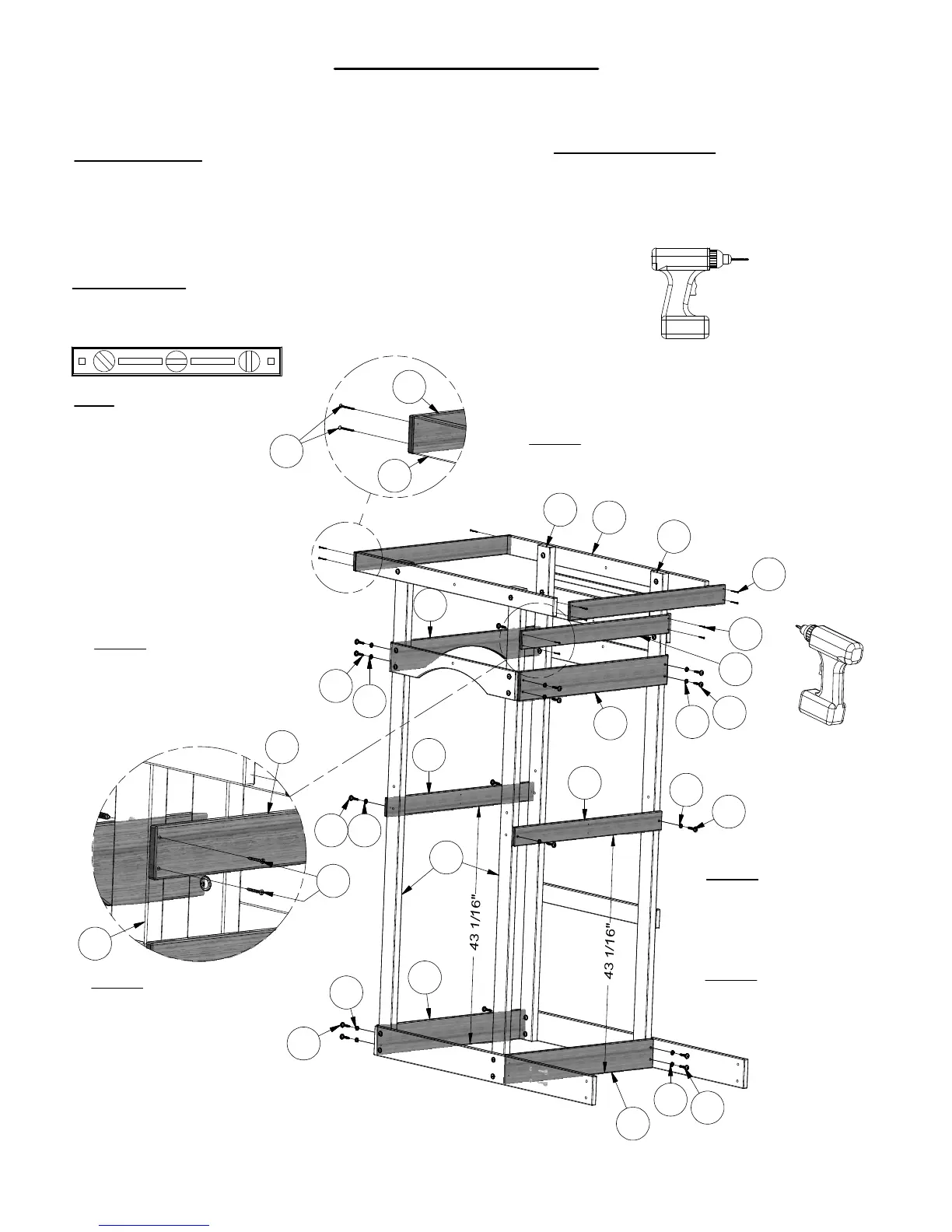

Step 1:
Attach 'K1' Wall Rails
to 'E1' & 'E2' fort uprights
using Lag Screw 'Z' &
Washer 'AC', as shown.
Step 2: Attach 'M5' Wall
Rails to 'E1' & 'E2' fort
uprights using Lag Screw
'Z' & Washer 'AC', as
shown.
Step 3:
Attach 'K1' Wall Rail &
'K2' Arched Wall Rail to 'E1' &
'E2' fort uprights using Lag
Screw 'Z' & Washer 'AC', as
shown.
Step 4:
Attach 'M4' Floor / Tarp
Support to 'E1' & 'E2' fort
uprights using Screw 'BP', as
shown.
Step 5:
Attach 'M3' Tarp Supports to
'H1' Roof Cross Braces using Screw
'CK', as shown.
Note: It is vital that the fort
be level before and after
each phase of assembly.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
AC
Z
K1
Z
AC
E1
K1
M5
Z
AC
BP
E1
M4
Z
AC
K2
CK
H1
M3
E2
H1
E2
CK
BP
M4
Z
AC
K1
M5
Z
AC
F
FF
Fo
oo
or
rr
rt
tt
t
A
AA
As
ss
ss
ss
se
ee
em
mm
mb
bb
bl
ll
ly
yy
y
P
PP
Ph
hh
ha
aa
as
ss
se
ee
e
3
33
3
