Phase Notes
• Assemble with hardware as shown.

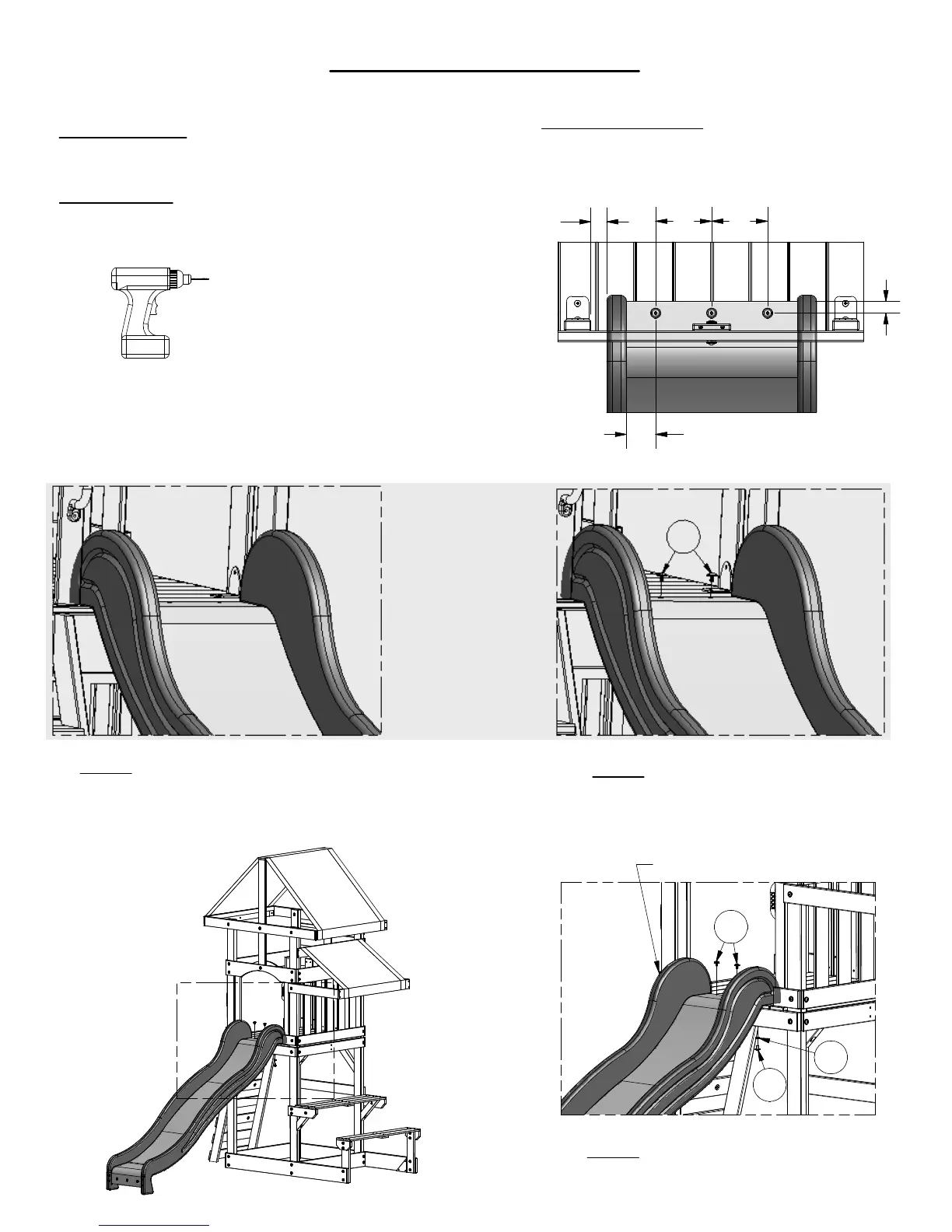

Slide Attachment
Phase 18
Hardware needed:
• (3) B - NUT BARREL WH 5/16x5/8 - H100004
• (3) AD - WASHER LOCK EXT 12x19 - H100031
• (3) CM - BOLT WH 5/16x1/2 - H100115
Parts needed:
• (1) SLIDE ASSEMBLY
Step 3: Attach the Slide Assembly to
the fort floor using the Safe-T-Fuse
hardware, as shown.
Step 1: Center the wave slide
assembly in the opening opposite the
swing beam assembly, as shown.
Step 2: Using a drill with a 5/16" bit,
drill (3) holes through the slide and
through the fort floor boards.
CM
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
SLIDE ASSEMBLY
B
AD
CM
1 7/16"
2 5/8"
5" 5"
1
"
DRILLING DIAGRAM
To Next Page
