Fort Assembly
Phase 2
Phase Notes
• Assemble with hardware as shown.

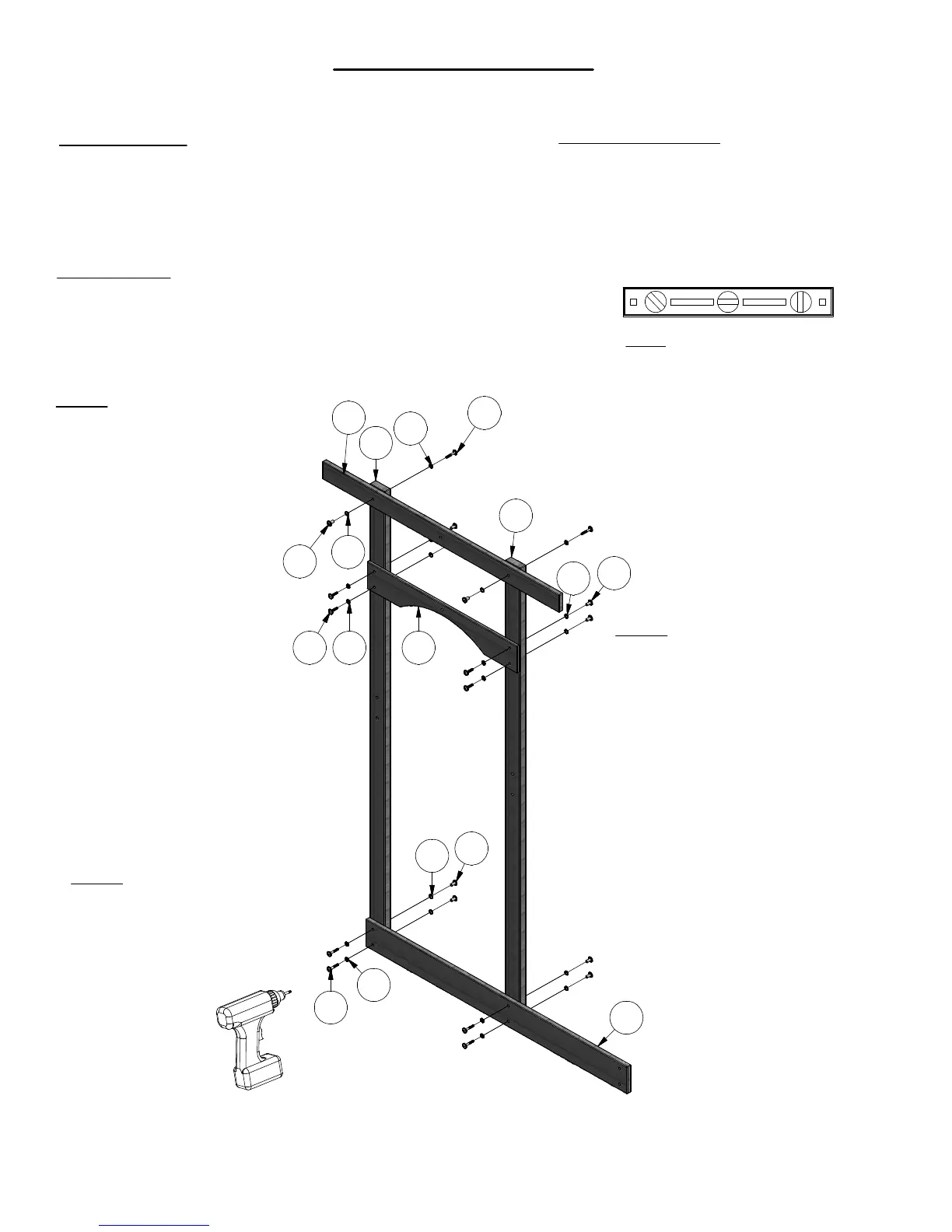

Step 1: Attach 'H1' Roof Cross Brace
to 'E1' Fort Uprights using hardware
'K', 'AC', 'AD', & 'D' as shown.
Parts needed:
• (1) H1 - ROOF CROSS BRACE - W101538
• (2) E1 - FORT UPRIGHT - W101519
• (1) K3 - ARCHED WALL RAIL - W101530
• (1) G1 - GROUND BOARD - W101529
Hardware needed:
• (10) D - NUT BARREL WH 5/16x7/8 - H100005
• (10) AD - WASHER LOCK EXT 12x19 - H100031
• (10) AC - WASHER LOCK EXT 8x19 - H100030
• (6) K - BOLT WH 5/16x/2 - H100012
• (4) H - BOLT WH 5/16x1-1/2 - H100010
Step 2: Attach 'K3' Arched Wall Rail
to 'E1' Fort Uprights using hardware
'H', 'AC', 'AD', & 'D' as shown.
Step 3: Attach 'G1' Ground Board to
'E1' Fort Uprights using hardware
'K', 'AC', 'AD', & 'D' as shown.
Note: It is vital that the fort
be level before and after
each phase of assembly.
K
AC
D
AD
H AC K3
H1
E1
E1
AD
D
D
AD
AC
K
G1
To Next Page
