Backyard Discovery Tucson 65411 - Rock Ladder Attachment

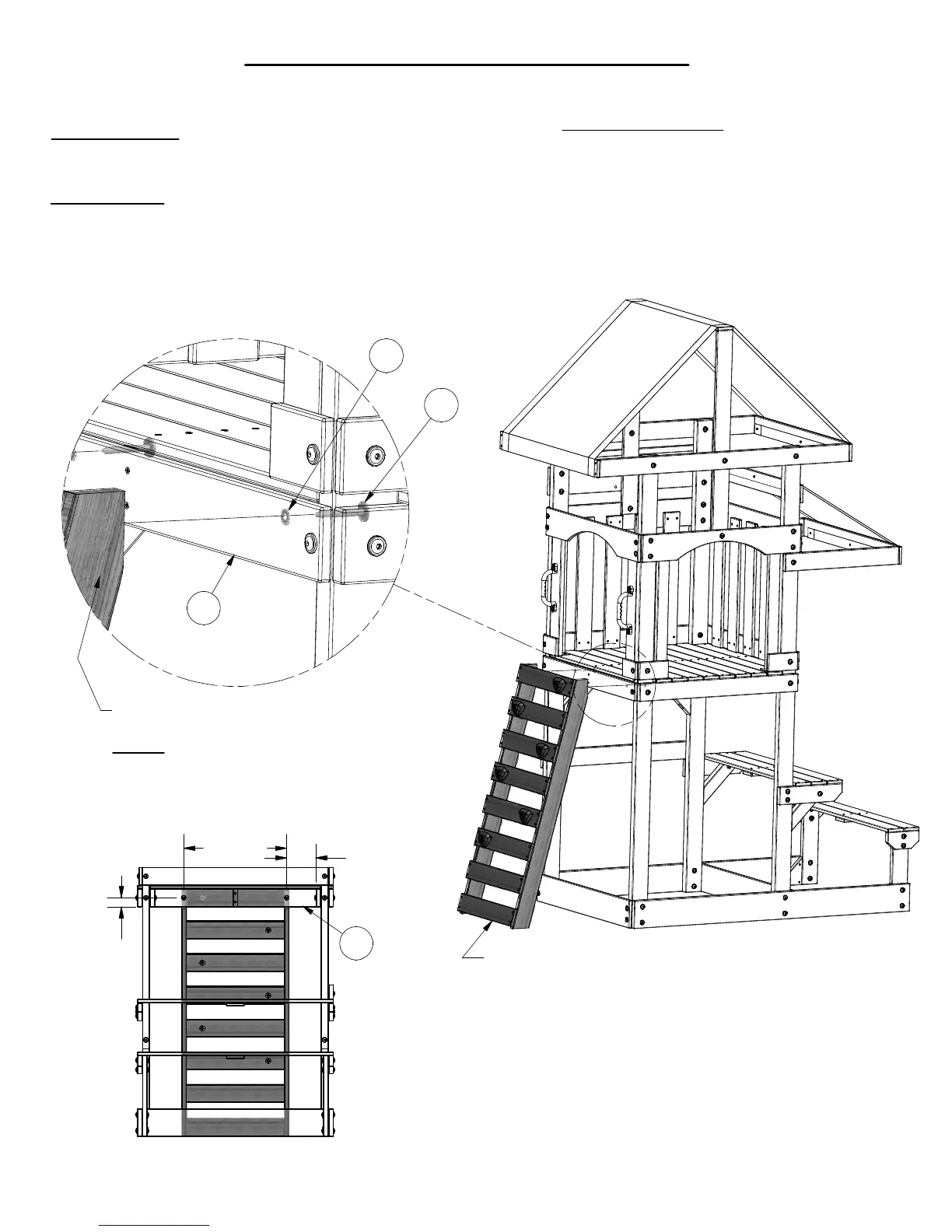

Step 1: Using the diagram below, pilot
drill using a 1/8" drill bit and attach
the Rock Wall Ladder to 'M5' wall rail
using Lag Screws 'AA' & Washers
'AC', as shown.
Hardware needed:
• (2) AA - LAG SCREW WH 5/16x2-1/2 - H100028
• (2) AC - WASHER LOCK EXT 8x19 - H100030
Rock Ladder Attachment
Phase 17
Parts needed:
• (1) ROCK WALL LADDER ASSEMBLY
Phase Notes
• Assemble with hardware as shown.
ROCK WALL LADDER ASSEMBLY
AC
AA
M5
ROCK WALL LADDER ASSEMBLY
19 5/16"
5 7/16"
1
1
1
/
1
6
"
DRILLING DIAGRAM
M5
