Backyard Discovery Tucson 65411 - Page 44

DA

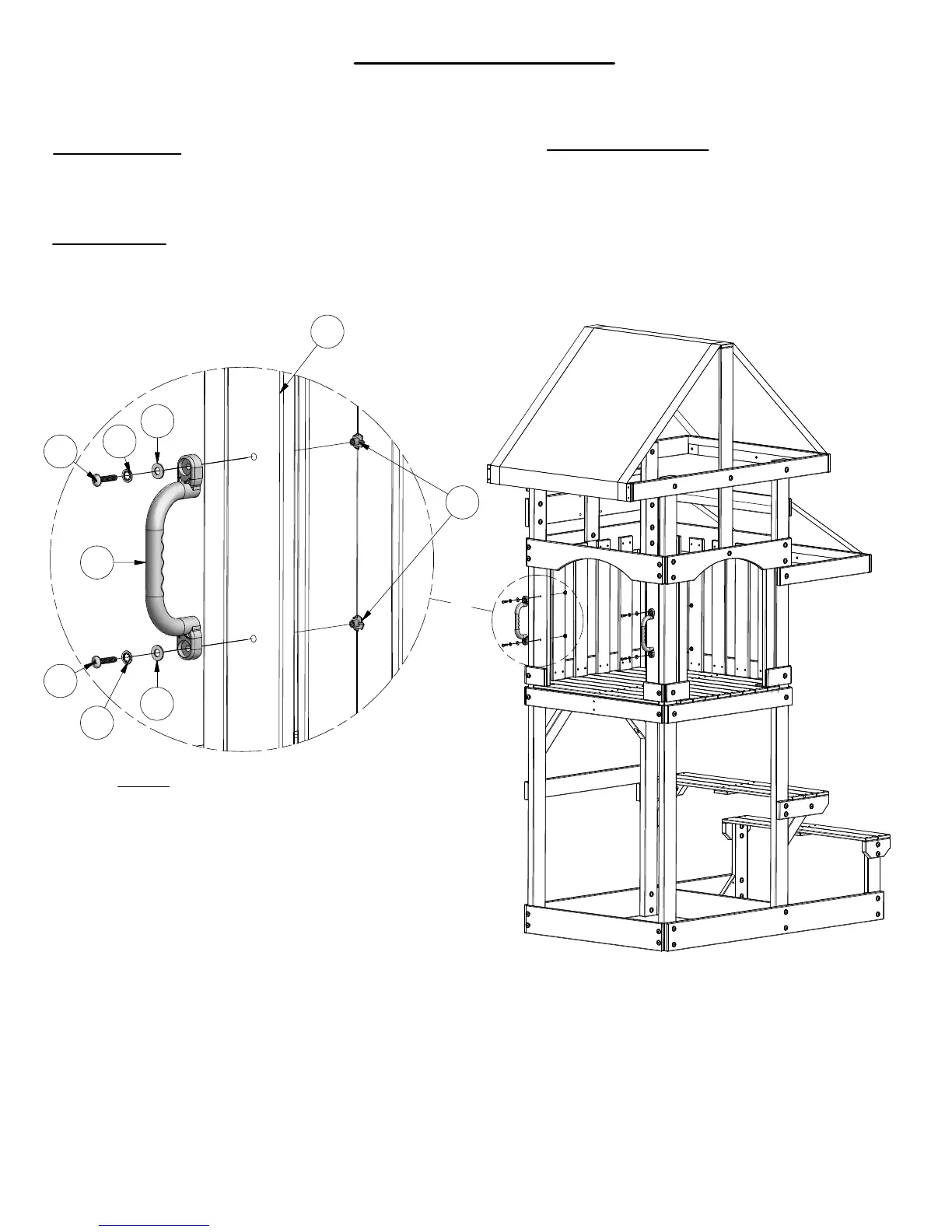

Step 1: Attach 'EA' Hand Grip to 'H6' wall
slat using Screw 'AZ', Washers 'CG' &
'CE', and T-Nuts 'BE', as shown. (The 'BE'
T-Nuts must be inserted into 'H6' wall slat
before assembly of hand grips.) Repeat
step to assembly second 'EA' handle grip.
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) EA - HAND GRIP YELLOW PLASTIC - A100043
Fort Assembly
Phase 16
Hardware needed:
• (4) AZ - BOLT PTH 1/4x1-1/4 - H100062
• (4) CG - WASHER LOCK EXT 8x15 - H100108
• (4) CE - WASHER FLAT 9x18 - H100106
• (4) BE - T-NUT 1/4 - H100072
H6
BE
EA
CE
CG
AZ
AZ
CG
CE
