Fort Assembly
Phase 5
Phase Notes
• Assemble with hardware as shown.
Parts needed:
• (2) M7 - FLOOR BOARD - W101524
• (8) M2 - FLOOR BOARD - W101525
Hardware needed:
• (40) CK - SCREW PFH 8x2 - H100111
• (20) BQ - SCREW PFH 8x1-1/4 - H100087

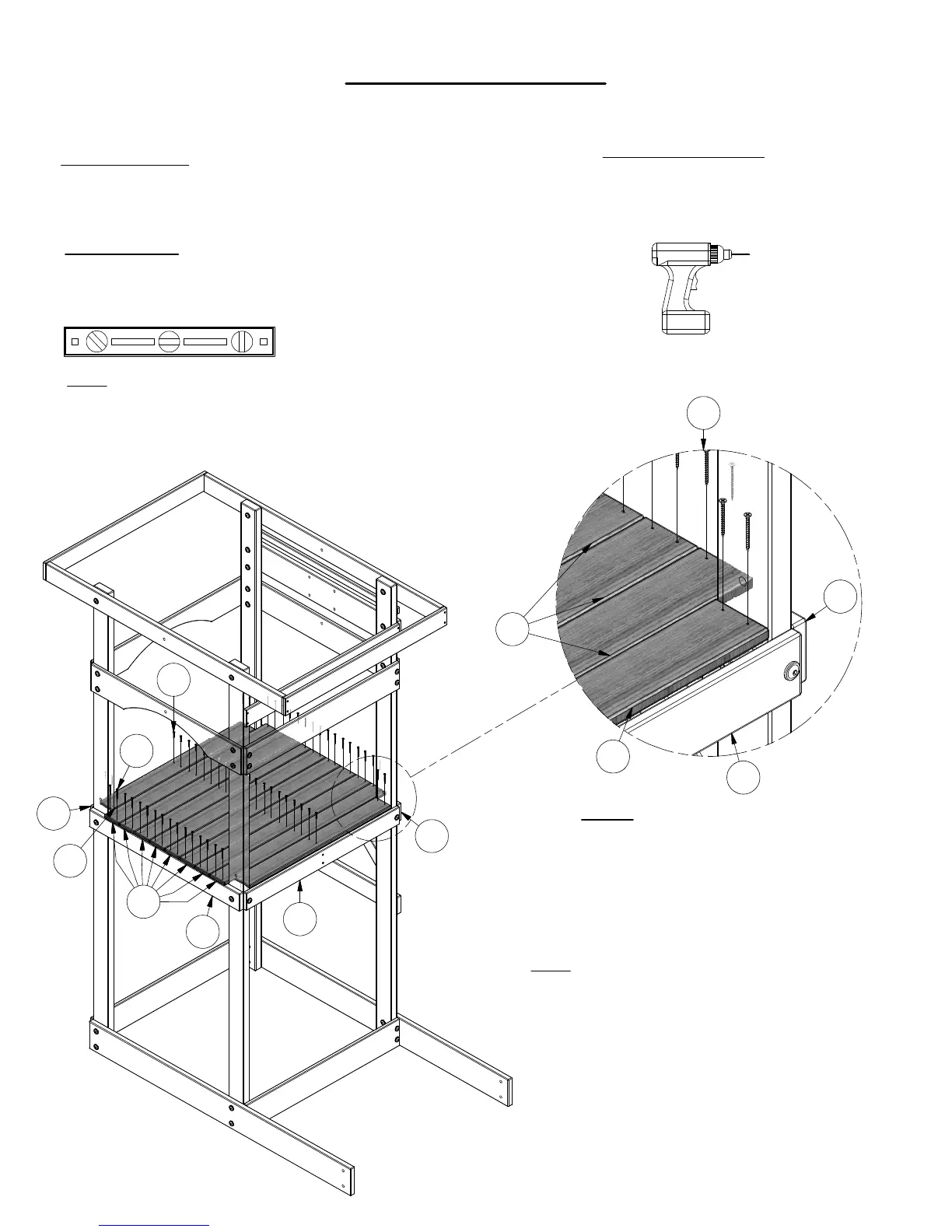

Step 1:
Gather the (2) 'M7' Floor Boards &
(8) 'M2' Floor Boards and arrange them on
floor supports, as shown. Pre-drill and
secure each floor board using Screws 'CK'
(outside) & 'BQ' (middle), as shown.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
Note: It is vital that the fort
be level before and after
each phase of assembly.
Note:
Do not overtighten screws, overtightening
may cause the screw to stick through the boards
and may cause sharp points. The head of the
screw should NOT sink into the wood for this
phase, it should be flush.
M2
M7
M5
H2
M5
H2
M5
H2
M7
M2
CK
CK
BQ
