Phase Notes
• Assemble with hardware as shown.
Fort Assembly
Phase 10
Parts needed:
• (2) H5 - PICNIC TARP SUPPORT - W101542
• (1) M3 - TARP SUPPORT - W101539
Hardware needed:
• (2) Z - LAG SCREW WH 5/16x2 - H100027
• (2) AC - WASHER LOCK EXT8x19 - H100030
• (4) CK - SCREW PFH 8x2 - H100111

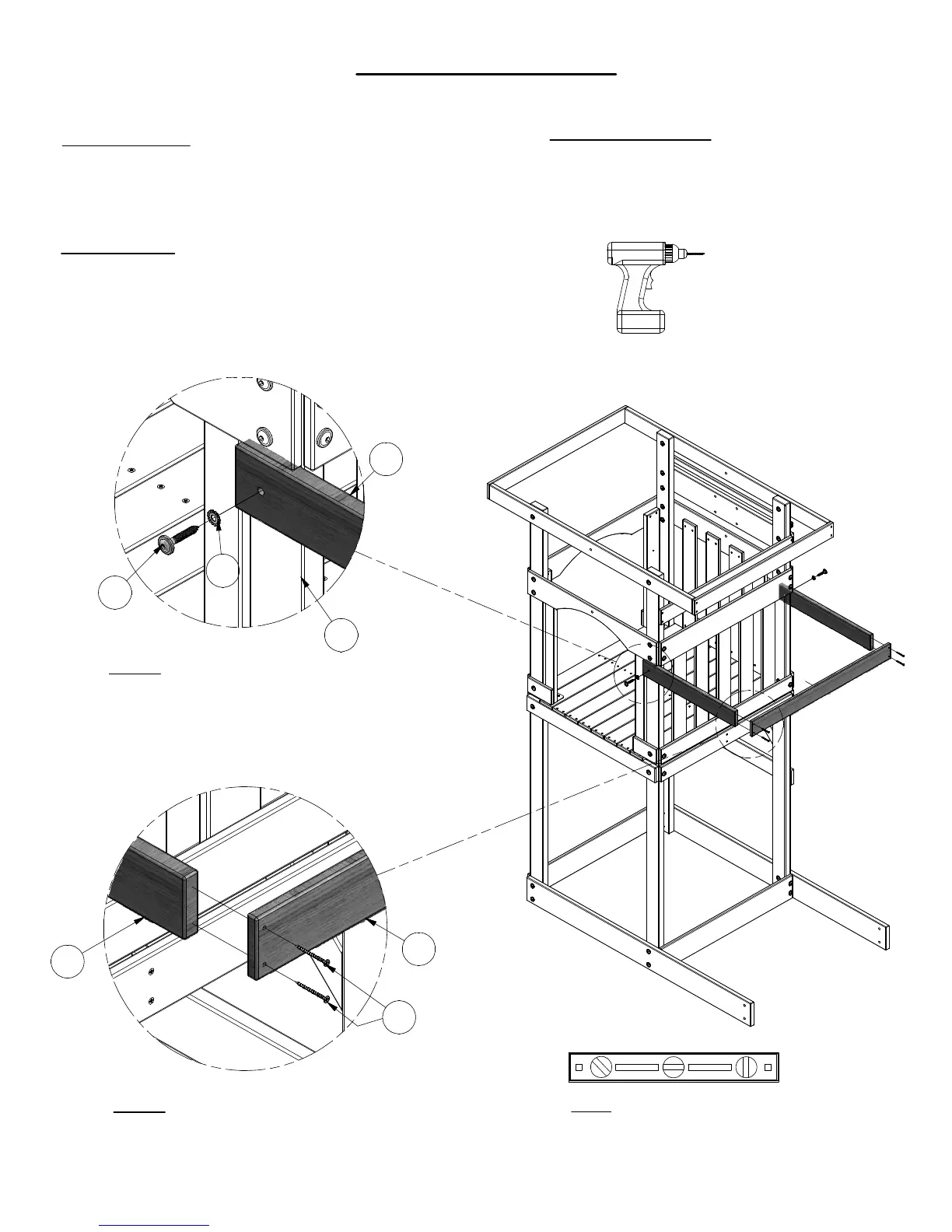

Step 1: Attach 'H5' Picnic Tarp Support
to 'E1' & 'E2' fort uprights using Lag
Screws 'Z' & Washer 'AC', as shown.
To prevent board splitting, you
must pre-drill each board with
a 1/8" drill bit, before attaching.
Step 2: Attach 'M3' Tarp Support to 'H5'
Picnic Tarp Support using Screws 'CK',
as shown.
Note: It is vital that the fort
be level before and after
each phase of assembly.
CK
M3
H5
Z
AC
E1
H5
To Next Page
