Backyard 1705012 - Parts Identification: Wood Components

Parts Identification
Wood Components

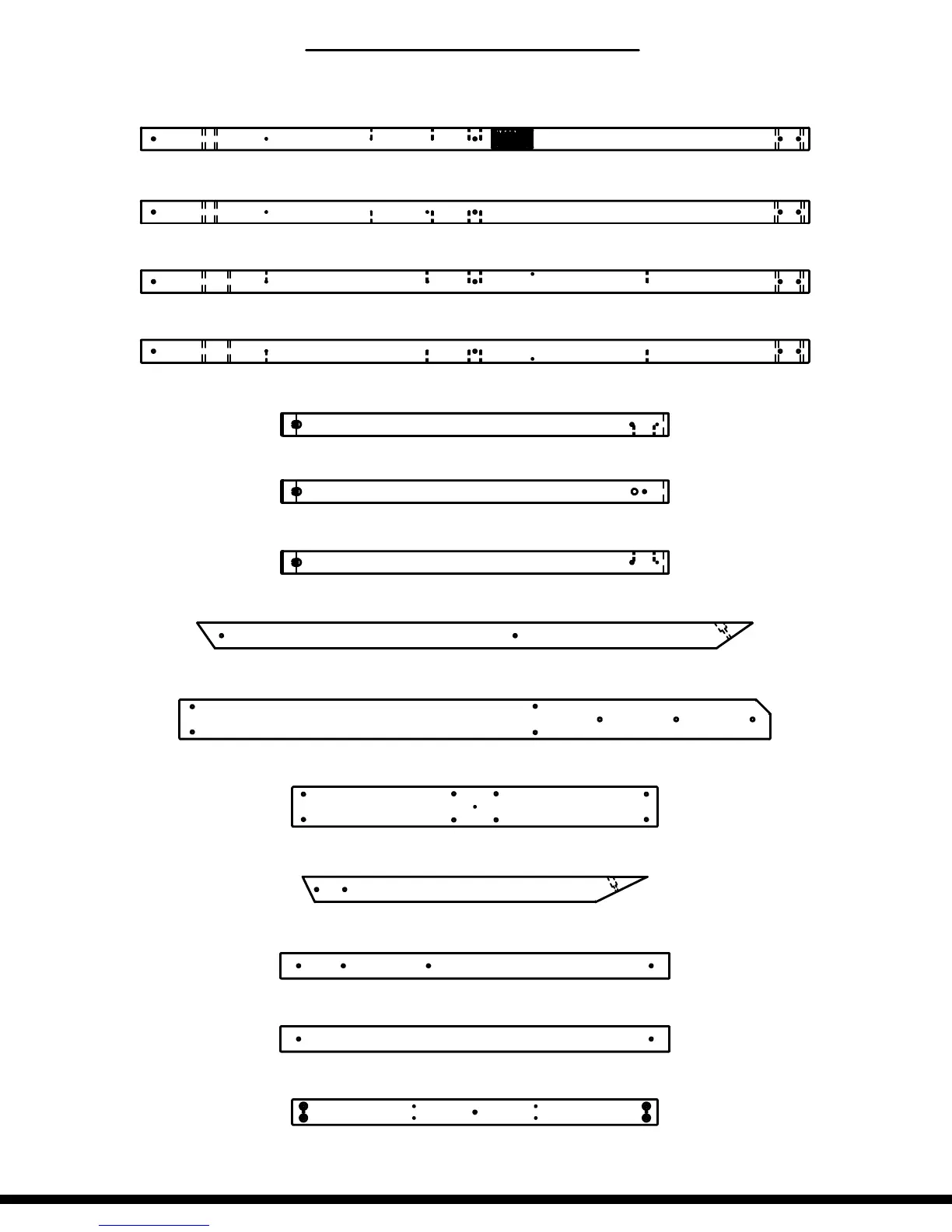

(NOT TO SCALE)
B1 - UPRIGHT POST - W2A02004
3"x3"x89 1/2" (76x76x2274)
(1)
B2 - UPRIGHT POST - W4L07119
3"x3"x89 1/2" (76x76x2274)
(1)
B3 - UPRIGHT POST - W4L07120
3
"x3"x89 1/2" (76x76x2274)
(1)
B4 - UPRIGHT POST - W4L07121
3"x3"x89 1/2" (76x76x2274)
(1)
E1 - RAIL - W4L07132
1 3/8"x3"x51 7/8" (36x76x1318)
(1)
E2 - RAIL - W4L07133
1 3/8"x3"x51 7/8" (36x76x1318)
(1)
E3 - RAIL - W4L07134
1 3/8"x3"x51 7/8" (36x76x1318)
(1)
E77 - ANGLE BRACE - W4L07154
1
3/8"x3 3/8"x74 3/8" (36x86x1890)
(2)
G1 - GROUND BOARD - W4L07126
1"x5 1/4"x79 1/8" (24x134x2010)
(1)
G2 - WALL RAIL - W4L07153
1"x5 1/4"x48 7/8" (24x134x1243)
(1)
H1 - ANGLE BRACE - W4L07127
1"x3 3/8"x46 1/8" (24x86x1173)
(2)
H2 - FLOOR SUPPORT - W4L07128
1"x3 3/8"x52 1/8" (24x86x1324)
(1)
H3 - FLOOR SUPPORT - W4L07129
1
"x3 3/8"x52 1/8" (24x86x1324)
(1)
H4 - FLOOR SUPPORT - W4L07130
1"x3 3/8"x48 7/8" (24x86x1243)
(1)
