Parts Identification

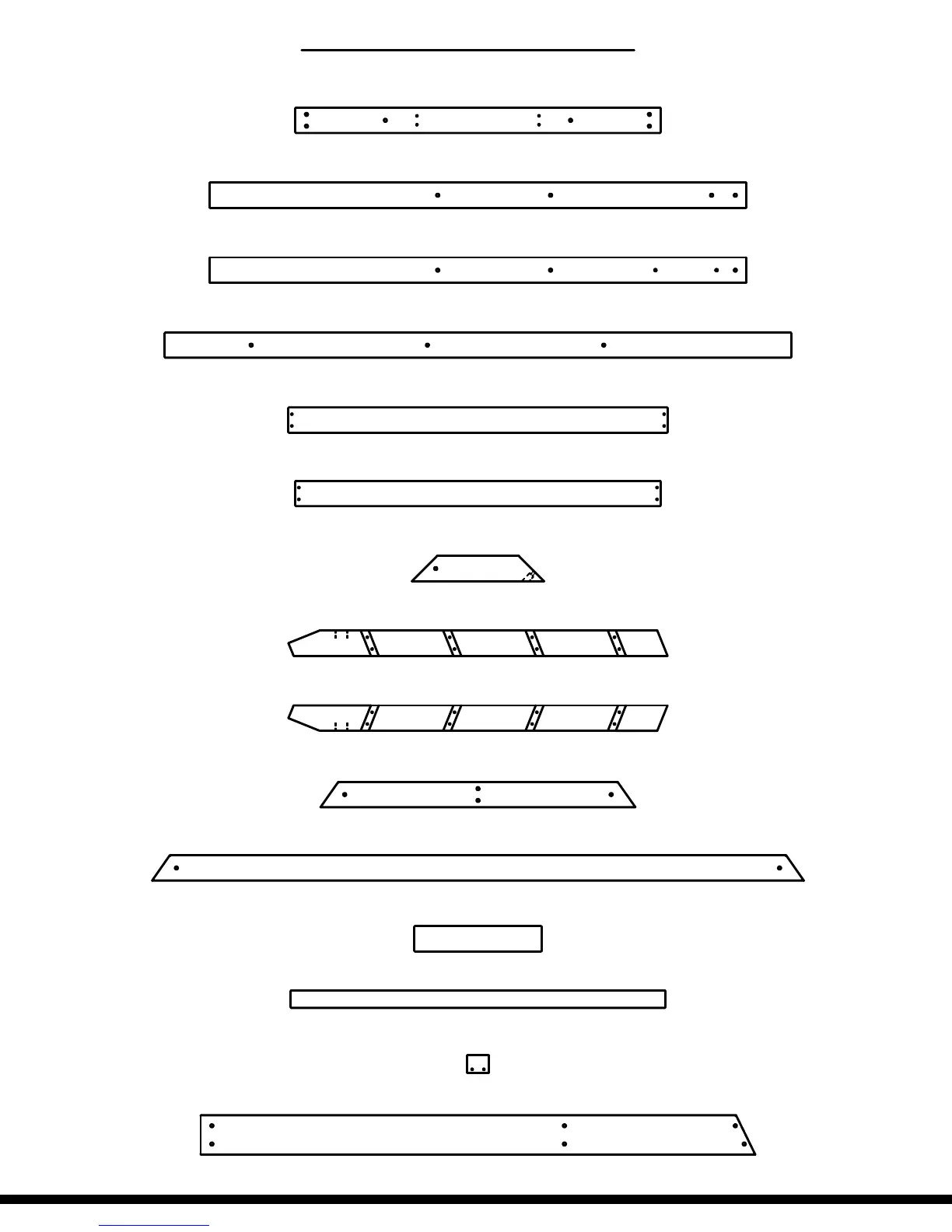

Wood Components
(NOT TO SCALE)
H5 - FLOOR SUPPORT - W4L07131
1"x3 3/8"x48 7/8" (24x86x1243)
(1)
H6 - UPRIGHT - W4L07147
1"x3 3/8"x72" (24x86x1828)
(1)
H7 - UPRIGHT - W4L07148
1"x3 3/8"x72" (24x86x1828)
(1)
H8 - ROOF RAIL - W4L07149
1"x3 3/8"x83 7/8" (24x86x2132)
(2)
H9 - ROOF RAIL - W4L07150
1"x3 3/8"x50 7/8" (24x86x1291)
(2)
H10 - ROOF RAIL - W4L07151
1"x3 3/8"x48 7/8" (24x86x1243)
(1)
H74 - LEFT UPRIGHT - W4L06930
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H75 - RIGHT UPRIGHT - W4L06931
1"x3 3/8"x50 3/4" (24x86x1290)
(1)
H79 - END SUPPORT - W4L06923
1"x3 1/2"x42" (24x86x1072)
(1)
H80 - GROUND BOARD - W4L07155
1"x3 3/8"x87 3/8" (24x86x2218)
(1)
J1 - FLOOR JOIST - W4L07139
1"x2 3/8"x50 1/4" (24x60x1275)
(2)
J2 - FLOOR SUPPORT - W4L06710
1"x2 3/8"x3" (24x60x76)
(4)
K1 - GROUND BOARD - W4L07122
5/8"x5 1/4"x74 1/4" (16x134x1888)
(1)
H81 - LADDER RUNG - W4L06933
1"x3 3/8"x17 1/8" (24x86x434)
(4)
H11 - DECK BRACE - W4L07296
1"x3 3/8"x17 3/4" (24x86x450)
(2)
