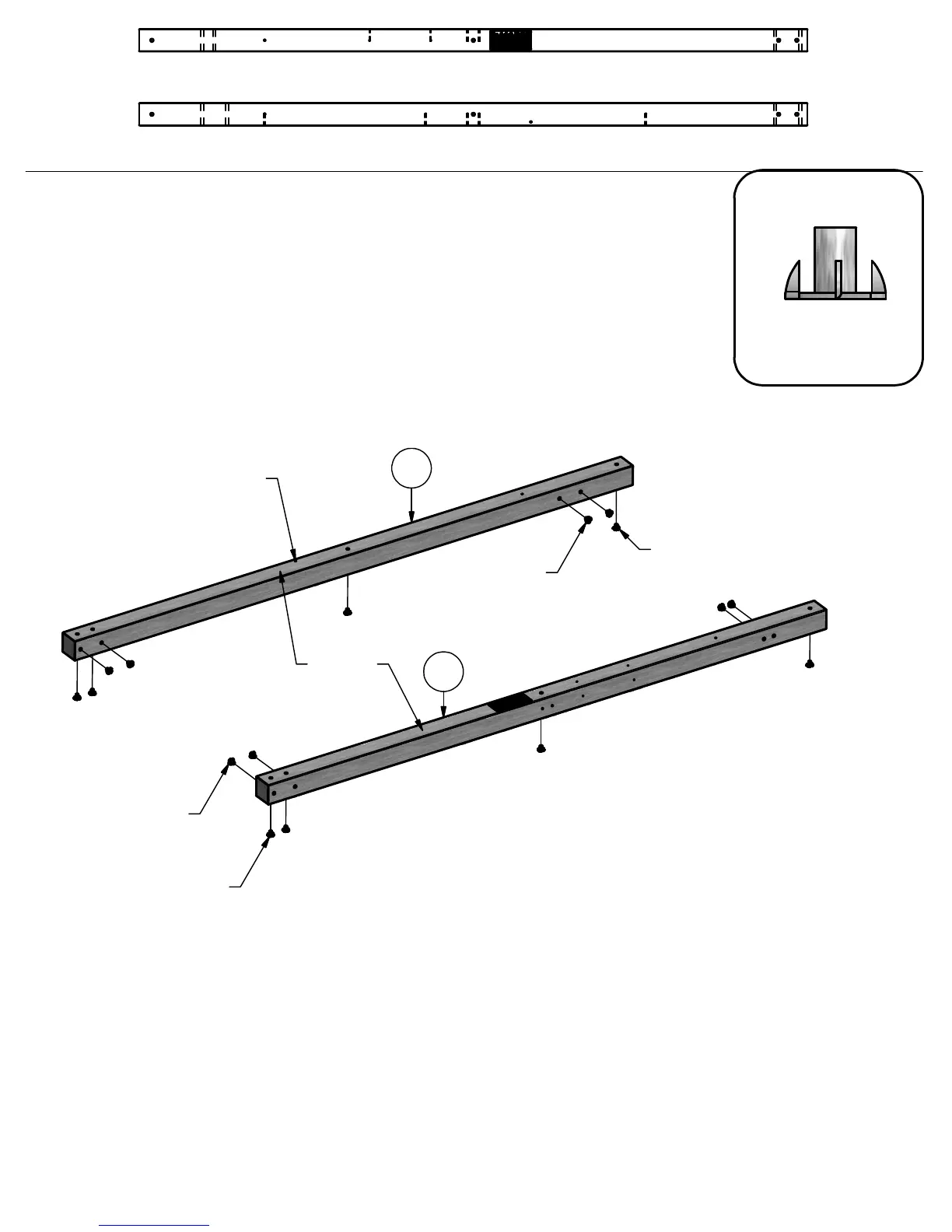

STEP 1
T-NUT 5/16
(4 PLCS)
T-NUT 5/16
(4 PLCS)
T-NUT 5/16
(4 PLCS)
T-NUT 5/16
(4 PLCS)
TOP
T
OP
T-NUT 5/16
(16)
B4
B1
FRONT
RIGHT
LEFT
B1 - UPRIGHT POST - W2A02004
3
"x3"x89 1/2" (76x76x2274)
(1)
B4 - UPRIGHT POST - W4L07121
3"x3"x89 1/2" (76x76x2274)
(1)
NOTE HOLE
LOCATION.
28
