Backyard 1705012 - Page 38

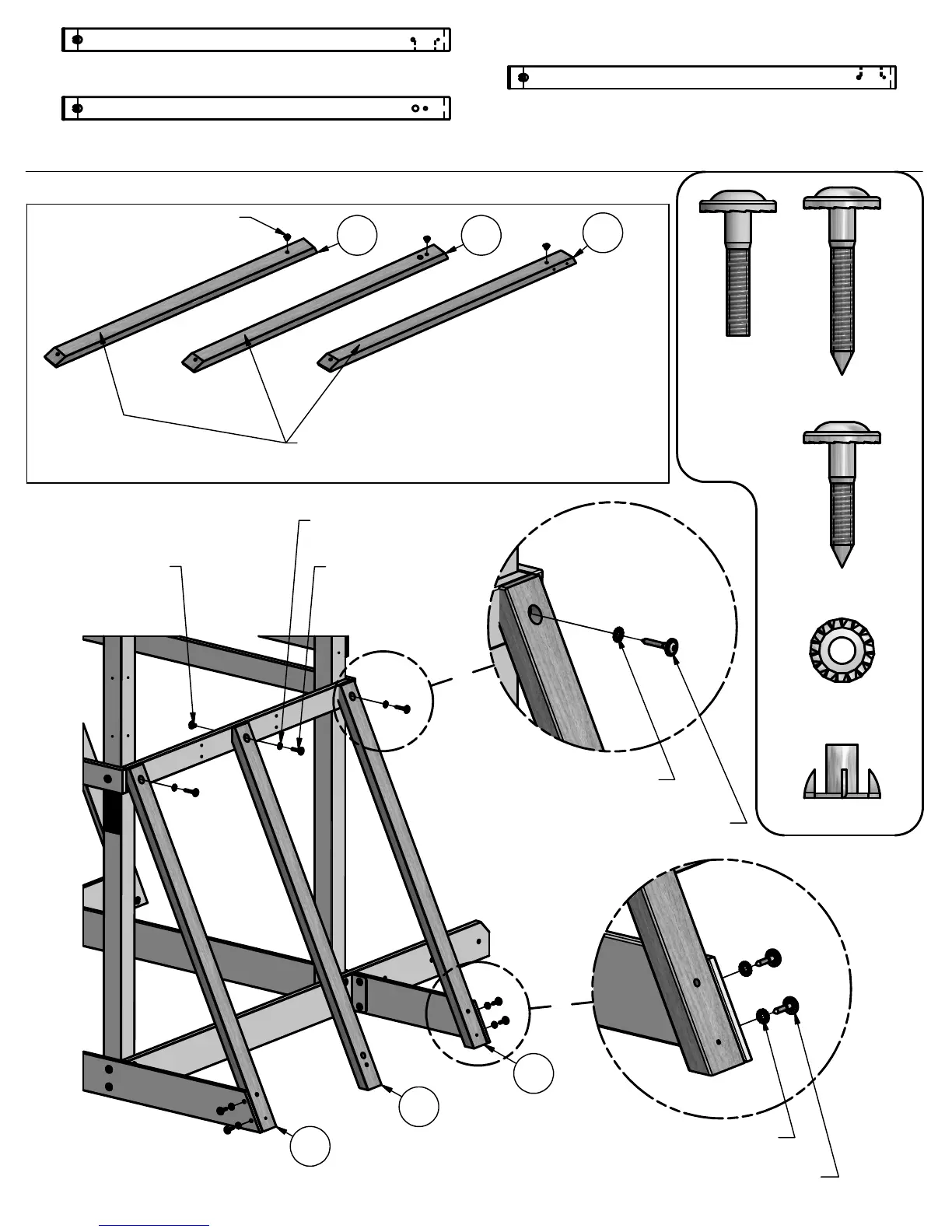

STEP 9
ASSEMBLE T-NUTS INTO BOARDS BEFORE INSTALLATION.
INSIDE SURFACE.
T-NUT 5/16 (4)
WASHER
L
OCK EXT
8x19
(7)
T-NUT 5/16
(3 PLCS)
E1 E2
E3
WASHER LOCK EXT 8x19
(2 PLCS)
LAG SCREW WH 5/16x2
(2 PLCS)
WASHER LOCK EXT 8x19
(4 PLCS)
LAG SCREW WH 5/16x1 1/2
(4 PLCS)
E1
E2
E3
LAG SCREW
W
H 5/16x1 1/2
(4)
LAG SCREW
WH 5/16x2
(2)
E1 - RAIL - W4L07132
1
3/8"x3"x51 7/8" (36x76x1318)
(1)
E2 - RAIL - W4L07133
1 3/8"x3"x51 7/8" (36x76x1318)
(1)
E3 - RAIL - W4L07134
1 3/8"x3"x51 7/8" (36x76x1318)
(1)
BOLT WH 5/16x1 1/2
(1 PLC)
WASHER LOCK EXT 8x19
(1 PLC)
T-NUT 5/16
(1 PLC)
BOLT WH
5/16x1 1/2
(1)
