Backyard GBT1321WRS User Manual

Need help? 1.800.762.1142
Do not return to place of purchase.
Recipes
BlueRhino.com/recipes
Replacement Parts
parts.BlueRhino.com /
1.800.762.1142
page no.
3
Parts List
1
Warming Rack
55-09-333
2
Lid Handle
55-09-327
3
Brand Plate
55-22-270
4
Temperature Gauge
55-07-233
5
Lid
55-23-018
6
Cooking Grid
55-09-325
7
Temperature Gauge
Support
55-09-378
8
Top Hinge (2)
55-15-330
9
Heat Plate
55-09-329
10
Burner
55-23-019
11
Igniter Wire*
55-11-036
12
Bottom Hinge (2)
55-15-329
13
Heat Plate Support (2)
55-09-330
14
Bottom Bowl
55-23-020
15
Bottom Bowl Heat Shield
55-11-348
16
Regulator/Control Knob
55-11-211
17
Lock
55-09-443
18
Left Leg Assembly
55-23-021
19
Leg Handle (2)
55-23-022
20
Right Leg Assembly
55-23-023
21
Igniter*
55-14-988
22
Foot A (2)*
55-11-072
23
Foot B (2)*
55-11-073
* Pre assembled

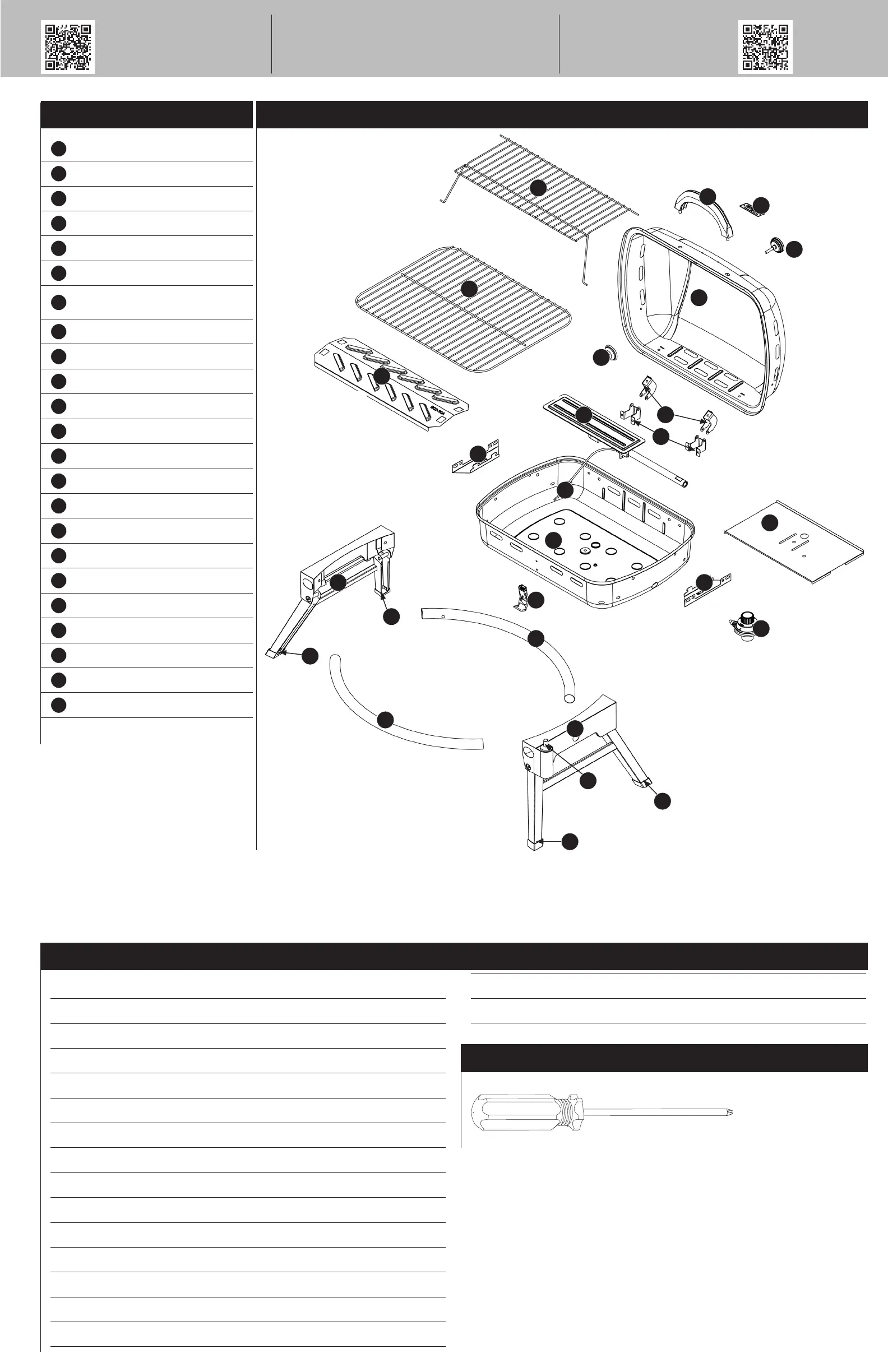

Exploded View
5
2
13
13
1
4
3
18
9
20
19
19
14
15
10
7
11
21
16
6
17
22
23
22
23
P
Pin
ø5x32 Nickel Plated
2 pcs
Q
Cotter Pin
ø1.4x38 Black
2 pcs
Tools Required for Assembly (Not Included)
#2 Phillips Head Screwdriver 1 pc
Hardware
A
Screw
M3x8 Nickel Plated Phillips Truss Head
2 pcs
B
Screw
M4x10 Nickel Plated Phillips Truss Head
2 pcs
C
Screw
M5x12 Nickel Plated Phillips Truss Head
6 pcs
D
Screw
M6x16 Nickel Plated Phillips Truss Head
4 pcs
E
Wing Bolt
M5x12 Nickel Plated
8 pcs
F
Wing Bolt
M6x8 Nickel Plated
1 pc
G
Wing Nut
M3 Nickel Plated
2 pcs
H
Wing Nut
M4 Nickel Plated
2 pcs
I
Wing Nut
M5 Nickel Plated
6 pcs
J
Wing Nut
M6 Nickel Plated
6 pcs
K
Washer
ø5 Nickel Plated
6 pcs
L
Washer
ø6 Nickel Plated
15 pcs
M
Washer
ø6 Heat Resistant Washer
8 pcs
N
Lock Washer
ø5 Nickel Plated
6 pcs
O
Lock Washer
ø6 Nickel Plated
7 pcs
8
12

Backyard GBT1321WRS Specifications

General

Brand	Backyard
Model	GBT1321WRS
Category	Grill
Language	English
