INTRODUCTION
Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers.
3

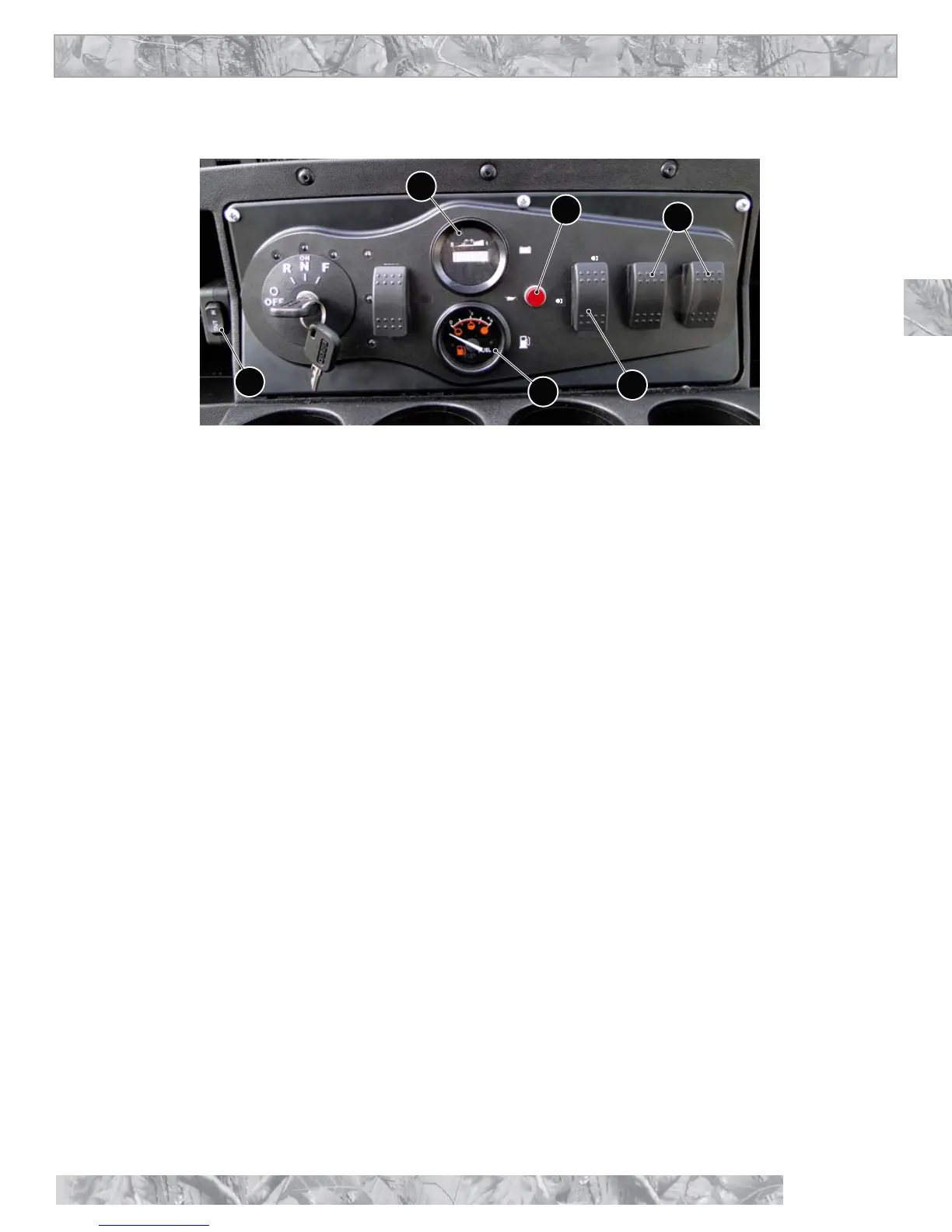

FEATURES
1. State of Charge Meter
Located in the dash panel to the right of the mode switch, above the gas fuel gauge. The state of charge meter indi-
cates the amount of usable power in the batteries, with ‘1’ indicating a full charge on the battery pack and ‘0’ indicat-
ing the battery pack needs to be charged.
2. Fuel Gauge
Located in the dash panel below the state of charge meter. The fuel gauge indicates the amount of gasoline in the fuel
tank, with ‘F’ indicating a full tank and ‘0’ indicating an empty fuel tank.
3. Low Oil Pressure Indicator Light
Located on the dash panel to the right of the fuel gauge. The light illuminates when the oil pressure is low. Check oil
level; if oil level is between ADD and FULL mark on dipstick, a mechanical problem exists within the engine and the
vehicle must not be driven. Contact a local distributor or authorized dealer.
4. Headlight/Blackout Switch
Located on the dash panel to the right of the low oil pressure light. The switch has three positions, ON, OFF and
BLACKOUT. In the ON position the headlights and all dash panel lights will be on, the OFF position will turn off the
headlights but leave the dash panel lights powered on, the blackout position will turn off power to all lights except the
State of Charge meter and the Low Oil Pressure Light.
5. Winch Switch (if equipped)
Located in the driver side glove box.
6. Accessory Switch Location
Rectangular hole plugs may be removed to accommodate switches for accessory items.
GAS
ELEC
4WD
BLACKOUT
OFF
ON
1
5
3
6
2
4
