Bad Boy MZ MAGNUM User Manual

PAGE 33
SECTION 6: CUTTING
DECK

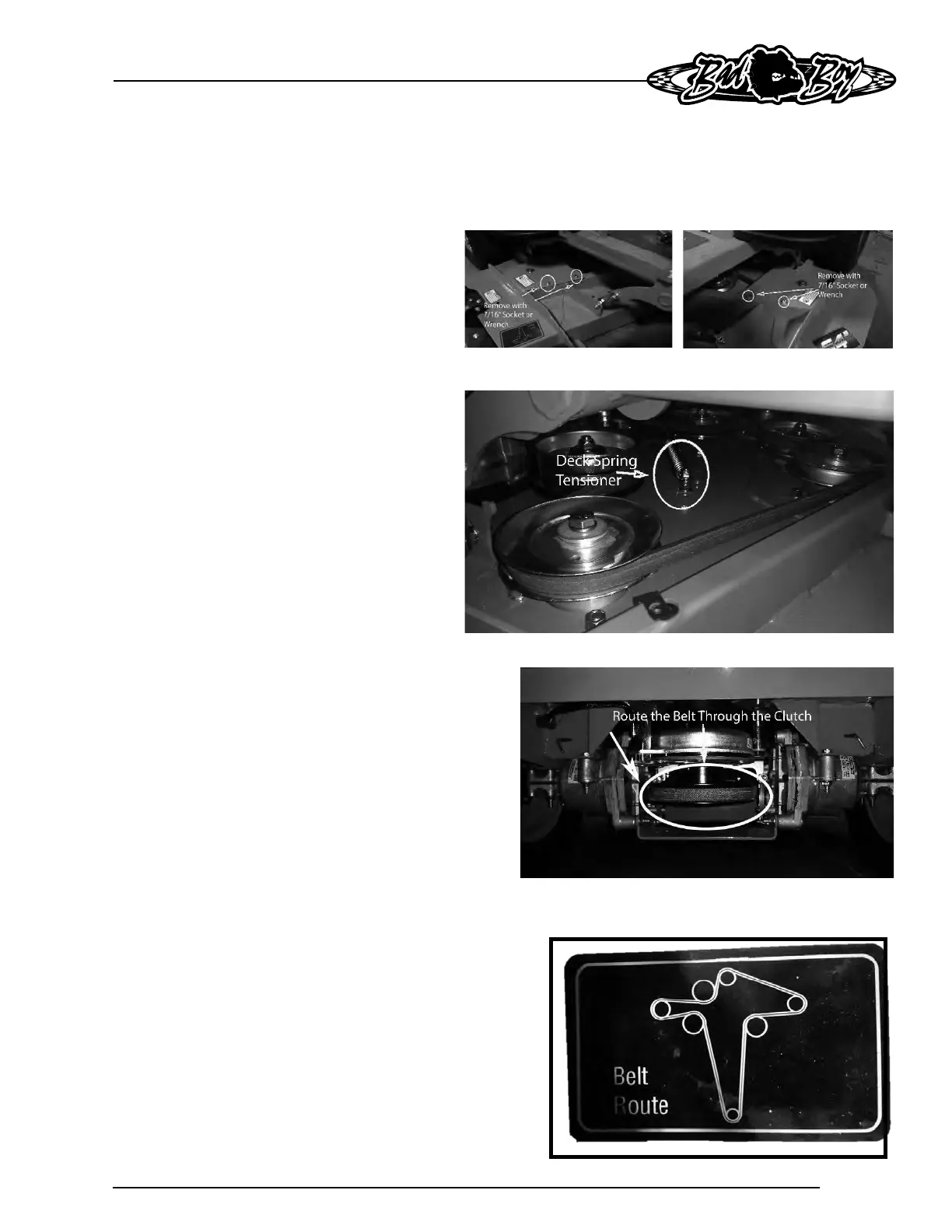

Deck belt removal:
(1) Remove ignition key.
(2) Lower the deck to its lowest position.
(3) Remove both the right and left
blade pulley
cover. Use a 7/16” socket or wrench to remove the
bolts. Then lift and remove the pulley covers.
(4) Remove the belt on the left side blade pulley
as facing the mower. Roll the belt off of the
pulley. Exercise caution while performing this
step as fingers can easily become caught between
the belt and pulley.
Deck belt installation:
(1) Follow steps 1 – 3 from the deck belt
removal section.
(2) Run the new belt from the clutch through
to the deck
(3) Route the belt according to the belt
routing sticker on the mower.

Bad Boy MZ MAGNUM Specifications

General

Horsepower	25 HP
Deck Material	7-gauge steel
Spindle Material	Aluminum
Blade Tip Speed	18, 500 fpm
Cutting Width	60 inches
Cutting Height	1.5 - 4.5 inches
Warranty	2-Year Bumper-to-Bumper / 3-Year Engine
