or left blade pulley cover. (5) While lifting up on the belt (as
shown in the photograph), rotate the pulley until the belt is
free of the pulley. Exercise caution while performing this step
as fingers can easily become caught between the belt and
PAGE 34

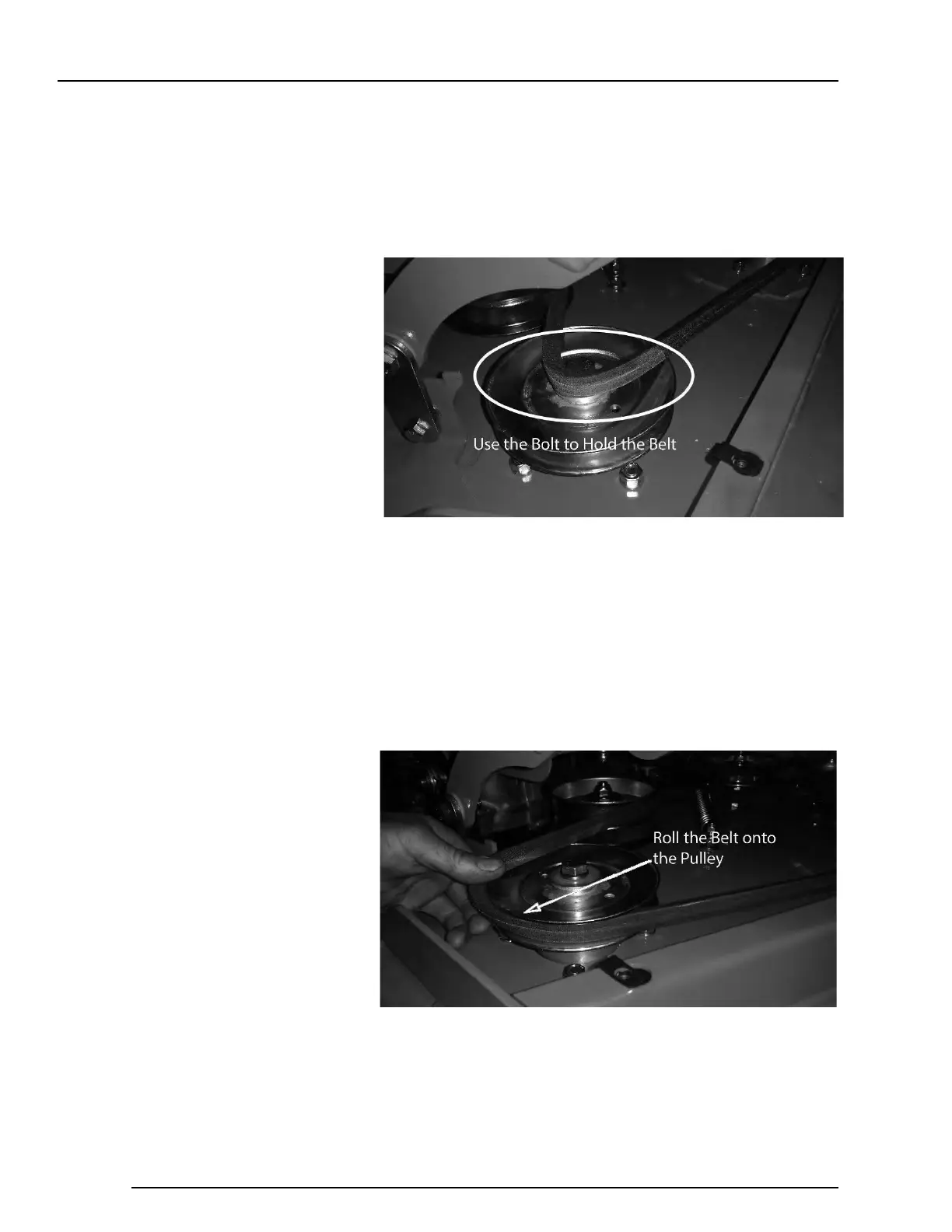

(4) Ensure the belt is on every pulley and
then place the belt on the bolt
of the
pulley on the left side and place pressure
on it and roll the pulley to allow the belt
to fall into place.
(5) Check to make sure the belt is on all the
pulleys and matches the belt
routing
sticker.
(6) Place the pulley covers back onto the deck.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Bad Boy MZ MAGNUM and is the answer not in the manual?

Bad Boy MZ MAGNUM Specifications

General IconGeneral
Horsepower25 HP
Deck Material7-gauge steel
Spindle MaterialAluminum
Blade Tip Speed18, 500 fpm
Cutting Width60 inches
Cutting Height1.5 - 4.5 inches
Warranty2-Year Bumper-to-Bumper / 3-Year Engine
