Caravan Service Systems
3
3.1 THE WATER SYSTEM
3.1.1 Water Supply
All models are supplied with a 12 volt submersible pump, controlled by a pressure switch. The water
inlet is located in the off-side exterior wall, protected by a lift up lid.
3.1.2 The Submersible Pump
(Discovery & Ranger)
Operation
Ultraflow Compact

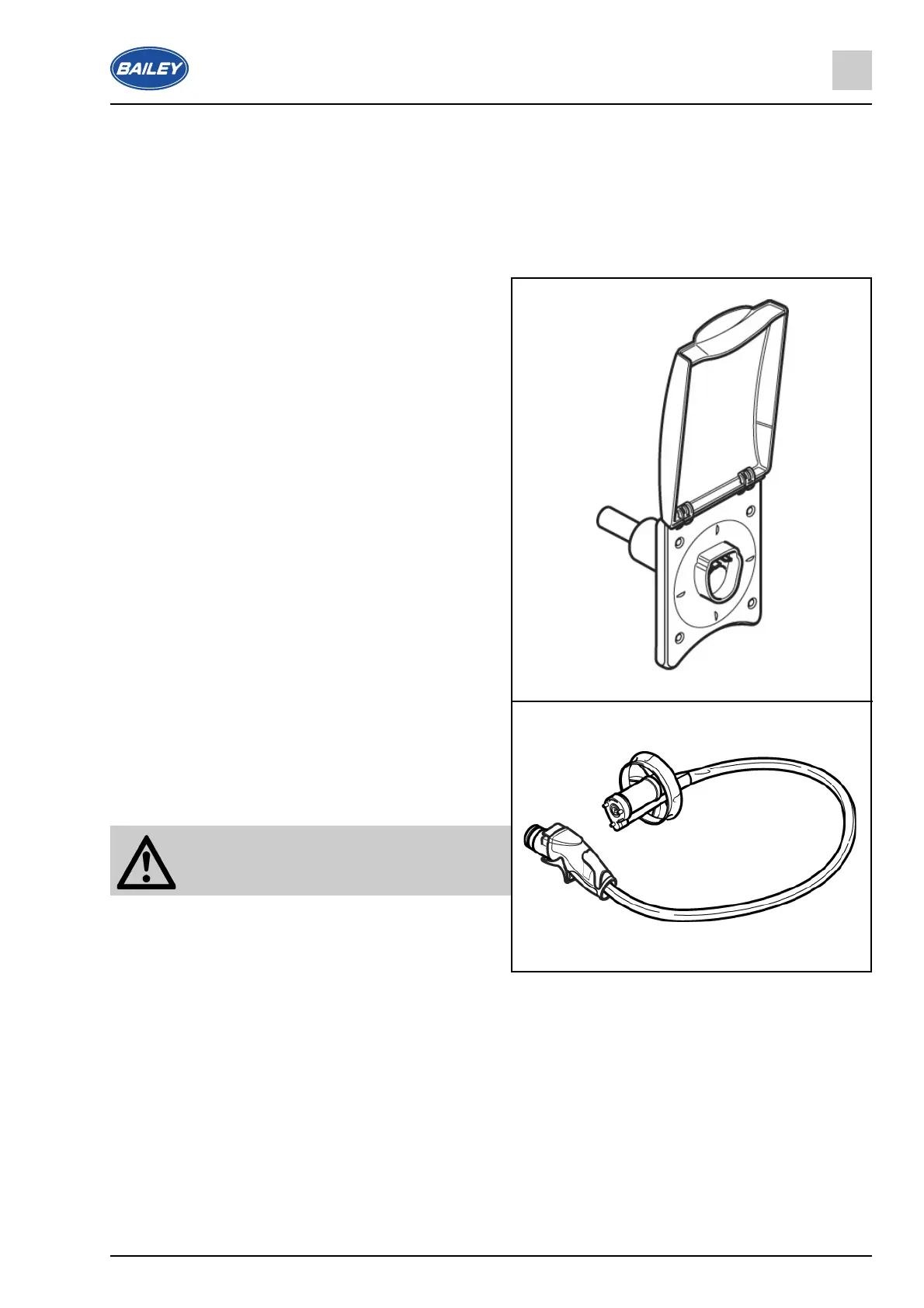

● Raise the lid, clean both the water socket and the
plug of the pump assembly.
● Plug the pump connector into the socket. Turn the
top security clip anti-clockwise and the bottom
security clip clockwise to lock the plug into place.
● Place the pump into the water container, ensuring
that it is fully submerged before operating the
system. A dust cover is available to stop
contaminates falling into the water container.
● To remove the pump assembly from the Crystal
Compact Housing, release the security clips and
pull the hose adaptor by using the finger grips
provided.
● To remove the pump assembly, raise the lid to
clear the plug shoulder from the lid recess, hold
the pump at the plug whilst retracting it from the
socket.
▲ Do not remove by pulling the hose or
electric cable.
