Bailey Caravan - Al-Ko Secure

4-41
Caravan Equipment
4
4.14 AL-KO SECURE

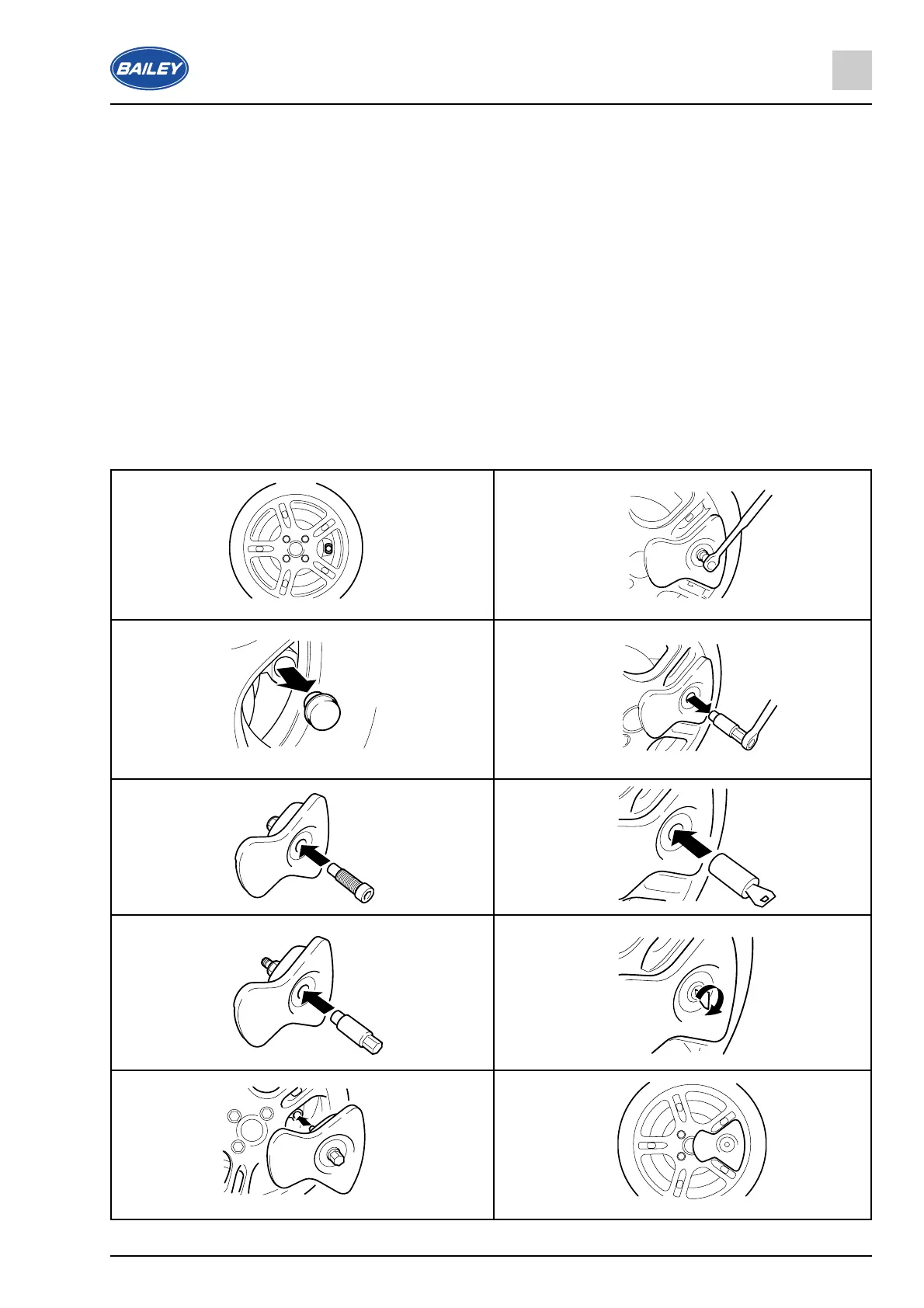

● Align the wheel so that the receiver can be
seen in the centre of the rim opening. DO NOT
use the rim opening in which the tyre valve is
fitted (Fig 1).
● Unscrew the plastic cap from the receiver and
store in the tool kit box. (When AL-KO Secure
is not in use, always screw the plastic cap in
place). (Fig 2).
● Insert the locking bolt into the rim specific
insert (Fig 3).
● Insert the locking bolt socket key (Fig 4).
● Line up the locking bolts and assembly with
the receiver (fig 5).
● Tighten the locking bolt socket using the wheel
spanner provided (or torque wrench as shown)
to wheel torque (ideally 86 Nm). (fig 6).
● Remove the locking bolt socket key. (fig 7).
● Insert barrel lock (Fig 8).
● Hold the lock fast and lock (Fig 9).
● The AL-KO Secure is now fitted (fig 10).
Fig 1
Fig 8
Fig 7
Fig 5
Fig 6
Fig 4
Fig 3
Fig 2
Fig 9
Fig 10
