Bailey DISCOVERY - Page 133

34
THE SERVICE MANUAL
PAGE LEFT BLANK INTENTIONALLY
21
Copyright Notice
This drawing is copywrite and may not be reproduced,wholly or in part, without prior consent of BCA LTD.
RANGE: MODEL:
E
D
C
B
F
A
E
D
C
B
F
A
8765 4 3
2
8765
4 3
2
1

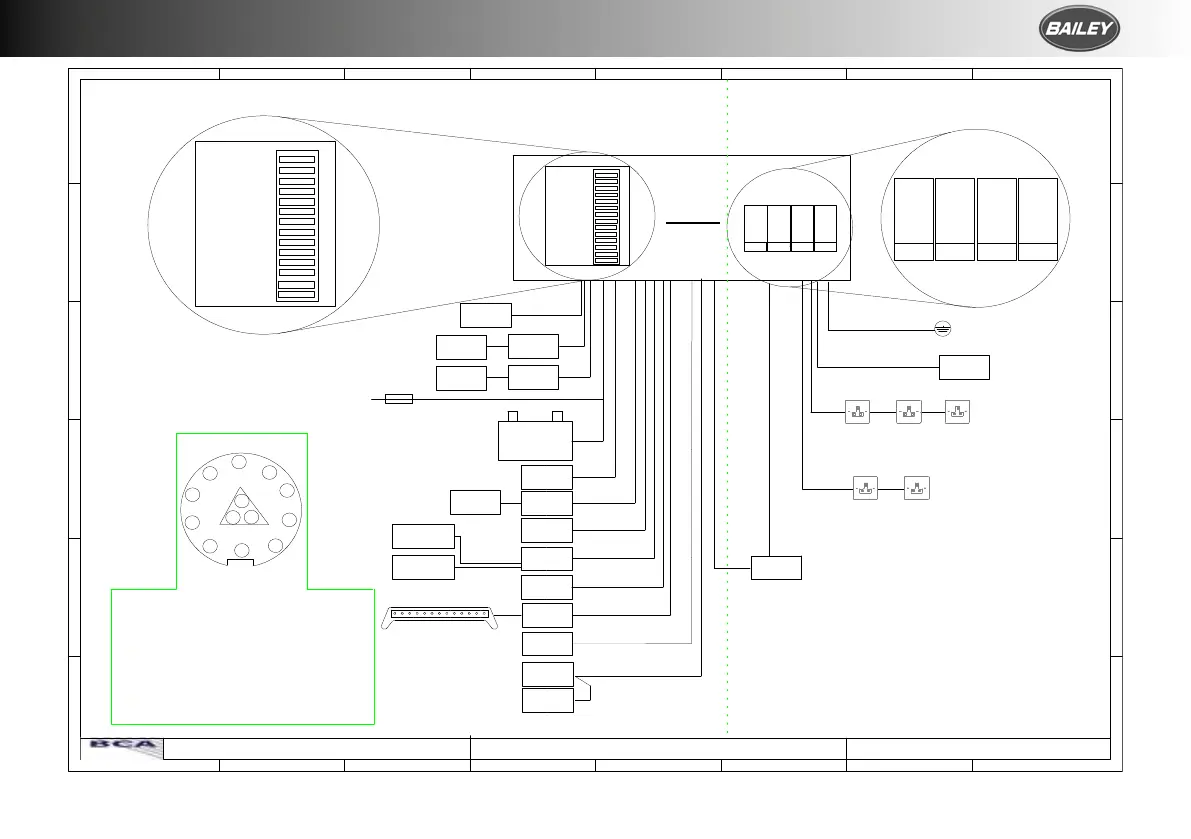

BAILEY
DISCOVERY
LIGHTS 1
LIGHTS 2
SPARE
AUX SOCKET
PUMP/TOILET
RADIO/AERIAL
BOILER
SPARE
IGNITIONS
SPARE
CAR
ALARM
FRIDGE IGN
VAN BATT+
FRIDGE
10
10
5
10
5
5
10
10
5
5
15
5
2
20
15
EARTH
13 PIN PLUG
FROM CAR
BATTERY
AUX
SOCKET
TOILET
LIGHTS
MAINS
INLET
12v
240v
PDU
8
1
4
2
3
12
11
10
9
7
6
5
13
VIEWED FROM THE REAR
13 PIN PLUG
12v FUSES
230V SOCKETS
FRIDGE
COMBI
HEATER
25A
RCD
SOCKETS
MAIN
ISOLATOR
230v MCB'S AND RCD
10A
MCB
16A
MCB
HEATER
BOILER
6A
MCB
CHARGER
230v MCB'S AND RCD
230V SOCKETS
6A
MCB
10A
MCB
16A
MCB
25A
RCD
CHARGER
HEATER
BOILER
SOCKETS
MAIN
ISOLATOR
LIGHTS
LIGHTSLIGHTS
SOLAR
CONNECTION
AUX
SOCKET
COOKER
RADIO
SPEAKER
SPEAKER
FRIDGE
CONTROL
PANEL
PUMP
AWNING LIGHT
1. LEFT INDICATOR 1.5mm YELLOW
2. FOG LIGHT 1.5mm BLUE
3. EARTH 2.5mm WHITE
4. RIGHT INDICATOR 1.5mm GREEN
5. RIGHT TAIL/SIDE LIGHT 1.5mm BROWN
6. BRAKE LIGHT 1.5mm RED
7. LEFT TAIL/SIDE LIGHT 1.5mm BLACK
8. REVERSE LIGHT 1.5mm ORANGE
9. 12V PERMANENT 2.5mm BLUE/BROWN
10. 12V IGNITION FEED 2.5mm RED/BROWN
11. EARTH FOR POSITION 10 2.5mm GREEN/WHITE
12. UNUSED
13. EARTH FOR POSITION 9 2.5mm BLUE/WHITE
ALARM
SIREN
12v FUSES
LIGHTS 1
LIGHTS 2
SPARE
AUX SOCKET
PUMP/TOILET
RADIO/AERIAL
BOILER
SPARE
IGNITIONS
SPARE
CAR
ALARM
FRIDGE IGN
VAN BATT+
FRIDGE
10
10
5
10
5
5
10
10
5
5
15
5
2
20
15
BLU/BRN
GRN/BLK
BLU
R
PUR
YEL
ORG
GRN/BLU
GR/BLK
BLK/WHT
R/ORG
PUR
YEL/BLK
RED/BRN
ORG/BLK
BLU
3CORE WHITE
3CORE WHITE
3CORE WHITE
3CORE ORANGE
GREEN/YELLOW
