ADJUSTMENT OF REAR BRAKE

1. To make adjustment, turn rear adjusting nut clockwise to increase braking or

counterclockwise to decrease braking.

2. Brake shoes should be replaced by a qualied service technician once brake

shoes are worn.

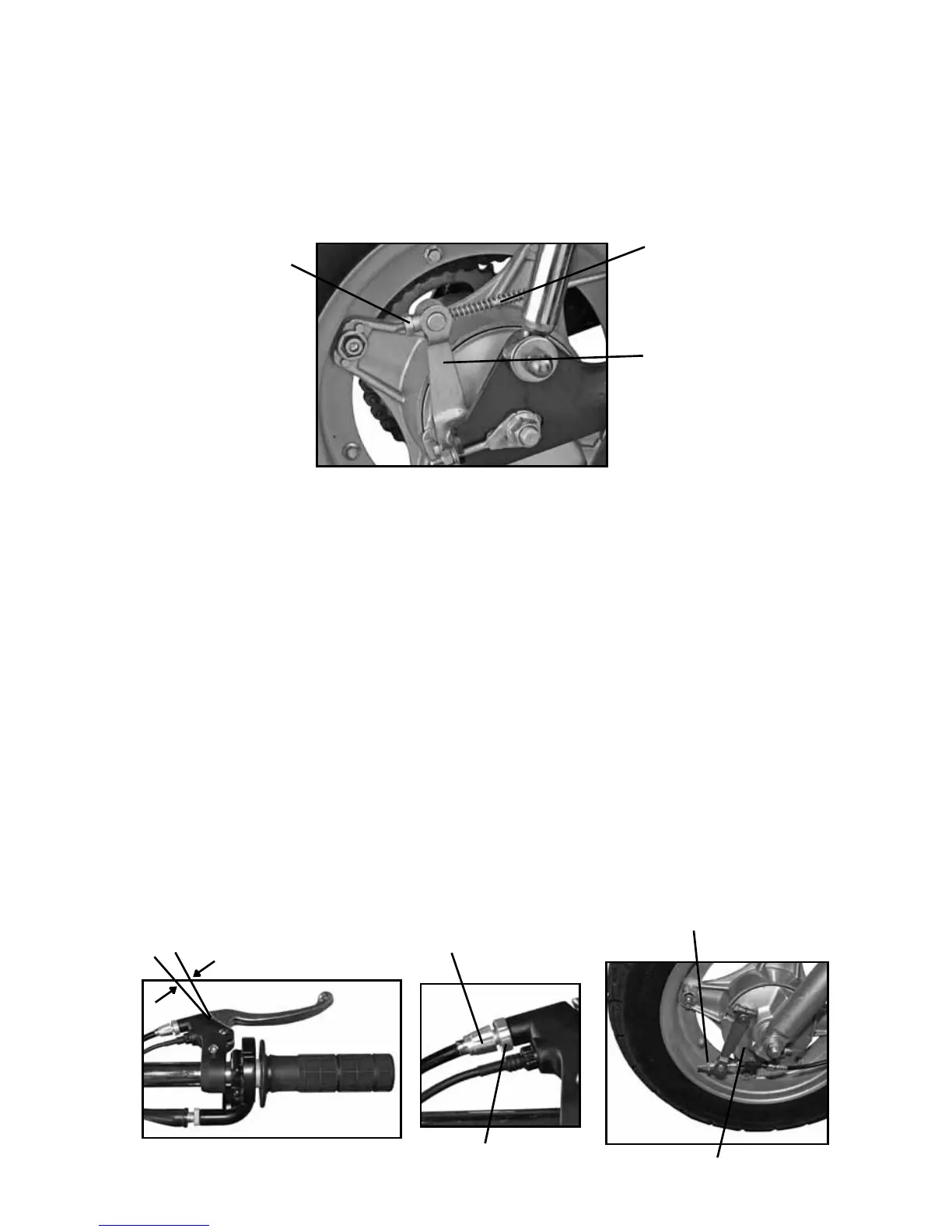

Brake cable

Rear brake arm

Rear brake

adjusting nut

ADJUSTMENT OF FRONT BRAKE

1. The front hand brake lever should have free operating movement of

5 - 7 mm (0.2 - 0.3 in.) .

2. To make adjustment on brake lever, loosen jam nut then turn adjusting nut

counter-clockwise to reduce and clockwise to increase the free operating

movement of the front hand brake lever

3. To make adjustment on brake cable tension, turn adjusting nut located on the

front hub assembly. Clockwise to increase braking and counter-clockwise to

decrease braking.

4. Brake shoes should be replaced by a qualied service technician once brake

shoes are worn.

5 - 7 mm free play (0.2 - 0.3 in)

Adjusting nut

Jam nut

Front brake hub
