CAUTION : Fit cover as described
above to ensure proper fitment.

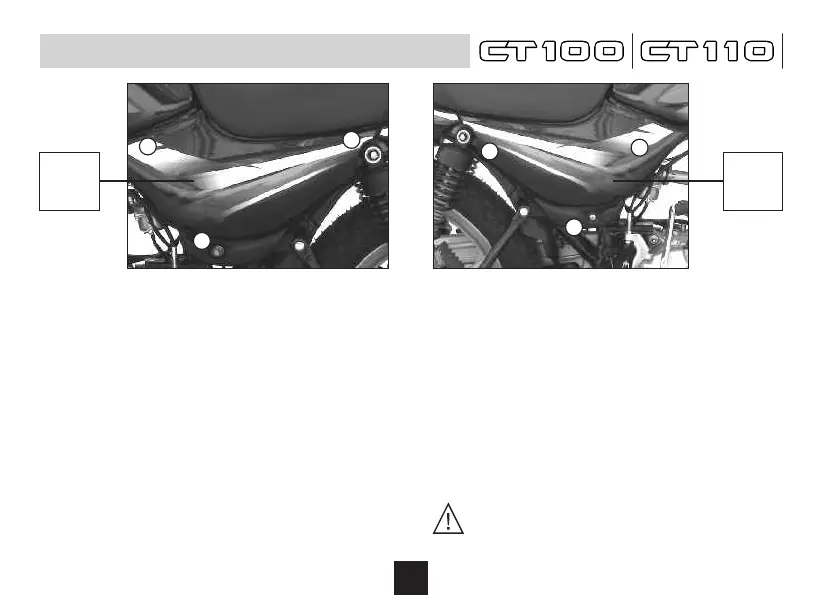

Fitment of Side Cover LH & RH
• Match slot (B) provided on rear side of
Side Cover with bracket provided on
Frame and slide Side cover backward
(towards Tail lamp).
• Match Lug (A) provided on front side of
Side cover with hole provided on Fuel
Tank and press Side cover inside.
• Match the lock plate of Side cover
properly with bracket on Frame and Lock.
(For Side cover LH).
• For Side cover RH fitment, adopt the
same procedure and fit the screw (D)
properly.
10
Fitment of Side Covers
D
A
B
A
C
Side
Cover
LH
B
Side
Cover
RH
To Next Page
