400-196 | 07.05.18

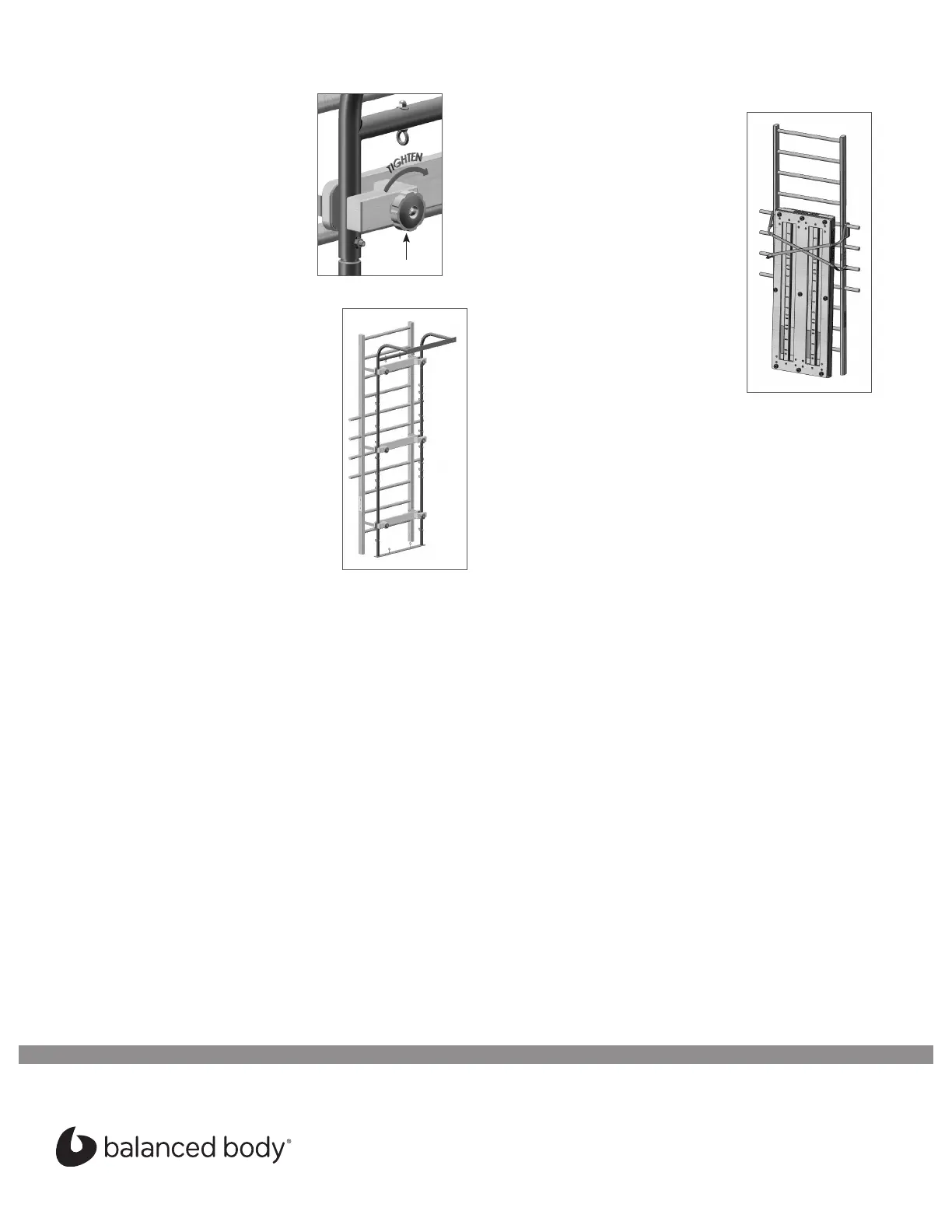

STEP 5
Secure the ladder by tightening knobs.
Repeat on all knobs for each bracket. Fig 5
When complete, the ladder for Wall Tower will
look like Fig 6 (reverse view).
Fig 5
Clamp Knot
Fig 6
VERTICAL STORAGE OPTION USING THE HANDLES
AND STRAPS
To store your CoreAlign vertically, move the
carts to the end nearest the ladder and
attach all resistance bands. Move the unit
about 8-10” away from the ladder. On each
side of the ladder, place the loop-end of the
ropes on the long dowel, second from the
bottom. Tip the unit until it is on its end. Note:
A mat may be used underneath to prevent
any scratches to the floor. Diagonally wrap
each rope around the unit and secure the
handle on the top long dowel. See Figure 7.
QUESTIONS?
Please call Balanced Body Technical Support
at 1-800-PILATES (U.S.) or +1-916-388-2838
Fig 7
