Test Menu Access (S1, Switch 1 ON) Service Technician ONLY.
DANGER! HIGH VOLTAGE WILL BE ACCESSIBLE! SERVICE TECHNICIAN ONLY!
While the system is running, move DIP Switch 1 (on S1 on the Main circuit board) to ON.
The system will enter Test Mode.
Moving DIP Switch 1 to OFF will exit Test Mode.
To Change Software Setups:

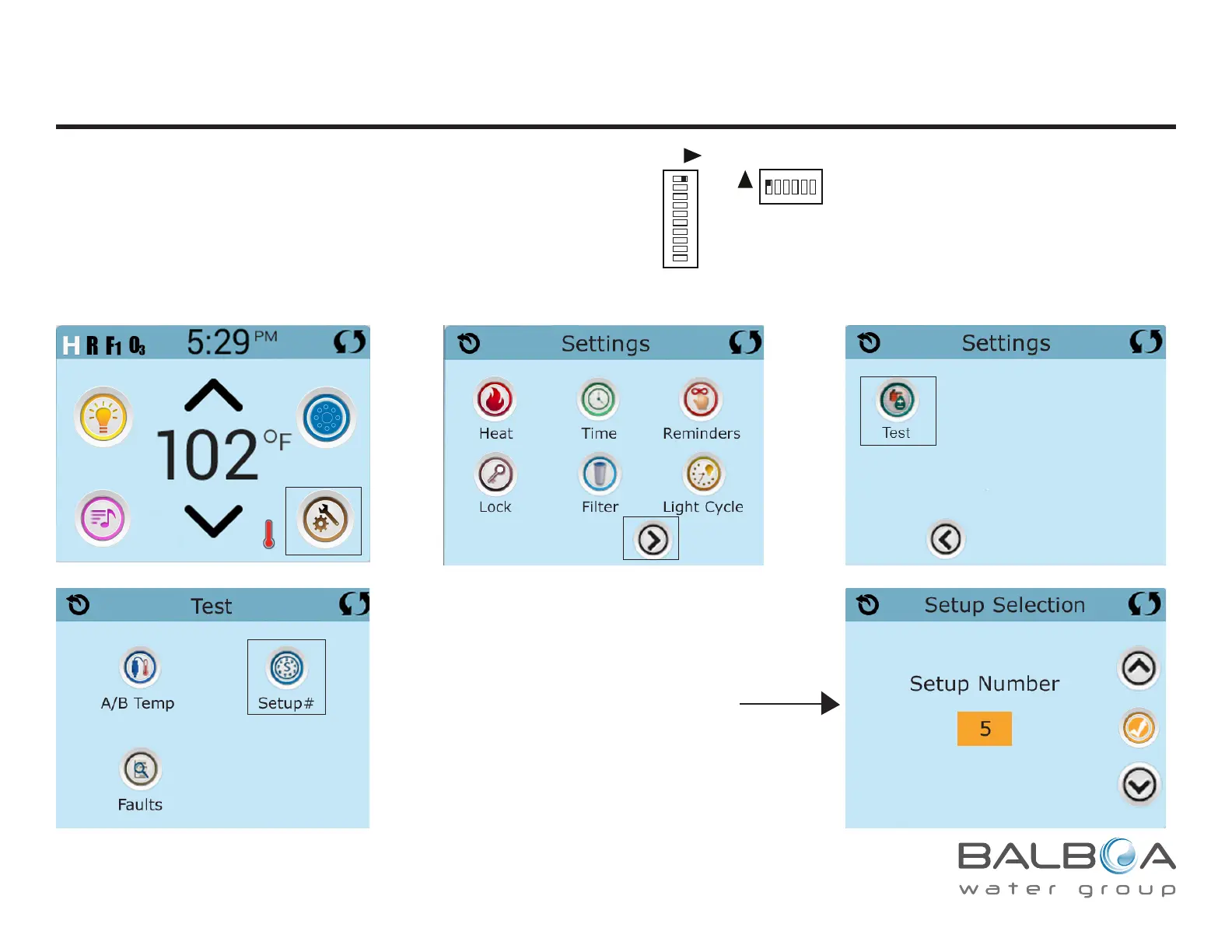

While in Test Mode, press the indicated icons to move from screen to screen.
ON
1
10
S1
Changing Software Setups with spaTouch™ Icon-Driven Panels
Once on the Setup Selection screen, press the Up or
Down icon to select the desired Setup Number, then
press the Check Mark icon to confirm and to have
the spa restart.
After the system restarts, you may see a message
that “The settings have been reset”; this is normal
after changing Setups with DIP Switch 6 in the OFF
position. Press “Clear” to dismiss this message.
The example screens shown here are from the
spaTouch 1 Icon-Driven Panel, but the screens
on the spaTouch 2 Panel are similar. The main
difference is that the spaTouch 2 display is
wider.
ON
1 6
S1
As soon as Switch #1 is placed
in the ON position, the temperature will show
“T” after it instead of F or C, indicating the
System is in Test Mode
To Next Page
