3. Calculate the air capacity according to comprehensive situation
 
 
hmQQQ /1
3
321012


1
Q
： the maximum consumption of the main using air equipment

0
Q
： the average consumption of other using air equipment
This method can be used for the individual high air consumption equipment. Calculate the capacity of the
air compressor station which
1
Q
and
0
Q
are very different.
Among the three calculation methods, each industry should choose it according to the characteristics of the
industry, the traditional habit and experience.
When the purification system with a heat or no heat regenerative adsorption dryer, the air capacity should
be each increased 8% ~ 10% or 15% ~ 20% regeneration air consumption.
In plateau area, the air capacity should also take consider of the height of the region multiplied by the
following table 2-3 plateau correction coefficient.
Plateau correction coefficient
altitude(m)
0
305
610
914
1219
1524
1829
2134
2438
correction
coefficient
1.0
1.03
10.7
1.10
1.14
1.17
1.20
1.23
1.26
Chapter Three: Machine System Structure,
Process And Function

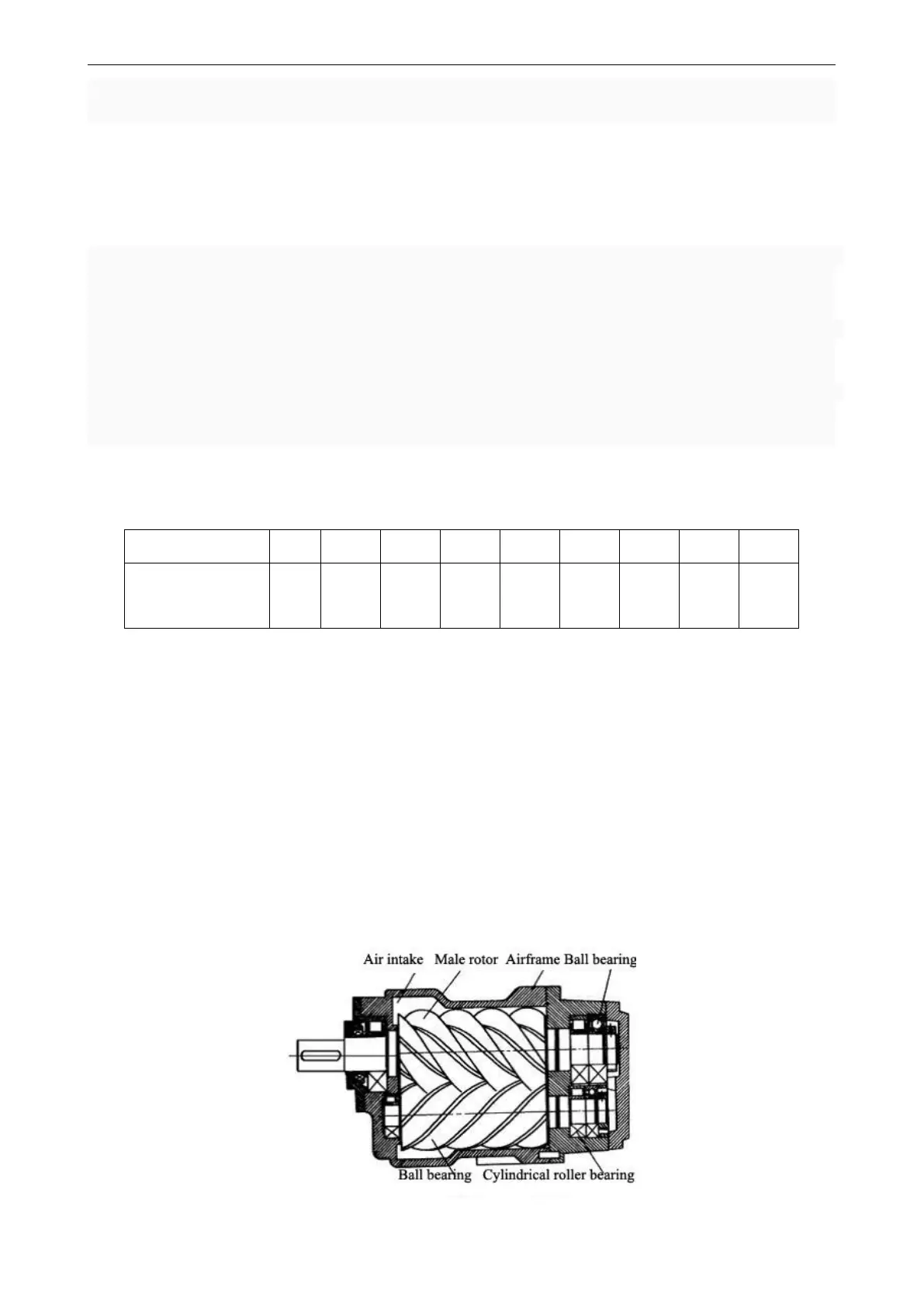

a、airend structure and working principle
1、 the schematic diagram of screw air compressor air end
