Operation 4-17
MN2417
Table 4-9 Setpoints Continued
Start RPM
“Firing” speed when iL controller stops cranking (starter goes OFF).
Step: 1% of nominal RPM; Range: 5 − 50 %
Starting POil When reached controller stops cranking (starter goes OFF).
Step: 0,1 psi; Range: −100 − 10000
Note: There are three conditions for stop cranking: Starting RPM,
StartingPOil and D+ (when enabled). Starter goes off when any
of these conditions is valid.
Prestart time Time of closing of the PRE−START output prior to the engine start.
Set to zero if you want to leave the output PRE−START open.
Step: 1s; Range: 0 − 600 s
MaxCrank time Maximum time limit of cranking. Step: 1s; Range: 1 − 60 s
CrnkFail pause Pause between crank attempts. Step: 1s; Range: 5 − 60 s
Crank attemps Max number of crank attempts. Step: 1; Range: 1 − 10
Idle time Idle time delay starts when RPM exceeds Start RPM . Start fail is detected
when during Idle state RPM decreases below 2.
During the Idle time timer running the binary output IDLE/NOMINAL is
opened, when it elapses the IDLE/NOMINAL output closes.
Binary output IDLE/NOMINAL opens during Cooling period again.
Step: 1 s; Range: 0 − 600 s
Note: If the IDLE function not supported on the governor, set the Idle time
nevertheless to minimum 5s to avoid Underspeed possibly
caused by instability of the engine short after start.

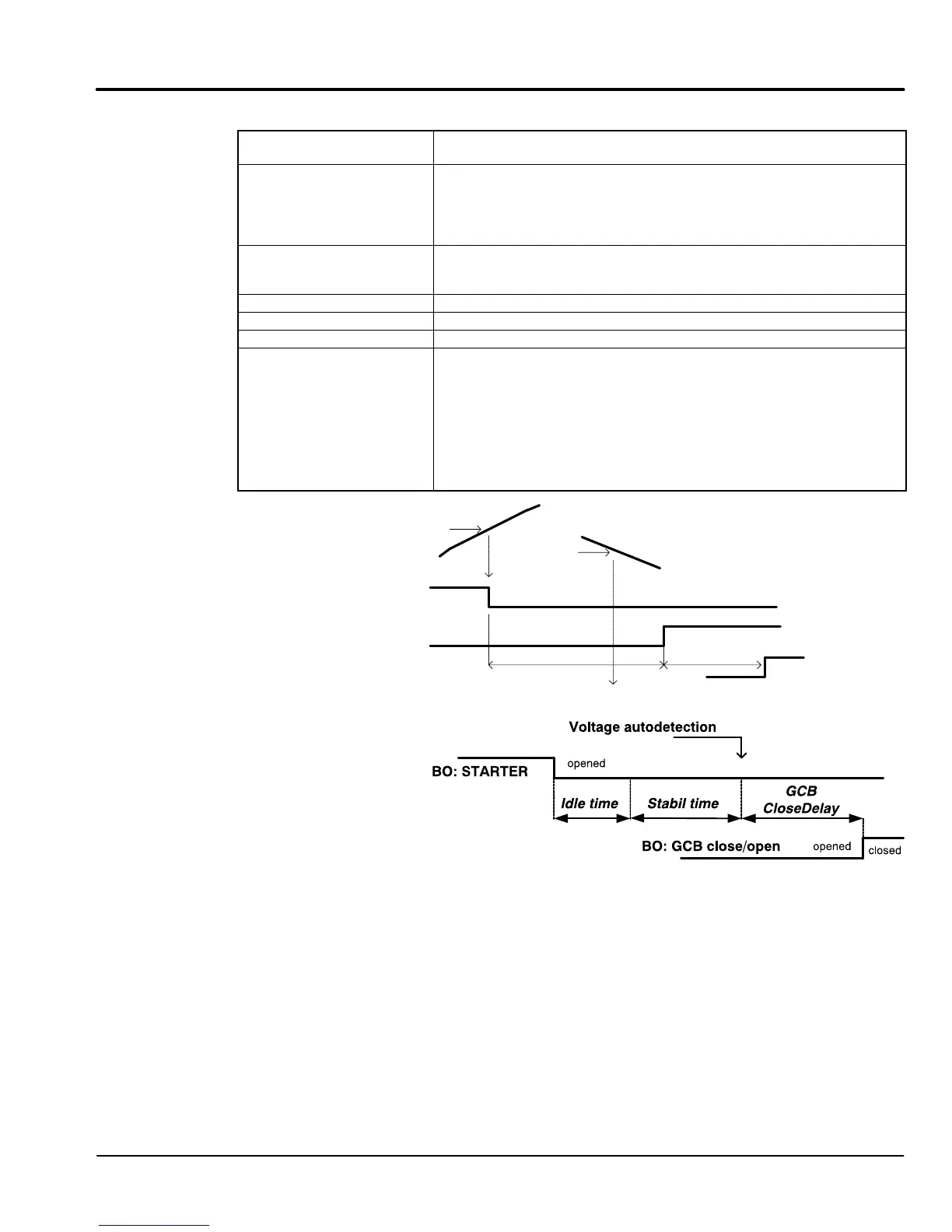

Start RPM
RPM
BO Starter
BO IDLE/RATED
RPM = 2
RPM
Start Fail
Idle tim e M in stab tim e
Electric protections
activ e
Idle Function
Stabil Time
