3.6 Technical data
PHYSICAL FEATURES
Mixer:
Dimensions: 135 x 300 x 120 mm (H x W x D)
Weight: 2.5 kg
Nitrous oxide/N
2
O inlet: DISS connector
oxygen-O
2
inlet: DISS connector
Bag T:
Diameter of the bag and
scavenger system connectors:
Back of the Bag T:
Gas administration
Maximum ow: 18 l/min.
Demand mask connector: 100 to 250 l/min.
PRODUCT VARIANT 1:
Baldus® Touch 70 (for installation)
Minimum O
2
concentration: 30%
Maximum O
2
concentration: 100%
Minimum N
2
O concentration: 0%
Maximum N
2
O concentration: 70%
PRODUCT VARIANT 2:
Baldus® Touch 60 (for installation)
Minimum O
2
concentration: 40%
Maximum O
2
concentration: 100%
Minimum N
2
O concentration: 0%
Maximum N
2
O concentration: 60%
PRODUCT VARIANT 3:
Baldus® Touch 50 (for installation)
Minimum O
2
concentration: 50%
Maximum O
2
concentration: 100%
Minimum N
2
O concentration: 0%
Maximum N
2
O concentration: 50%
PRODUCT VARIANT 4:
Baldus® Bag T
Compatible with Baldus® Touch 50/60/70, Matrx MDM-D
Cabinet Mount Digital Flowmeter, Porter Digital MDM,
Porter MXR-1 Cabinet-Mounted Flowmeter, Porter
MXR-D Digital Flowmeter and Accutron Digital Ultra™
Flushmount nitrous oxide unit

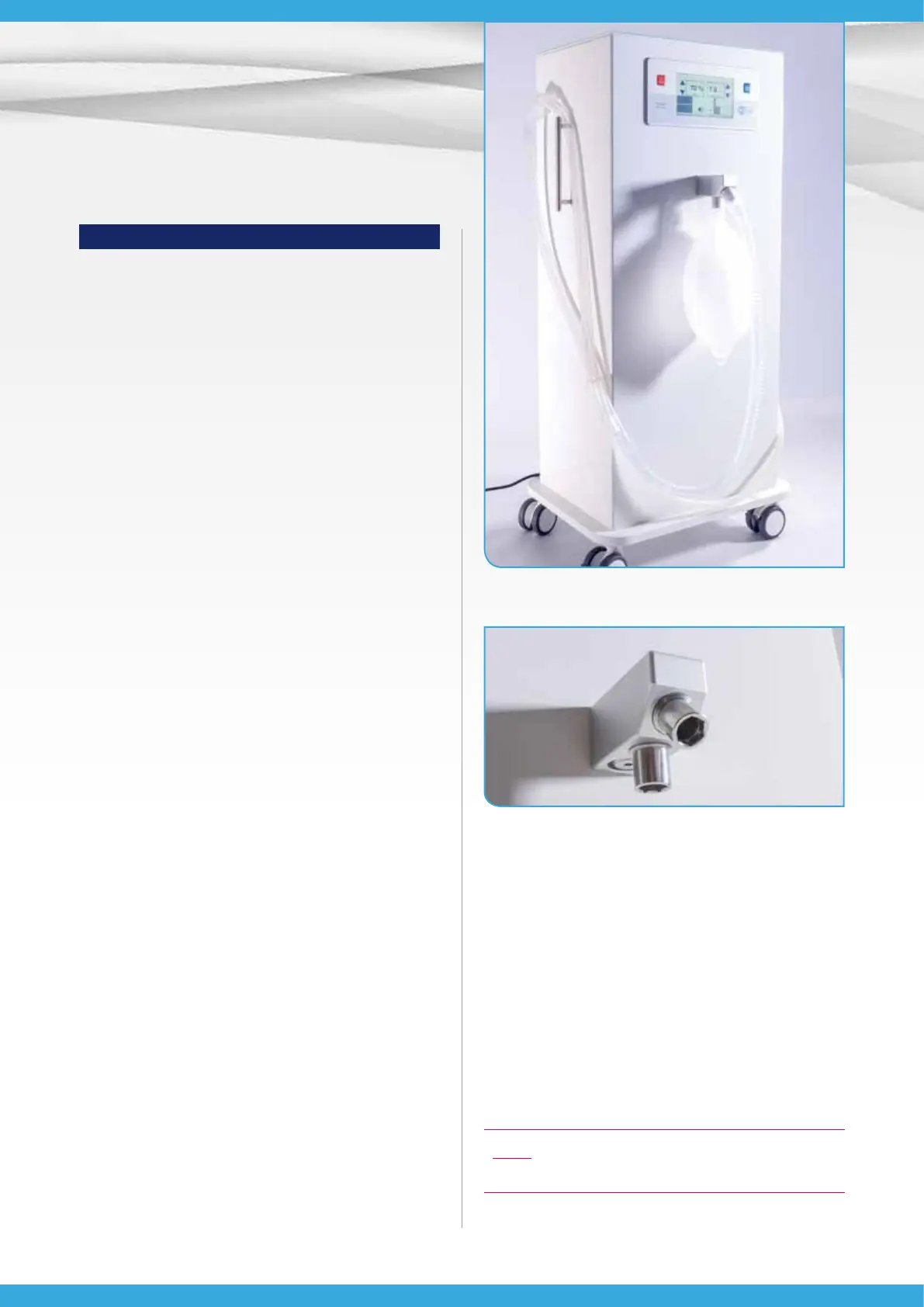

Fig. 10: Product variant 4: Baldus® Bag T
Fig. 9: Product variant 1-3: Baldus® Touch
(for installation)
Electrics
Input voltage: 110/230V AC
Input frequency: 50 – 60 Hz
Fuses: 2 x 1A, inert
Max. ambient temperature: 50°C
Power pack:
Protection class: I
Ampere: 1.0-0.55A
Inlet pressure
Inlet pressure: min. 3.5, max. 5 bar
The outlet pressure is less than 0.3 bar.
NOTE: All specications are subject to tolerances
during manufacture.
Non-continuous operation
