42

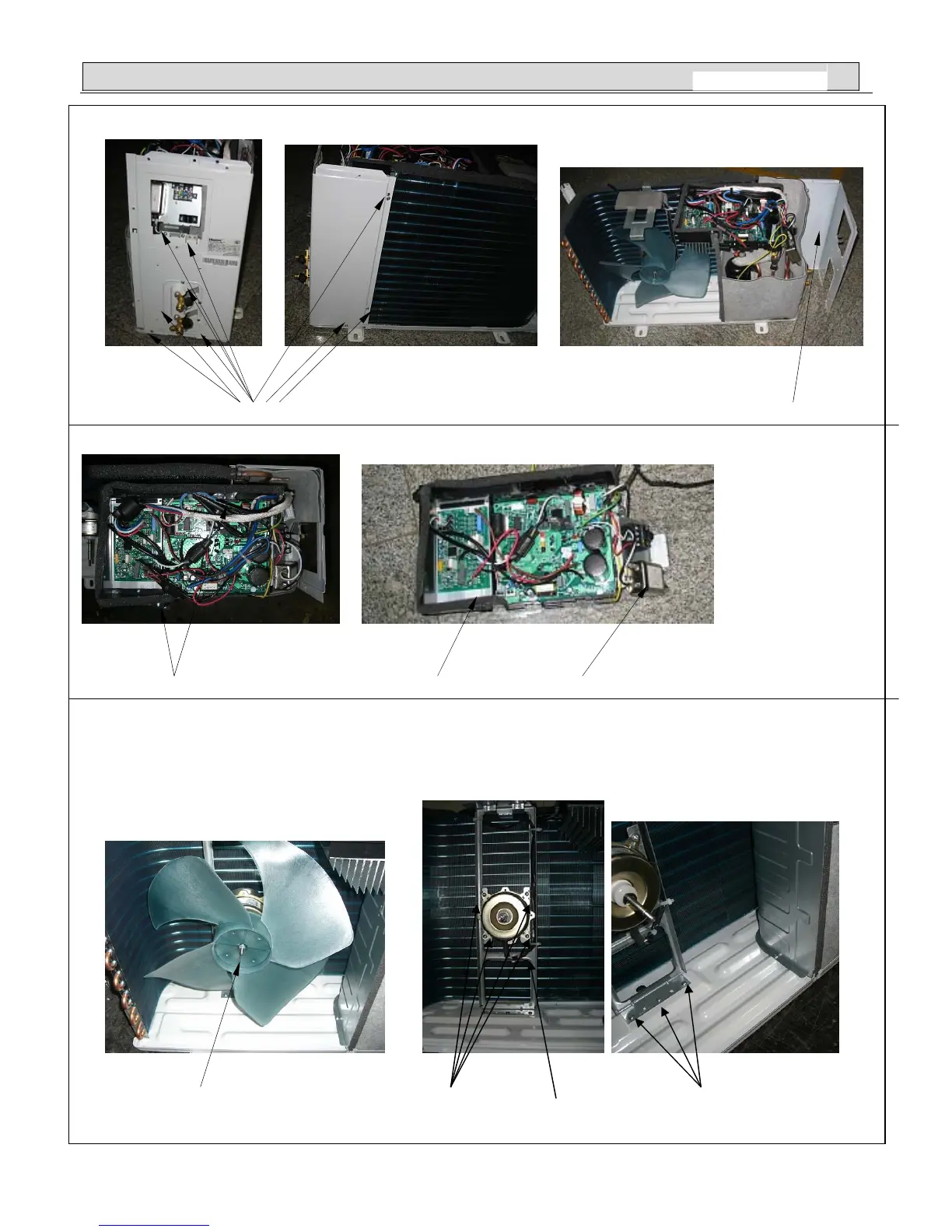

2) Take out the 11 screws of the side panel and remove the side panel.
11 screws side panel
4. Take out the 2 screws and remove the electrical control box .
2 screws electrical box filter
5. Remove the fan，fan motor，fan support。
1）Take out the special nut of the fan and remove the fan.
2）Take out the 4 screws of the fan motor and remove the fan motor.
3）Take out the 3 screws of the fan support and remove the fan support.
Special Nut 4 screws fan support 3 screws
BSGI 09(12)
