Balluff BIS C-6002 User Manual

71
71
english

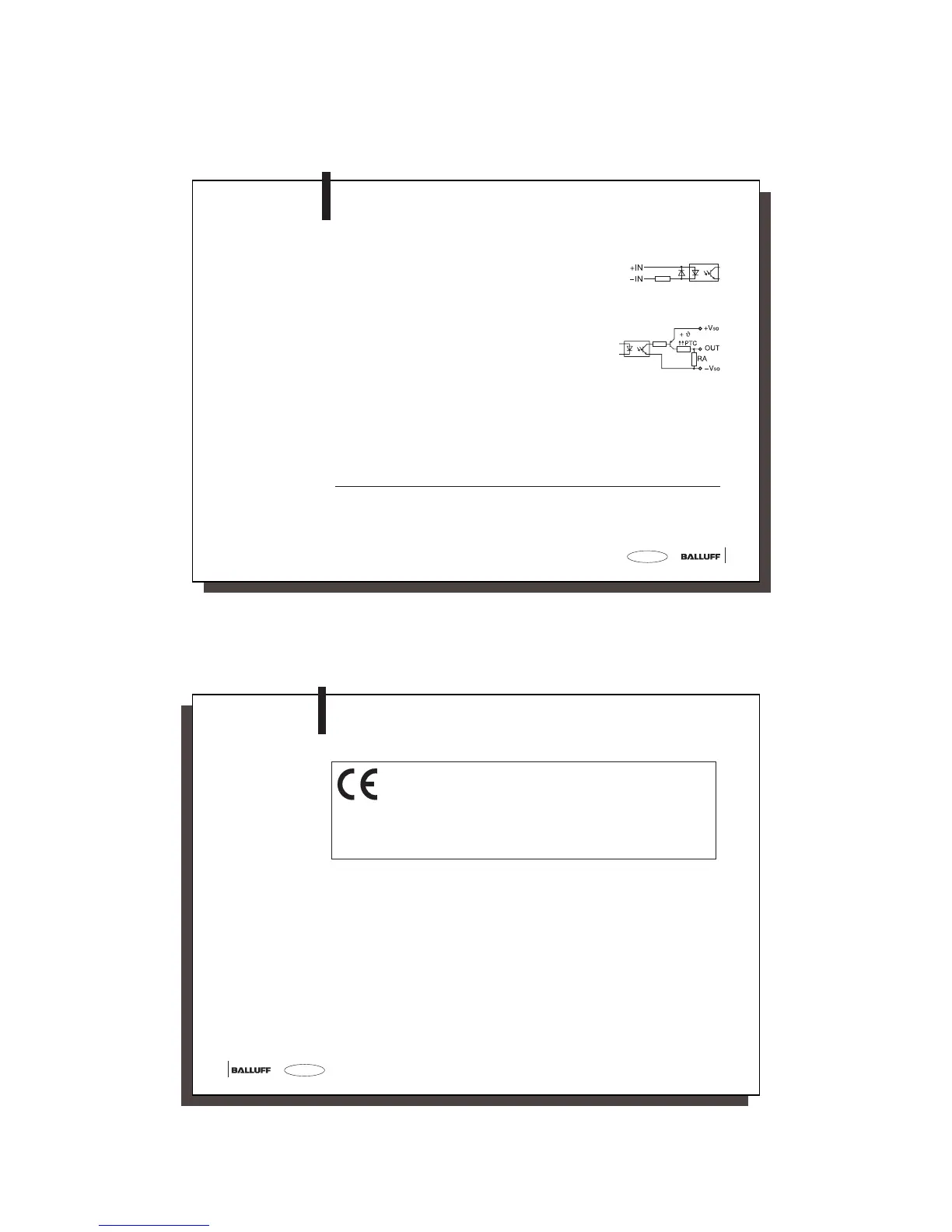

Digital Input (+IN, –IN) Optocoupler isolated
Control voltage active 4 V to 40 V
Control voltage inactive 1.5 V to –40 V
Input current at 24 V 11 mA
Delay time, typ. 5 ms
Control outputs CT Present 1 and 2 Optocoupler isolated
Output circuit PNP (current sourcing)
Operating voltage V
SO
(external) for output DC 24 V ± 20 %
Ripple ≤ 10 %
Output current max. 20 mA
Voltage drop at 20 mA approx. 2.5 V
Output resistance R
A
10 kΩ to –V
SO
Service interface RS 232
Read/Write Head integrated, BIS C-65_ and following *);
option for mounted adapter BIS C-650 *) 2 x connectors 4-pin (male)
for all read/write heads BIS C-3_ _
with 4-pin connector (female),
except BIS C-350 and BIS C-352
option for mounted adapter BIS C-670 *) 1 x connector 8-pin (male)
for one of the read/write heads
BIS C-350 or BIS C-352
BIS operating messages:
Ready / Bus active LED red / green
CT1 Present / operating LED green / yellow
CT2 Present / operating LED green / yellow
Electrical
Connections
(continued)
BIS C-6002
Technical Data
Function Displays
*) rotatable by 90 degrees
with KL2 only:
C60_2-019_818217_0806-e.p65
72
english72
The CE-Mark is your assurance that our products are in conformance with the
EU Directive
2004/108/EC (EMC-Guideline)
and the EMC Law. Testing in our EMC Laboratory, which is accredited by the DATech for
Testing of Electromagnetic Compatibility, has confirmed that Balluff products meet the
EMC requirements of the Generic Standard
EN 61000-6-4 (Emission) and EN 61000-6-2 (Noise Immunity).
BIS C-6002
Technical Data
