Configure IO-Link Ports for Distributed Modular I/O
4
Once communication is established you now need to tell the device how it will be used for Distributed Modular I/O. Every port can be used for
standard I/O and is defaulted to this configuration. To tell the master block to look for an IO-Link device, there are some configuration bytes that must
be setup.
Description Byte Bit
7 6 5 4 3 2 1 0
For Standard I/O: 0x00
For IO-Link: 0x01
0 IO-Link 2 IO-Link 1 0 0 0 0
1 IO-Link 4 IO-Link 3 0 0 0 0
2...97 Most customers do not use this
functionality. It is used for validation of
slave device details like: Vendor ID,
Device ID or Serial Number. Please
consult the manual for details.

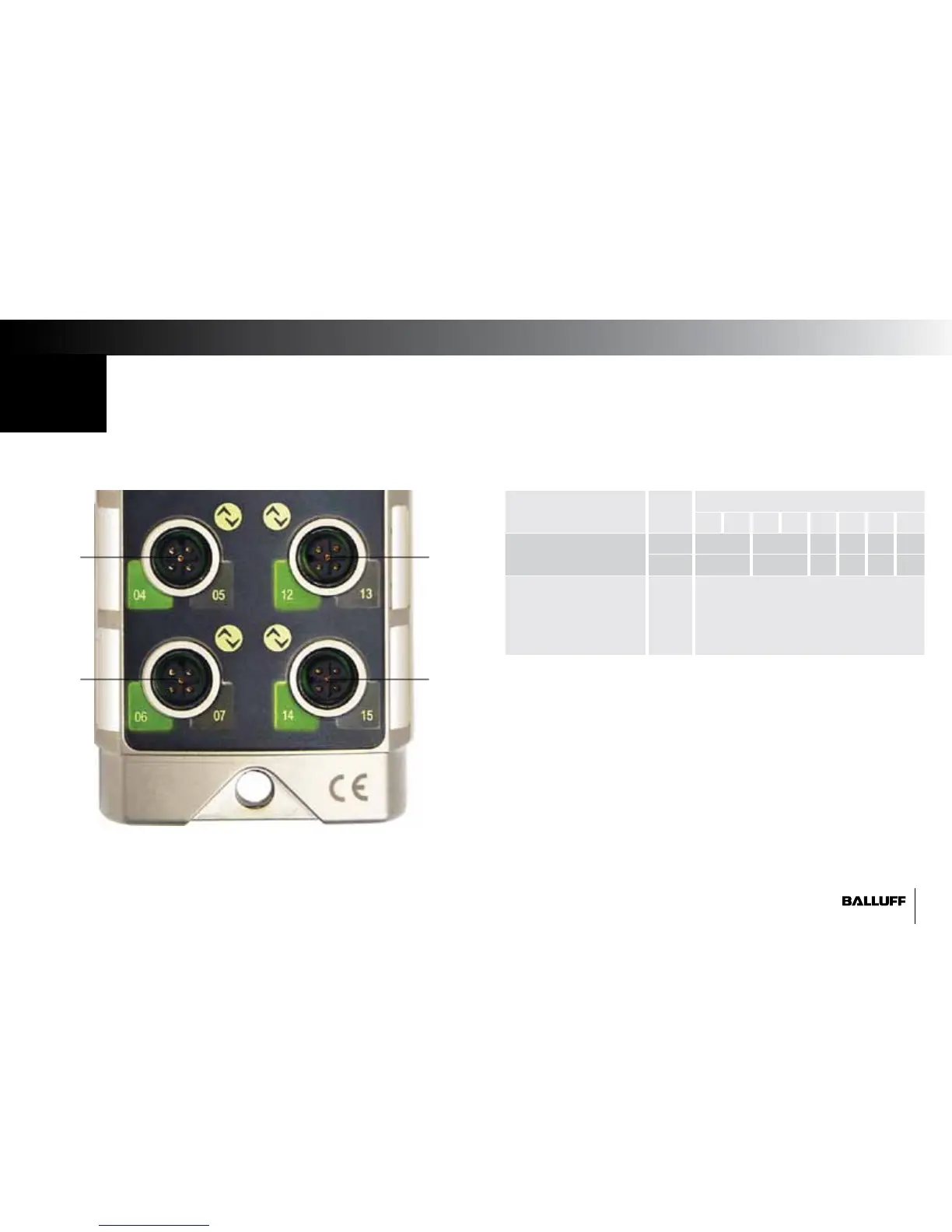

Configuration Data BreakdownReference Image for the IO-Link Port numbering
IO-Link 1 IO-Link 3
IO-Link 2
IO-Link 4
