4.1 Construction
Electrical connection: The electrical connection is made
via a cable or connector (see Type code on page23).
Housing: Housing containing the processing electronics.
Magnet: Defines the position to be measured on the
waveguide. Magnets are available in various models and
must be ordered separately (see Accessories on
page21).
Measuring length: Defines the travel/length range
available. Sensors with measuring lengths from 25mm to
4000mm are available.
4
Product description
LED
15
13 18
50
68
16
M12
M16
~80 ~80~250 34.8
24.8
~250
70
2)
67
2)
1)
Not included in scope of delivery
2)
Unusable area
3)
only for BTL PF1400-… included in scope of delivery
Mounting clamps
3)
with insulating bushes and
ISO4762M5x25 cylinder head screws, max.
tightening torque 2Nm
Magnet
BTL5-A-3800-2
1)
Measuring length
Null point End point
S32 S35 Cable
S15

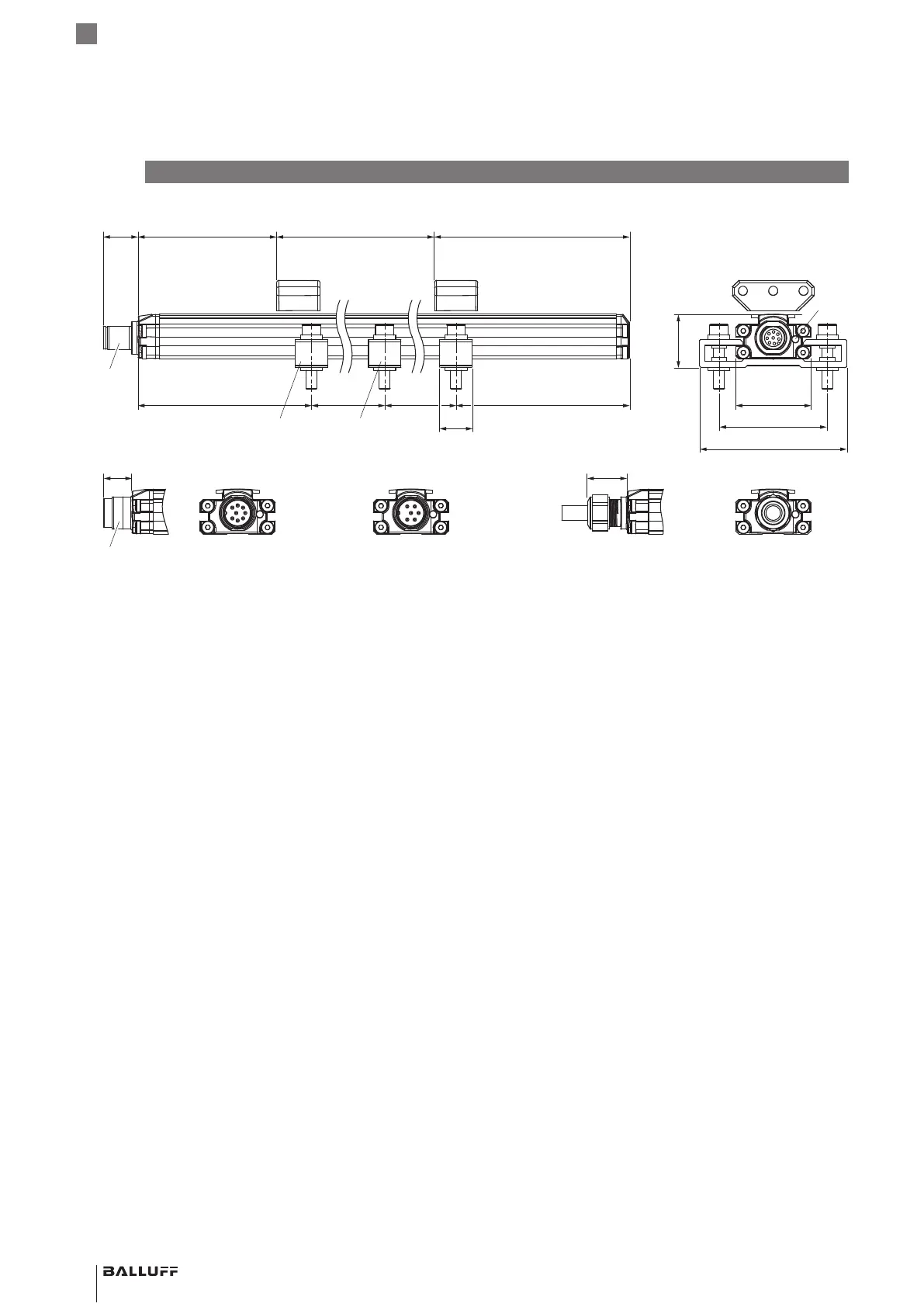

Fig. 4-1: Dimensions, design and function
BTL PF _ 400- _ _ _ _ -C15A _ _ _ _ - _ _ _ _ _ _
Magnetostrictive Linear Position Sensor – Profile Style
