3 Installation (cont.)
3.3 Captive magnets
Lateral forces are to be avoided
when using captive magnets
(
➥➥
➥➥
➥ Figs. 3-6 and 3-7). Connections
are required here which permit the
corresponding degree of freedom
with respect to the direction of
movement of the magnet along the

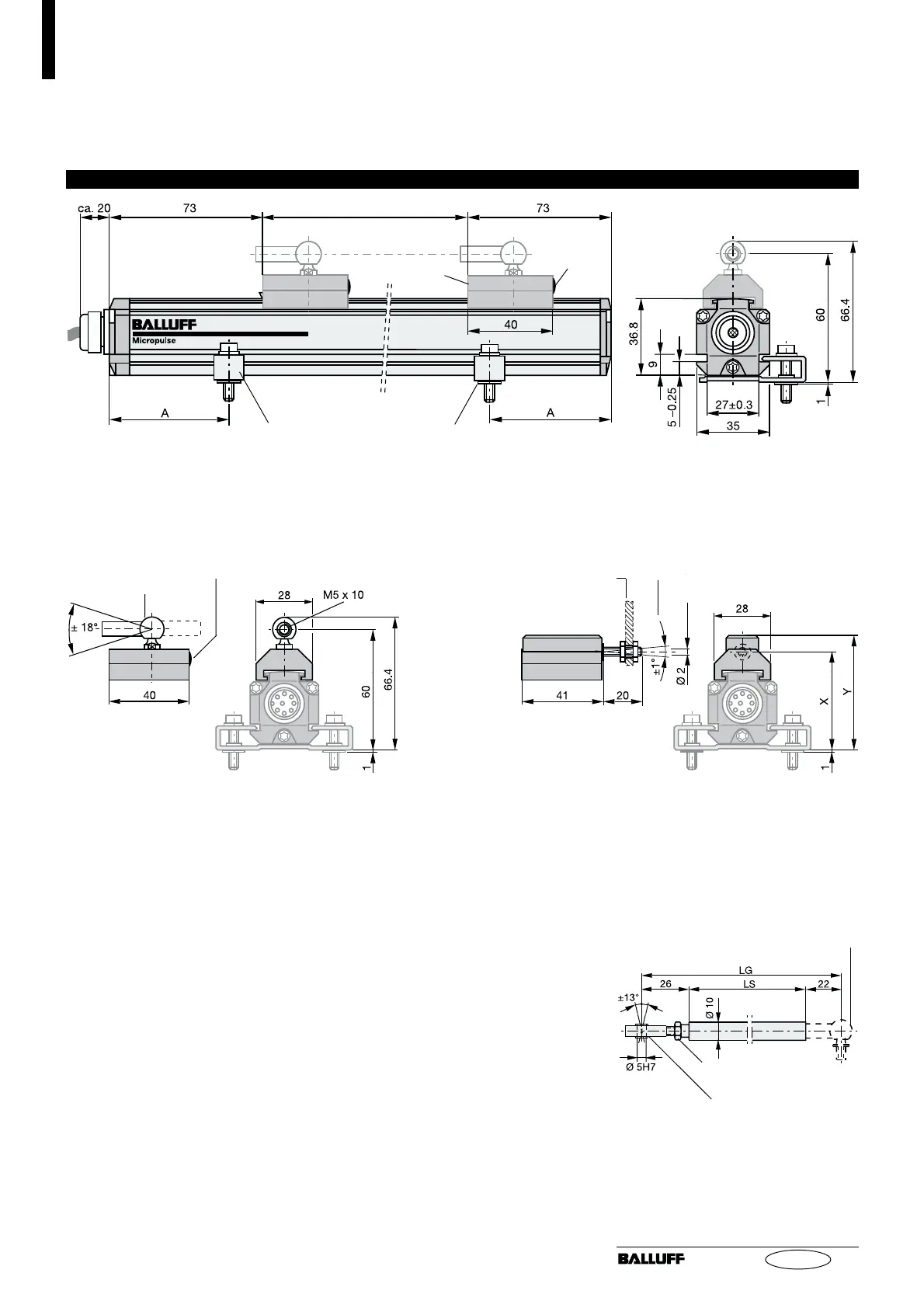

Fig. 3-5: Dimensional drawing (BTL5...P-KA transducer with captive magnet BTL5-F-2814-1S)
Mounting brackets with isolation bushings
and M5 x 22 cylinder head screws, DIN 912,
max. tightening torque 2 Nm
Nominal stroke
Black,
round
marking
Magnet
NL
Fig. 3-8: BTL2-GS10-_ _ _ _-A
connecting rod
Jam nut DIN 934 M5
Swivel eye DIN 648
Ball joint "B" DIN 71805, rotates hori-
zontally (part of BTL5-F-2814-1S)
Ball joint "B"
DIN 71805,
rotates horizontally
Black, round
marking
Fig. 3-6: BTL5-F-2814-1S magnet
Fig. 3-7: BTL5-M/N-2814-1S magnet
Mechanically joined to M5
stud using 2 nuts
Max. angle offset
Max. parallel offset
BTL5-M-2814-1S: X = 48.5 Y = 57
BTL5-N-2814-1S: X = 51 Y = 59.5
stroke range. It is assumed that the
BTL5-F-2814-1S magnet is con-
nected to the machine member
using a connecting rod. The
BTL2-GS10...A connecting rod
(
➥➥
➥➥
➥ Fig. 3-8) is available as an ac-
cessory (please indicate length LG
when ordering).
