mvBlueGEMINI Technical Manual (EN) v2.6
TECHNICAL DATA 14
7.2.2 LAN
Manufacturer
Binder
Description
x-coded flange receptacle
Number of contacts
8
Area
M12-D, M12-X
Order code
99 3782 210 08
Serien 825/876

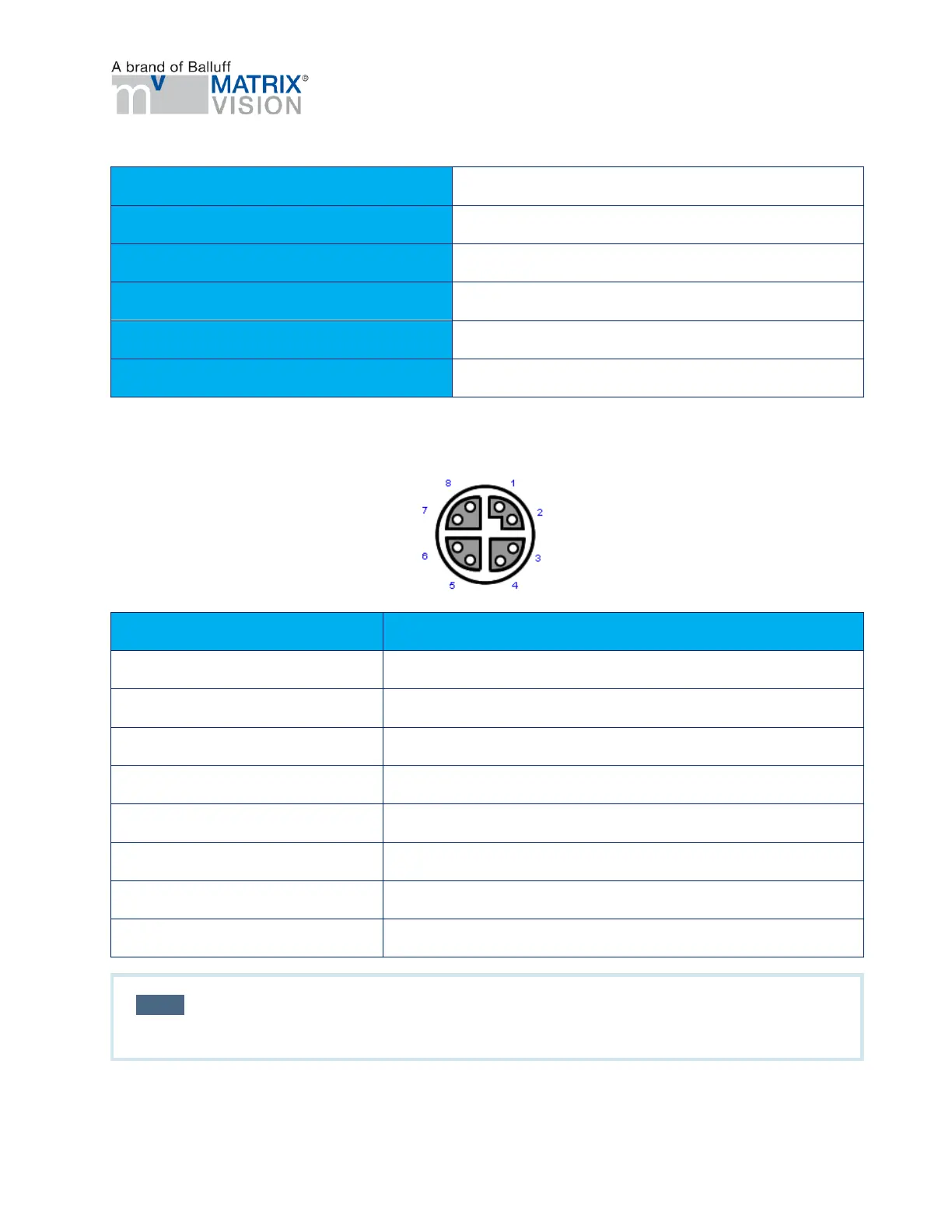

Figure 2 x-coded flange receptacle
Pin
Signal
1
MDX0+
2
MDX0-
3
MDX1+
4
MDX1-
5
MDX3+
6
MDX3-
7
MDX2-
8
MDX2+
NOTE
The Ethernet signals are galvanically isolated from the camera electronics.
