7.2 Connections
7.2.1 PWR/IO
Manufacturer
Binder
Description
Flanschstecker, M12 x 1, 10,5 mm
Number of contacts
12
Area
M12-A
Order code
09 3491 550 12
713/763

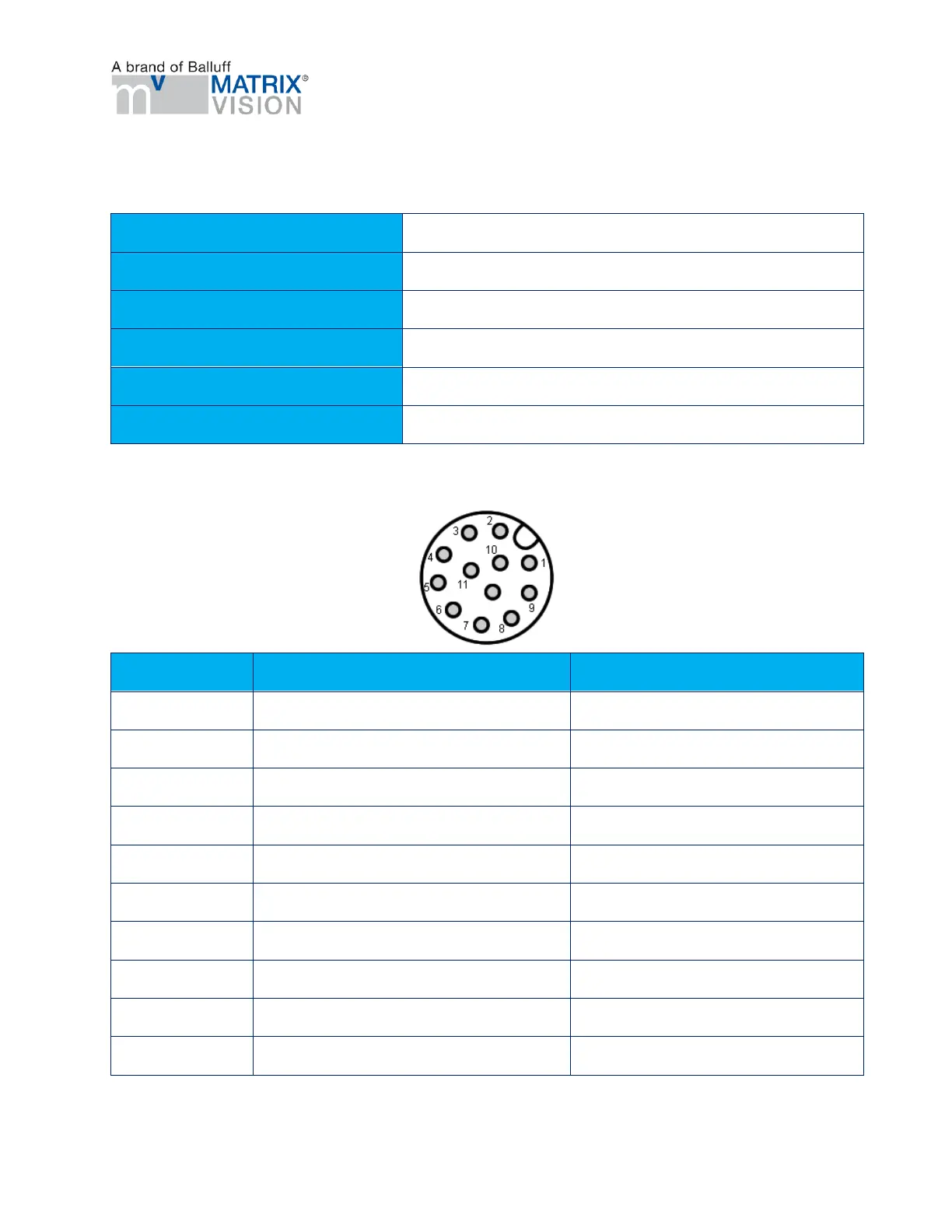

Figure 1 Power / IO connector
Pin
Signal
Color
1
VIN_L+
brown
2
VIN_L-
blue
3
RS232RX
white
4
RS232TX
green
5
SPSIO1
pink
6
SPSGND
yellow
7
SPSIO0
black
8
SPSIO2
gray
9
SPSIO3
red
10
SPSIO4
violet
