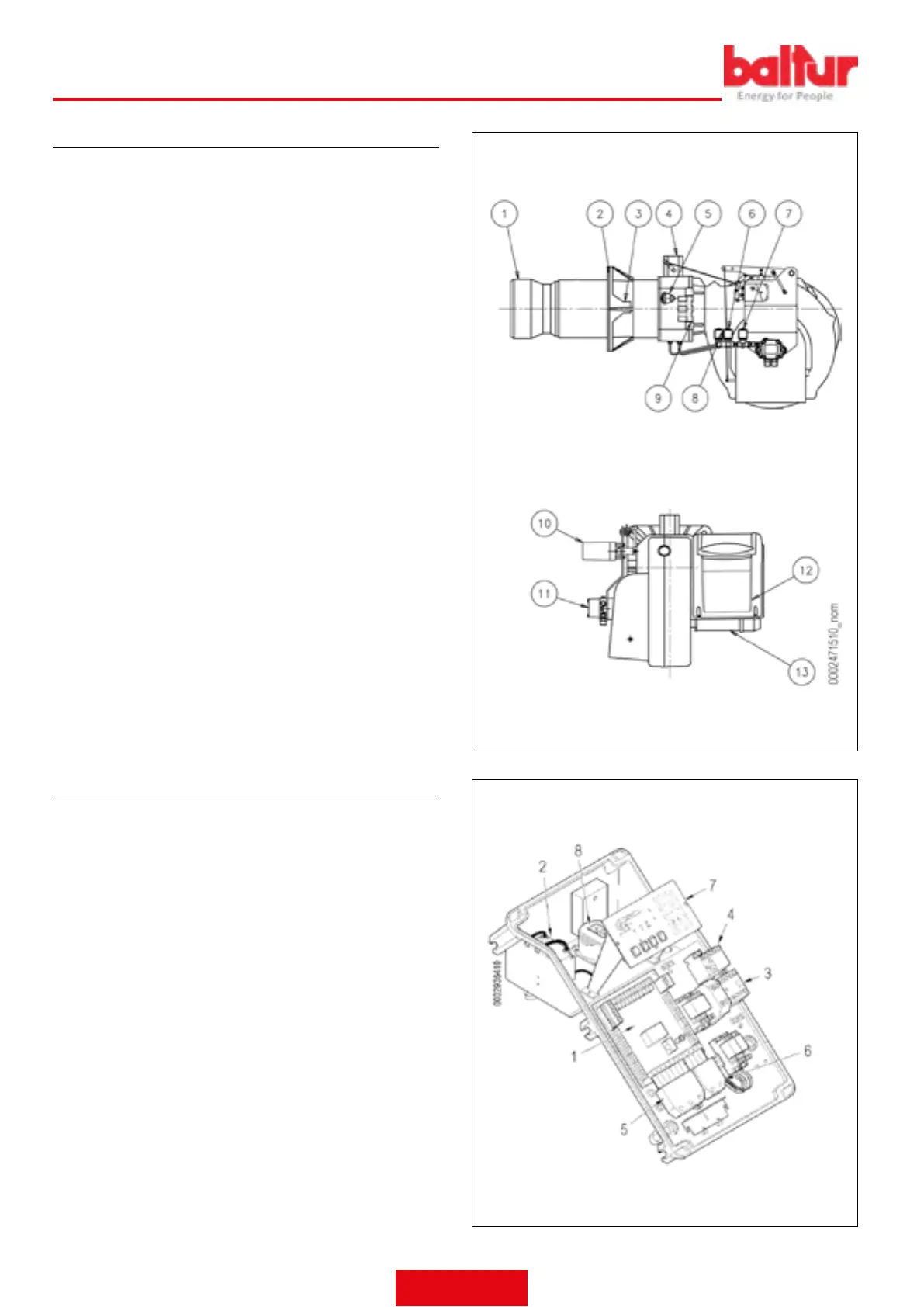

COMPONENT DESCRIPTION
1 Combustion head
2 Seal
3 Burner connection ange
4 Gas train connector ange
5 Combustion head adjustment device
6 2nd stage solenoid valve
7 Safety solenoid valve
8 1st stage solenoid valve
9 Hinge
10 Air/gas regulation servomotor
11 Liquid fuel pump
12 Electrical panel
13 Fan motor
ELECTRICAL PANEL
1 Control box
2 Ignition transformer
3 Motor contactor
4 Thermal relay
5 7-pole connector
6 4-pole connector
7 Synoptic panel
8 Air pressure switch
