FIRST PIPELINE FILLING UP
After checking that the protective caps on the pump ttings have been
removed, proceed as follows:
• Turn the switch on the burner to the “O” position to avoid the burner
automatic activation.
• Make sure that the line voltage coincides with the one indicated in
the burner's identication plate.
DANGER / ATTENTION
To positively determine the direction of rotation, wait until the
fan turns very slowly because it is quite easy to misinterpret the
direction of rotation.
• The fan rotation direction can be checked also by looking at the fan
through the inspection hole located on the back of the scroll.
• If it is necessary to reverse the rotation direction, reverse two phases
on the line input terminals (L1_L2_L3).
• To start up the motor, close the remote control switch manually by
pressing on the mobile part for a few seconds and watch the sense
of rotation of the fan.
• Detach, if already attached, the exible hoses from the intake and
return pipes.
• Dip the end of the exible intake hose in a tin containing either lu-
bricant or diesel (do not use low-viscosity products such as petrol,
kerosene, etc.).
• Now press key (9) on the control panel to start the motor and the
pump.
DANGER / ATTENTION
Pump operating at 2800 r.p.m. must not work dry otherwise they
will jam (seizure) within a very short time.
• Attach the exible hose to the intake pipe and open any gate valves
tted on this pipe and any other shut-off element on the fuel pipes.
• Press button (9) again to start up the pump that extracts the fuel
from the tank.
• When you see fuel coming out of the return line (not yet connected),
stop.
DANGER / ATTENTION
If the pipe is long, it may be necessary to bleed the air out throu-
gh the cap; if the pump is not tted with a cap, remove the pres-
sure gauge connector cap.
• Connect the exible return hose to the pipe and open any gate val-
ves tted on this pipe. The burner is now ready to start up.

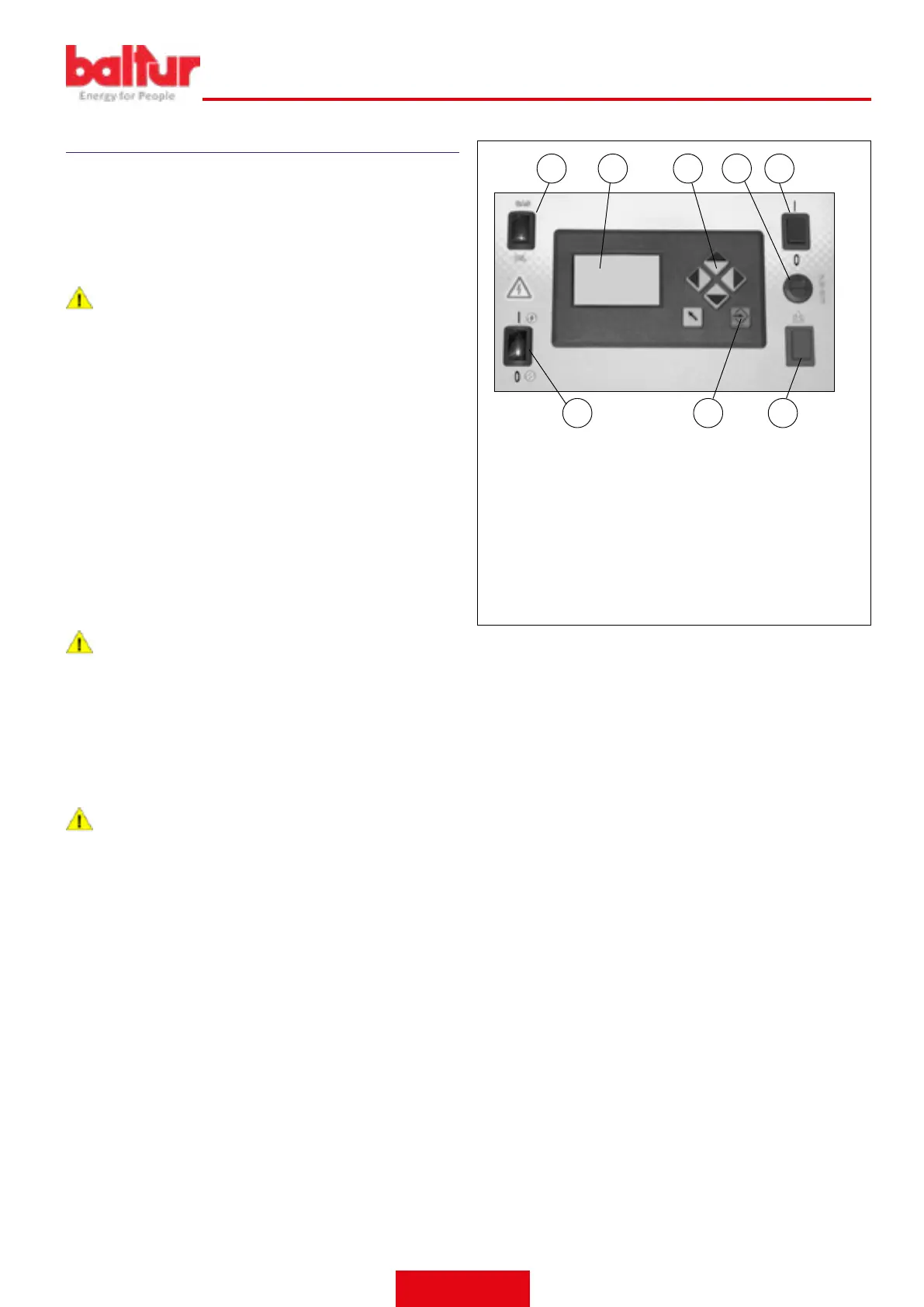

1
2
10 3
4 9
11
5
display_TBML_ME
1 ON / OFF main switch
2 Thermostatic line switch
3 Display
4 Unlock or RESET button
5 Fusibile.
9 Fuel loading button
10 Fuel selector switch
11 Programming keyboard
