MODEL 200 UC OPERATION

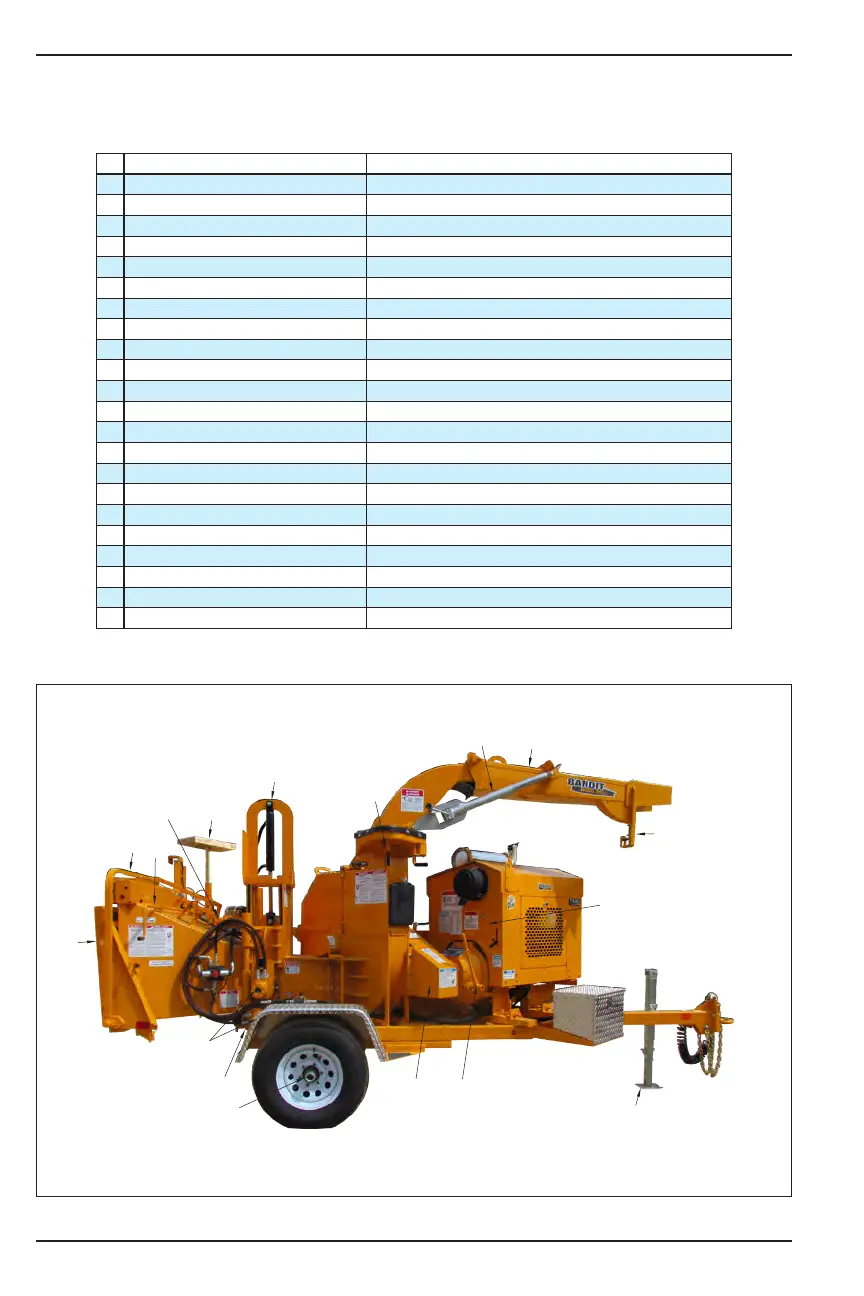

Basic Location of Controls and Components
CONTROLS
# Description Location
1
Foot Pad Jack Discharge end, on tongue
2
Clutch Handle Drive side, on engine
3
Chipper Belts / Pump Belts Drive side
4
Lug Nuts Drive side / Radiator side, on tires
5
Feedwheel Trap Door Below bottom feedwheel
6
Feedwheel Motor Coupler Drive side, on top and bottom yoke
7
Infeed Hopper Infeed hopper end
8
Folding Infeed Tray Infeed hopper end
9
Feedwheel Control Bar Infeed hopper end, around infeed hopper
10
Hydraulic Control Valves Infeed hopper end, on top of the infeed hopper
11
Yoke Lift Control Bar Infeed hopper end, on top of the infeed hopper
12
Wooden Push Paddle Radiator side, on the infeed hopper
13
Optional Yoke Lift Cylinder Infeed hopper end, above top yoke
14
Swivel Discharge Drive side
15
Adjustable Height Discharge Drive side
16
Discharge Chute Discharge end
17
Discharge Flipper Adjuster Discharge end, towards the end of the discharge
18
Autofeed Controls On engine
19
Engine Controls, Adjusters On engine
20
Electric Engine Throttle Adjuster On engine
21
“Bandit” Lever Throttle Adjuster On engine
22
Knives & Hardware On chipper disc (not shown)
1
17
16
13
12
10
9
8
6
4
5
3 2
11
15
14
18,19,20,21
