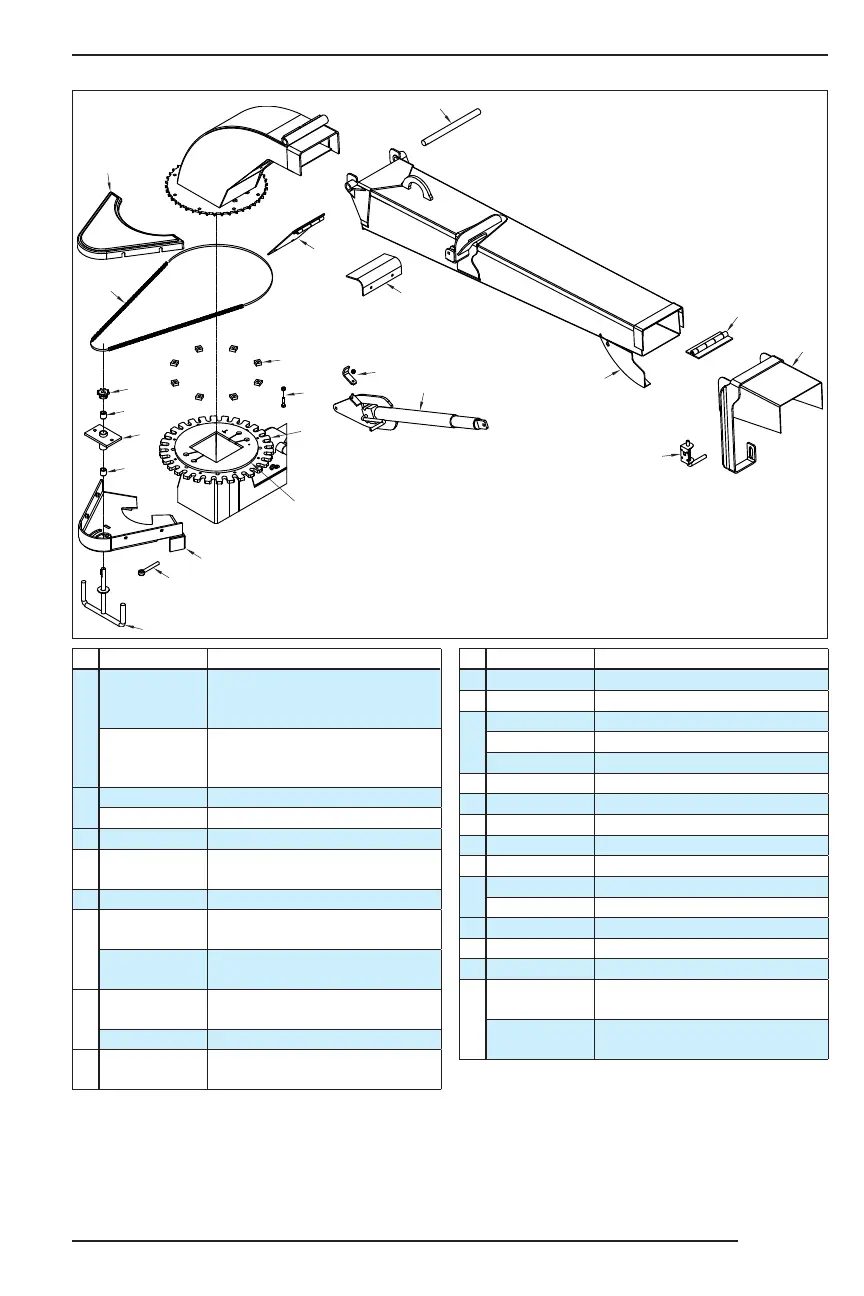

MODEL 200 UC REPLACEMENT PARTS
HEIGHT ADJUSTABLE HAND CRANK SWIVEL DISCHARGE
# Part Number Description
1
980-0510-86
Hand Crank for Adjustable
Height Discharge - Mounted on
the Drive Side
980-0508-51
Hand Crank for Adjustable
Height Discharge - Mounted
Underneath
2
955-300434 Handle Lock
900-4906-60 Handle Lock Nut - 3/8”-16NC
3
980-0126-12 Rubber Discharge Guard
4
980-300209
Hand Crank Adjustable Height
Hinge Pin
5
001-3004-19 Discharge Flipper Hinge
6
980-200077
12” Discharge Flipper
Assembly
980-0510-25
12” Enclosed Discharge Flipper
Assembly
7
900-4901-83
Discharge Flipper Adjusting
Spring
900-7900-93 Black Rubber Cap
8
980-2005-30
Adjusting Spring Lock Plate
Assembly for Flipper
# Part Number Description
9
911-300124 Clean Out Door
10
900-9904-64 Chain Guard
11
900-1901-20 #50 Roller Chain
900-1901-18 Half Link - Chain
900-1901-19 Master Link - Chain
12
900-1905-59 Sprocket for Swivel Discharge
13
900-1908-38 Bushing
14
980-200006 Chain Adjuster Assembly
15
980-2005-22 Discharge Swivel Mount
16
900-4905-43 Eye Bolt Adjuster
17
937-200064 T-Handle Assembly
900-7900-96 Rubber Cap
18
980-0137-35 Spacer Block
19
980-3013-58 Bottom Swivel Ring
20
980-300349 Hood Flange
21
900-4911-04
Discharge Transport Bolt - 5/8”-
11NC x 1 1/2”
900-4907-04
Discharge Transport Nut - 5/8”-
11NC
6
5
7
8
1
2
21
18
19
20
11
10
12
13
14
13
17
15
9
3
4
16
