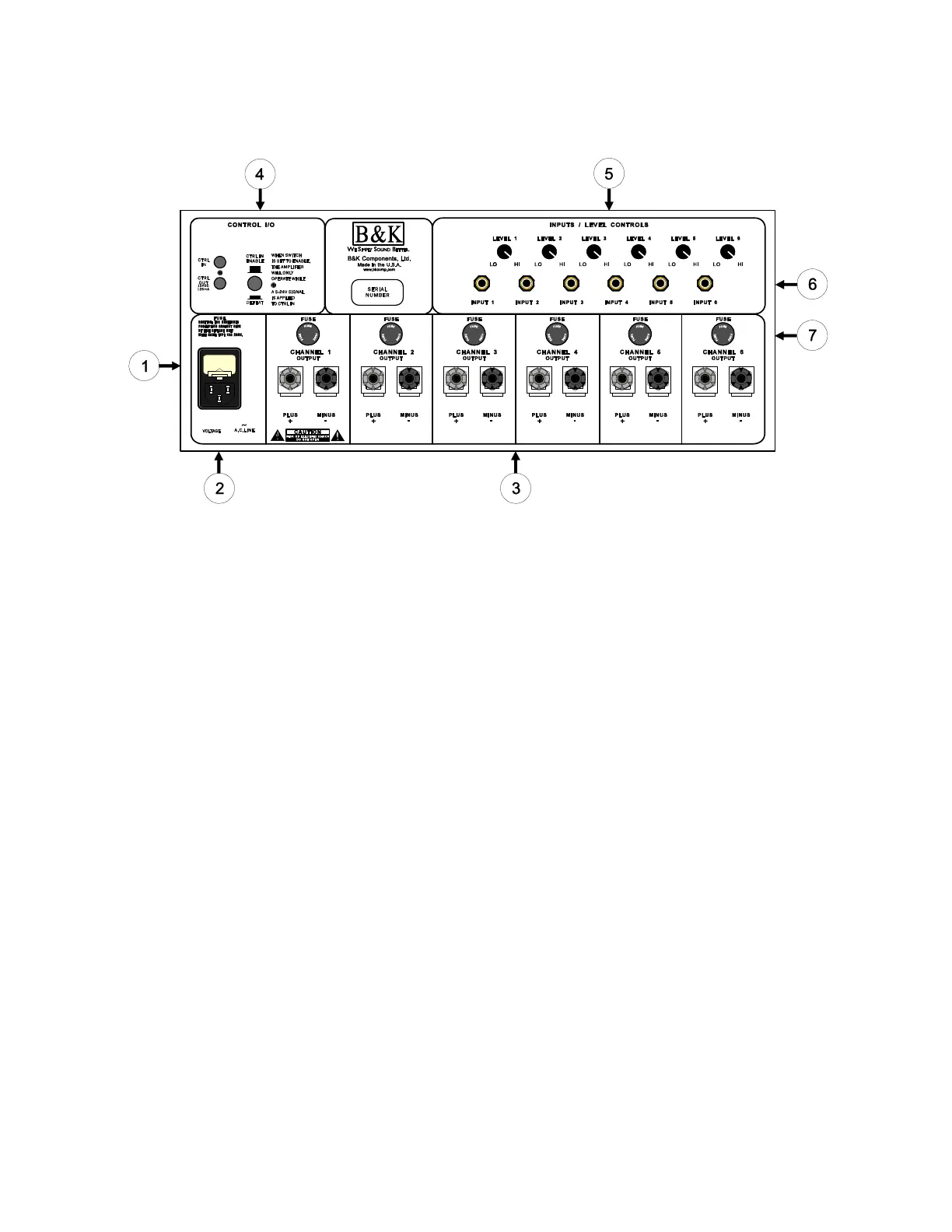

Rear Panel View
1. AC fuse holder 4. Amplifier control muting input/output
2. AC Input receptacle 5. Level controls
3. Speaker outputs 6. Inputs
7. Speaker fuses
Rear panel description
1. AC fuse holder - Holds the AC Line fuse. This fuse is a 15 Amp / 250 Volt
Slow Blow fuse. Replace with same type and value fuse only.
2. AC Input receptacle - For attaching the supplied AC power cord to the amplifier.
3. Speaker outputs - For connecting the speakers to the amplifier. Explained further
on page 6.
4. Amplifier control muting input/output -
To provide remote switching of mute on/off of the amplifier.
Explained further on pages (8 - 9).
5. Level controls - For adjusting the input level of each channel into the amplifier.
There are five/six level controls on the back of the amplifier.
One level control for each channel.
6. Inputs - For connecting signal patch cables (interconnects) from the
preamplifier to the amplifier to pass signal. Pages (5 - 6).
Page 4 P/N 13007 Rev.0004
